- Page 1 StorEdge Barcode Reader Instructions...
- Page 2 (including lost profits) in connection with the furnishing, performance or use of this material whether based on warranty, contract, or other legal theory. Sun, Sun Microsystems, and StorEdge are trademarks of Sun Microsystems Inc. All trademarks within this document are the property of their respective owners.
- Page 3 Contents Barcode Reader Instructions ..........1 Barcode Reader Kit Hardware .
- Page 4 Barcode Reader Installation...
-
Page 5: Tools Required

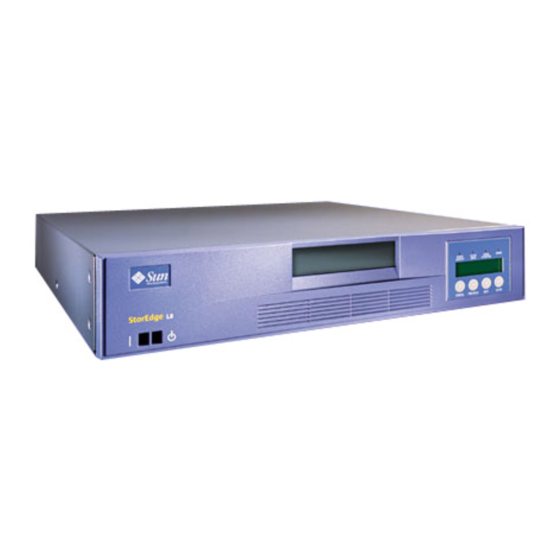

Barcode Reader Instructions A barcode reader enables your StorEdge™ L8 autoloader to read tape cartridge information contained in barcode labels attached to data cartridges. This barcode information becomes part of the application software’s library cartridge inventory. Barcode Reader Kit Hardware Table 1 shows the hardware provided with the Barcode Reader Kit. - Page 6 Figure 1 Installing a barcode reader To install a barcode reader 1. Power down your autoloader and remove the power cord from the outlet. 2. Locate the cover plate on the rear panel of the autoloader. Using a flat blade screwdriver, remove the cover plate.
- Page 7 The StorEdge L8 barcode reader is controlled solely through the host software. The Operator Panel of the StorEdge L8 does not change to reflect the addition of the barcode reader; however, the autoloader and host system will sense the presence of the barcode reader and enable the barcode read function on initial power up.
- Page 8 Figure 2 Removing a barcode reader To remove a barcode reader 1. Power down your autoloader and remove the power cord from the outlet. 2. Locate the barcode reader on the rear of the autoloader. Using a flat blade screwdriver, unscrew the two screws that secure the barcode reader to the autoloader.
- Page 10 6-00525-01...
