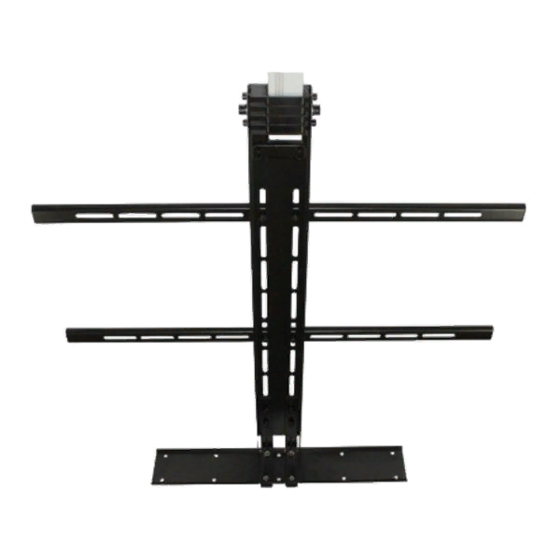

- Page 1 UTVL - 200 Series DROP DOWN TV LIFT www.firgelliauto.com sales@firgelliauto.com...
- Page 2 Caution www.firgelliauto.com sales@firgelliauto.com page 1...
- Page 3 Specifications Model FA-UTVL-200-30 FA-UTVL-200-40 FA-UTVL-200-50 Retracted Length 39 inches 49 inches 59 inches Stroke 30 inches 40 inches 50 inches Recommended TV Size up to 30” tall up to 40” tall up to 40” tall Input Voltage 110 volt AC / 60H Output Voltage 24 volt DC, Max 50 VA Input Current...
- Page 4 Components Drywall Bracket L Brackets T Bracket Small TV Brackets Long TV Support Arms 30” Long TV Support Arms 36” Track Linear Actuator Main Long Bracket Control Box Wireless Remote Limit Switch Rocker Switch Hardware Name Quantity Screws for Drywall Phillips Countersunk Screws M5 x 10 Flat Washer M6...
- Page 5 Assembly Instructions Attach the Small TV Brackets (4) to the back of Attach the Long TV Support Arms (2) to your television using the four M5 x 8 Phillips the Main Long Bracket using the four M8 Countersunk Screws. Please be aware that the sup- x 10 Hex Bolts.
- Page 6 Attach the “T”Bracket to the top end of the Track Actuator using the Clevis Pin and secure it with the Cotter Pin. The Track Actuator may now be mount- ed to your installation using the top “T”Bracket and the attached bracket at the bottom of the actuator.
- Page 7 Program the Wireless Remote by pressing and holding the reset button on the side of the Control Box. While the reset button is held press either the up or down button on the wireless remote The Wireless Remote can be used for once.
