Summary of Contents for Firgelli FA-TVL-180 Series

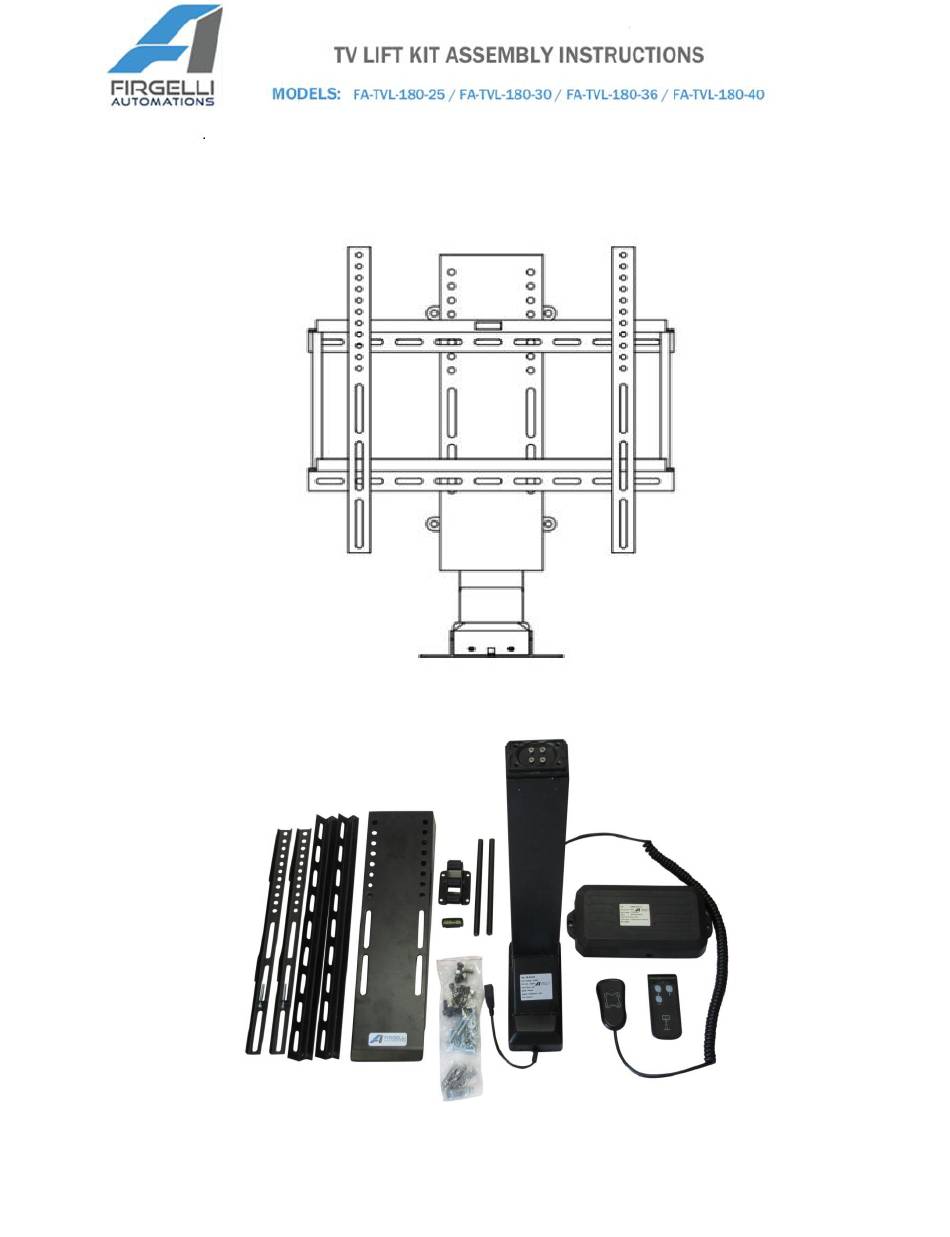

  • Page 1 FA-TVL-180 Series Pop-Up TV Lift...
  • Page 2: Tools Required

    4 Hex Bolts 4 Nuts 8 Spring Washers 8 Washers M5x50 M6x16 M6x14 M8x16 COMPONENTS Column Mounting Base Control Box Remote Mounting Bracket TV Mounting Bracket Handset Connection Cable / Power Cable Page | 2 Firgelli Automations Email: support@firgelliauto.com 1-866-226-0465 Ext. 2...
  • Page 3 Washers M6 Spring Washers M6 Hex Bolts M6x14 Screws M5x50 TV Mounting Bracket Nuts M8 Mounting Bracket Screws M6x16 Hex Bolts M8x16 Connection and Power Cable Remote Handset Control Box Page | 3 Firgelli Automations Email: support@firgelliauto.com 1-866-226-0465 Ext. 2...
  • Page 4 Optional tabs for wall mounting 2. Use 4 Hex Bolts M6x14, each with a Spring Washer and Washer, to attach the Mounting Bracket to the top of the Column. Tighten the 4 Bolts. Page | 4 Firgelli Automations Email: support@firgelliauto.com 1-866-226-0465 Ext. 2...
  • Page 5 TV’s and gives you flexibility to position the TV relative to the Lift however you prefer. Page | 5 Firgelli Automations Email: support@firgelliauto.com 1-866-226-0465 Ext. 2...
  • Page 6 4. Use 4 Hex Bolts M8x16, with 4 Nuts M8, to attach the TV Mounting Bracket to the Mounting Bracket. Tighten the 4 Bolts. The Mounting Bracket comes with different mounting positions to allow for different sized TV’s. Page | 6 Firgelli Automations Email: support@firgelliauto.com 1-866-226-0465 Ext. 2...
  • Page 7 5. Secure the other 2 long arms of the TV Mounting Bracket onto the back of the TV set with 4 screws included with the TV set. Then hang the TV set onto the TV Mounting Bracket as shown. Use 2 M5x50 screws to tighten on the bottom. Page | 7 Firgelli Automations Email: support@firgelliauto.com 1-866-226-0465 Ext. 2...
  • Page 8 (2) Wireless Remote: Press the COM and the S1 button to move the TV up. Press COM and S2 to move the TV down. To stop the TV while it is moving just push S1 or S2 again. Page | 8 Firgelli Automations Email: support@firgelliauto.com...
  • Page 9 TV will move down. Release the 2 buttons when the TV is in the new bottom position you want. Now the TV will only move between the new top and bottom positions. Page | 9 Firgelli Automations Email: support@firgelliauto.com...
  • Page 10 RESET button and that the LED light on the Handset is blinking. When the RESET is finished, the LED will turn off. You can operate the system now. Page | 10 Firgelli Automations Email: support@firgelliauto.com 1-866-226-0465 Ext. 2...
  • Page 11: Specifications

    0.87”/second (with load) Lifting Speed Duty Cycle 10%, max 2 min. continuous use Operating +5° C - +40° C Temperature Overload Protection Built-In Material Powder Coated Steel Additional Feature Adjustable Height Page | 11 Firgelli Automations Email: support@firgelliauto.com 1-866-226-0465 Ext. 2...

This manual is also suitable for:

Fa-tvl-180-25Fa-tvl-180-30Fa-tvl-180-36Fa-tvl-180-40
