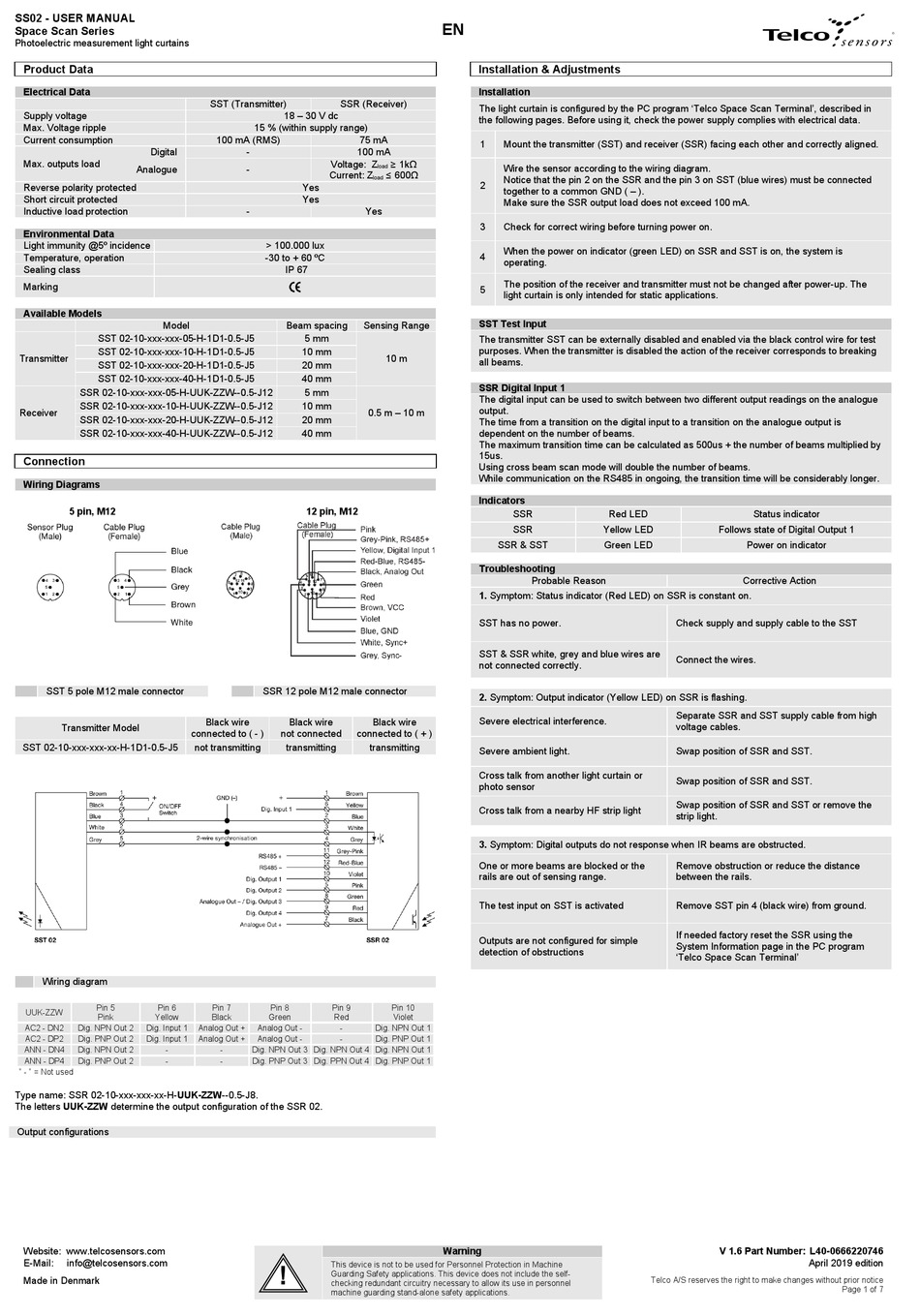

Telco Sensors Space Scan SS02 Series User Manual

SS02 - USER MANUAL
Space Scan Series
Photoelectric measurement light curtains
Product Data
Electrical Data
Supply voltage
Max. Voltage ripple
Current consumption
Digital
Max. outputs load
Analogue
Reverse polarity protected
Short circuit protected
Inductive load protection
Environmental Data
Light immunity @5º incidence
Temperature, operation
Sealing class
Marking
Available Models
Model
SST 02-10-xxx-xxx-05-H-1D1-0.5-J5
SST 02-10-xxx-xxx-10-H-1D1-0.5-J5
Transmitter
SST 02-10-xxx-xxx-20-H-1D1-0.5-J5
SST 02-10-xxx-xxx-40-H-1D1-0.5-J5
SSR 02-10-xxx-xxx-05-H-UUK-ZZW--0.5-J12
SSR 02-10-xxx-xxx-10-H-UUK-ZZW--0.5-J12
Receiver
SSR 02-10-xxx-xxx-20-H-UUK-ZZW--0.5-J12
SSR 02-10-xxx-xxx-40-H-UUK-ZZW--0.5-J12
Connection
Wiring Diagrams
5 pin, M12
SST 5 pole M12 male connector
Transmitter Model
SST 02-10-xxx-xxx-xx-H-1D1-0.5-J5
Wiring diagram
Pin 5 Pin 6
UUK-ZZW
Pink Yellow
AC2 - DN2 Dig. NPN Out 2 Dig. Input 1
AC2 - DP2 Dig. PNP Out 2 Dig. Input 1
ANN - DN4 Dig. NPN Out 2 -
ANN - DP4 Dig. PNP Out 2 -
" - " = Not used
Type name: SSR 02-10-xxx-xxx-xx-H-UUK-ZZW--0.5-J8.
The letters UUK-ZZW determine the output configuration of the SSR 02.
Output configurations
Website: www.telcosensors.com
E-Mail: info@telcosensors.com
Made in Denmark
SST (Transmitter) SSR (Receiver)
18 – 30 V dc
15 % (within supply range)
100 mA (RMS) 75 mA
- 100 mA
Voltage: Z
-
Current: Z
Yes
Yes
-
> 100.000 lux
-30 to + 60 ºC
IP 67
Beam spacing Sensing Range
5 mm
10 mm
20 mm
40 mm
5 mm
10 mm
20 mm
40 mm
12 pin, M12
SSR 12 pole M12 male connector
Black wire Black wire
connected to ( - ) not connected connected to ( + )
not transmitting transmitting
Pin 7 Pin 8 Pin 9
Black Green Red
Analog Out + Analog Out - -
Analog Out + Analog Out - -
- Dig. NPN Out 3 Dig. NPN Out 4 Dig. NPN Out 1
- Dig. PNP Out 3 Dig. PPN Out 4 Dig. PNP Out 1
!
This device is not to be used for Personnel Protection in Machine
Guarding Safety applications. This device does not include the self-
checking redundant circuitry necessary to allow its use in personnel
machine guarding stand-alone safety applications.
EN
Installation & Adjustments
Installation
The light curtain is configured by the PC program 'Telco Space Scan Terminal', described in
the following pages. Before using it, check the power supply complies with electrical data.
1 Mount the transmitter (SST) and receiver (SSR) facing each other and correctly aligned.
≥ 1kΩ
Wire the sensor according to the wiring diagram.
load
≤ 600Ω
load Notice that the pin 2 on the SSR and the pin 3 on SST (blue wires) must be connected
2
together to a common GND ( – ).
Make sure the SSR output load does not exceed 100 mA.
Yes
3 Check for correct wiring before turning power on.
When the power on indicator (green LED) on SSR and SST is on, the system is
4
operating.
The position of the receiver and transmitter must not be changed after power-up. The
5
light curtain is only intended for static applications.
SST Test Input
The transmitter SST can be externally disabled and enabled via the black control wire for test
purposes. When the transmitter is disabled the action of the receiver corresponds to breaking
10 m
all beams.
SSR Digital Input 1
The digital input can be used to switch between two different output readings on the analogue
output.
0.5 m – 10 m
The time from a transition on the digital input to a transition on the analogue output is
dependent on the number of beams.
The maximum transition time can be calculated as 500us + the number of beams multiplied by
15us.
Using cross beam scan mode will double the number of beams.
While communication on the RS485 in ongoing, the transition time will be considerably longer.
Indicators
SSR
SSR
SSR & SST
Troubleshooting
Probable Reason
1. Symptom: Status indicator (Red LED) on SSR is constant on.
SST has no power.
SST & SSR white, grey and blue wires are
not connected correctly.
2. Symptom: Output indicator (Yellow LED) on SSR is flashing.
Severe electrical interference.
Black wire
transmitting
Severe ambient light.
Cross talk from another light curtain or
photo sensor
Cross talk from a nearby HF strip light
3. Symptom: Digital outputs do not response when IR beams are obstructed.
One or more beams are blocked or the
rails are out of sensing range.
The test input on SST is activated
Outputs are not configured for simple
detection of obstructions
Pin 10
Violet
Dig. NPN Out 1
Dig. PNP Out 1
Warning
tel
Red LED Status indicator
Yellow LED Follows state of Digital Output 1
Green LED Power on indicator
Corrective Action
Check supply and supply cable to the SST
Connect the wires.
Separate SSR and SST supply cable from high
voltage cables.
Swap position of SSR and SST.
Swap position of SSR and SST.
Swap position of SSR and SST or remove the
strip light.
Remove obstruction or reduce the distance
between the rails.
Remove SST pin 4 (black wire) from ground.
If needed factory reset the SSR using the
System Information page in the PC program
'Telco Space Scan Terminal'
V 1.6 Part Number: L40-0666220746
Telco A/S reserves the right to make changes without prior notice
April 2019 edition
Page 1 of 7
