COMMUNICATIONS-APPLIED TECHNOLOGY
11250-14 Roger Bacon Drive
Reston, VA 20190
Voice: 800-229-3925
Support: Techsupport@c-at.com
Revision A
1/2013
Setup and Operating Procedures
ICRI-2PE
and ICRI-2PED
™
™
Incident Commanders' Radio Interface
™

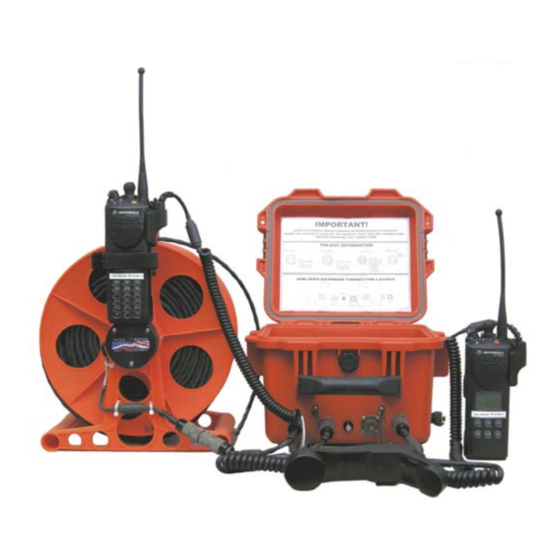

ICRI-2PE
ICRI-2PED
A Rapidly Deployable, Radio Interoperability Solution
for U.S. Navy Fire Service Personnel
MANUFACTURED BY
COMMUNICATIONS-APPLIED TECHNOLOGY CO., INC.
RESTON, VA.
CAGE CODE: 0EEY2
http://www.c-at.com
If you have any questions, please contact:
C-AT TECHNICAL SUPPORT at 800-229-3925 x23 (voice) 703-471-4428 (fax), or
e-mail to
techsupport@c-at.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICRI-2PE and is the answer not in the manual?

Questions and answers

Related Manuals for COMMUNICATIONS-APPLIED TECHNOLOGY ICRI-2PE

Summary of Contents for COMMUNICATIONS-APPLIED TECHNOLOGY ICRI-2PE

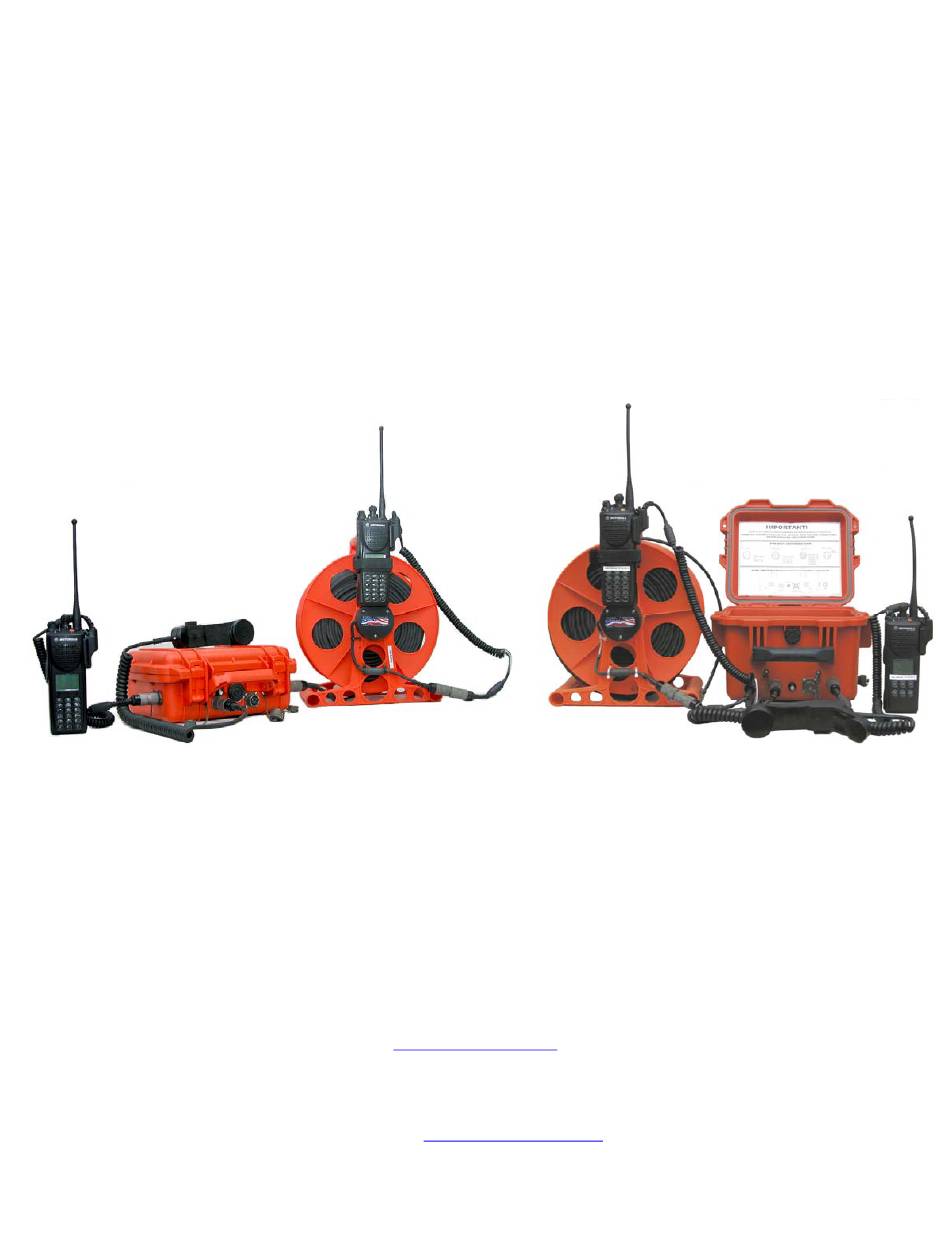

  • Page 1 ICRI-2PE ICRI-2PED A Rapidly Deployable, Radio Interoperability Solution for U.S. Navy Fire Service Personnel MANUFACTURED BY COMMUNICATIONS-APPLIED TECHNOLOGY CO., INC. RESTON, VA. CAGE CODE: 0EEY2 http://www.c-at.com If you have any questions, please contact: C-AT TECHNICAL SUPPORT at 800-229-3925 x23 (voice) 703-471-4428 (fax), or e-mail to techsupport@c-at.com...
