- Page 1 Installation and operating instructions The showerhead and hose supplied with this product are an integral part of the safety of your shower. Failure to use genuine Triton parts may cause injury and will invalidate your warranty 2180926B - January 2016...
-
Page 2: Table Of Contents
Flow rates ..................11 Guarantee, service policy, etc...........rear cover nstallers please note these InstructIons are to be left wIth the user To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone:... -

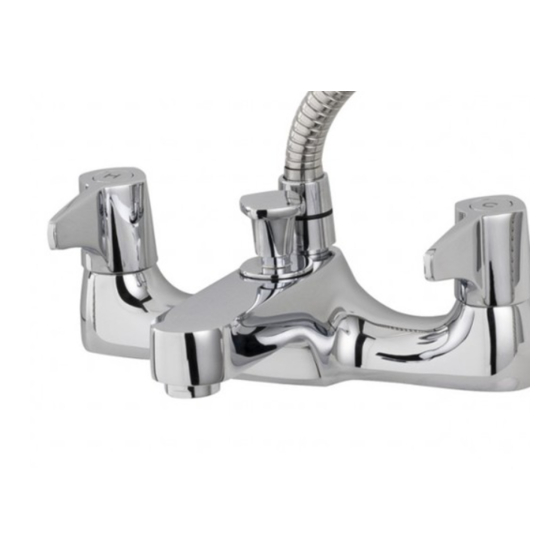

Page 3: Main Components
bath shower mixer MAIN COMPONENTS Fig.1 Fig 1. Manual bath shower mixer All dimensions listed in this fitting book regarding the product and installation are approximate. *All kits are for illustration purposes only and are not supplied unless otherwise stated. -
Page 4: Introduction
8 litres per minute should be available to both of either supply. inlets. Replacement parts can be ordered from Triton Customer Service. See ‘spare parts’ for details and part numbers. - Page 5 (above 200-ppm temporary hardness), a scale inhibitor may DO NOT solder fittings near the mixer unit have to be fitted. For advice on the Triton as heat can transfer along the pipework and scale inhibitor, please contact Customer damage the mixer valve.
-
Page 6: Typical Domestic Installations
bath shower mixer Domestic gravity fed systems *Fig.2 *Fig.2 (diagrammatic view – not to scale) (diagrammatic view – not to scale) (fig.2) Stop valve The shower control MUST be fed from a cold Cold water Cold supply water cistern and hot water cylinder providing cistern nominally equal pressures. - Page 7 bath shower mixer Instantaneous gas-heated systems, *Fig.4 (diagrammatic view – not to scale) e.g. combination boilers (fig.4) The shower control MUST be installed with a multi-point gas water heater or combination boiler of a fully modulating design (i.e. to maintain relatively stable hot water temperatures).
- Page 8 bath shower mixer Mains pressurised thermal store systems ( fig.5) *Fig.5 (diagrammatic view – not to scale) Packages of this type, fitted with a tempering valve (blender valve) can be used. An expansion vessel MUST be fitted, and regularly maintained, to ensure, the unit, is not damaged by excess pressures.
-
Page 9: Preparing The Mixer Valve
bath shower mixer INSTALLATION *Fig.6 (diagrammatic view – not to scale) PREPARING THE MIXER VALVE Check the contents to make sure all parts are present. Before starting the mixer installation, make sure all the openings on the valve are carefully covered to stop ingress of any debris, etc. -
Page 10: Operating The Shower
bath shower mixer OPERATING THE BATH SHOWER MIXER Fig.13 To start the bath shower mixer rotate either Pull up or both the hot (clockwise for flow) and cold and rotate (anti-clockwise for flow) controls, adjusting each in either individually to achieve the desired showering direction temperature. -
Page 11: Dimentions
bath shower mixer DIMENSIONS All dimensions listed in this fitting book regarding the product and installation are approximate. -
Page 12: Spare Parts
bath shower mixer SPARE PARTS Ref. Description Part No. Knob Set ........86004510 Flow Cartridge LH ....83315840 Flow Cartridge RH ....83316040 Trim and Screw Pack ....83315970... -
Page 13: Flow Rates
bath shower mixer Flow Rates 9 15 18 21 23 33 42 49 55 61 Shower Flow Rate (l/m) Bath Flow Rate (l/m) 15.0 22.5 25.0 31.5 38.0 55.5 73.5 91.5 93.5 93.5 Pressure (bar) 0.1 0.2 0.4 0.5 1.0 2.0 3.0 4.0 5.0 Bath Flow Rate (l/m 15.0 22.5... - Page 14 bath shower mixer...
- Page 15 bath shower mixer...
- Page 16 Fax: 02476 324504 Triton Road Nuneaton Warwickshire CV11 4NR www.tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited E-mail: serviceenquiries@tritonshowers.co.uk TRITON reserve the right to change product specification without prior notice. E&OE. © TRITON SHOWERS 2015 12-01-2015 - 5 yr mix...
