Simply Automated UMI User Instructions

Input/Output Module
FUNCTION
The Input/Output Module, model UMI, can be used to control UPB
devices using a low-voltage trigger input (e.g., a contact closure,
voltage, current, doorbell, telephone ring, etc.), and to activate
low-voltage outputs based on UPB commands. The module
accepts up to 3 inputs and 2 outputs. For safety reasons, you
should not connect voltages higher than 30VAC (42VDC) to the
input/output terminals, because doing so can present a shock
hazard.
INSTALLATION
The Input/Output Module is designed for indoor use with devices
that plug into a power outlet. To install the UMI module:

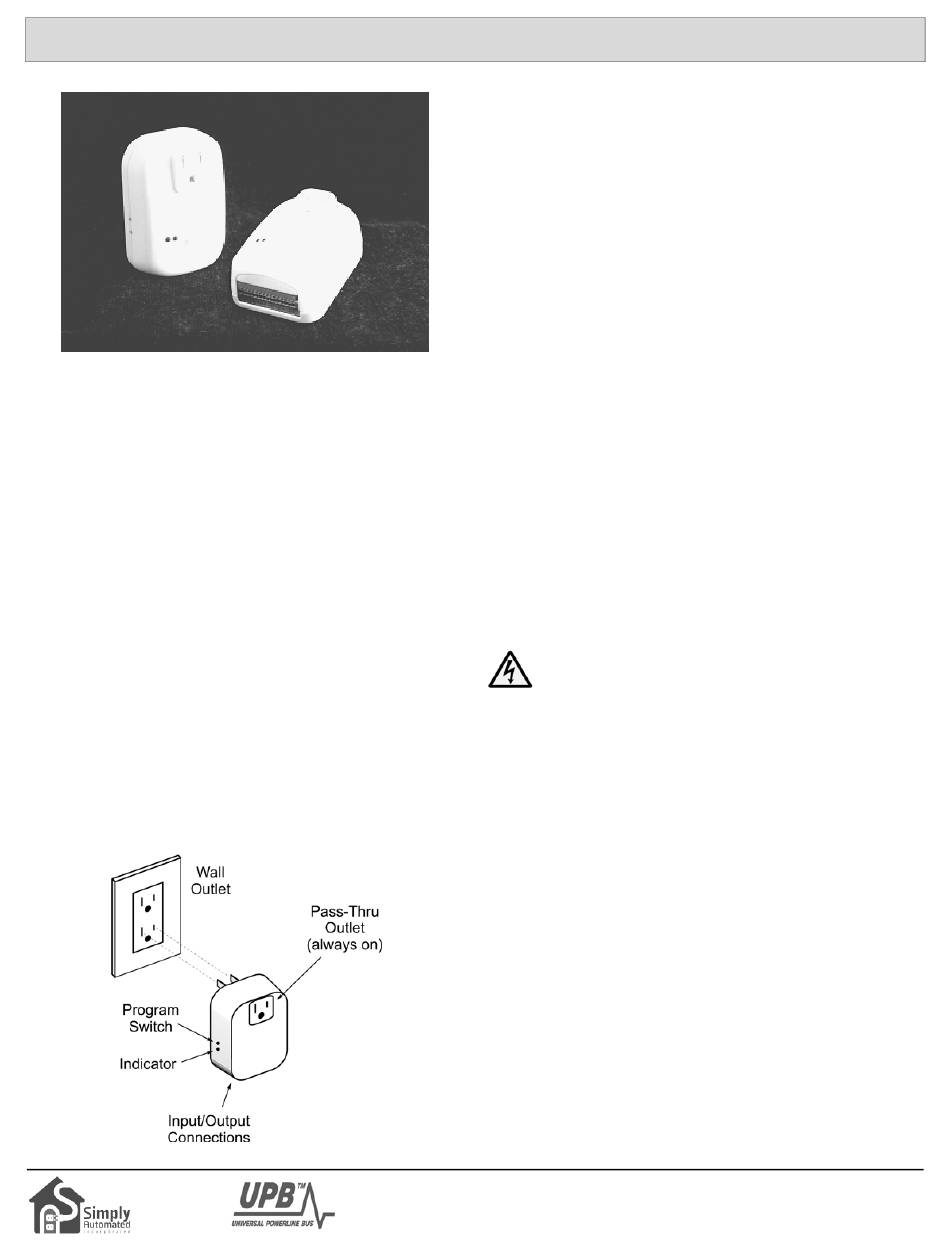

1. Locate a wall outlet near the wiring to be connected. Plug
the UMI module into the wall outlet (see illustration below).
2. Connect wires from the item(s) to be monitored/controlled to
the terminal block located on the bottom of the module.
See reverse side for examples of applications and proper
wiring diagrams. To make connections, use a small tool to
depress the orange release lever above the wire hole until
the wire can be inserted or removed.
3. If desired, another device can be plugged into the socket on
the front of the module, which is always powered.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If product comes into contact with
water or other liquid, unplug immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors.
5. Do not use this product for other than its intended use.
6. Do not connect multiple lamps or appliances that, when
combined, exceed the maximum load ratings of the product.
7. To avoid risk of fire, burns, personal injury and electric shock,
install this product out of reach of small children.
8. Do not cover the product with any material when in use.
9. This product uses polarized plugs and sockets (one blade is
wider than the other) to reduce the risk of electric shock.
These plugs and sockets fit only one way. If they do not fit,
consult a technician. Do not use with an extension cord
unless plugs can be fully inserted. Do not alter plugs.
10. SAVE THESE INSTRUCTIONS.
CONFIGURATION
1. To configure the UMI and assign it to one or more controllers,
please refer to instructions for the controller.
2. When configuring a UPB system, it may be necessary to
place the UMI in SETUP mode. To do this, press the
Program Switch (see illustration) five times rapidly using a
non-metallic toothpick. The indicator will continuously blink
GREEN when the unit is in SETUP mode. To exit SETUP
mode, press the Program Switch once or wait five minutes.
CAUTION: Do not insert metal objects into the module
while it is connected to power.
OPERATION
Inputs applied to the UMI module can be set to activate or
deactivate other UPB devices or scenes based on either the
presence or absence of the input, or both. When the input is
applied, the corresponding INPUT indicator will glow GREEN.
Outputs operate according to commands sent by a controller or
UPB device. When the output is ON, the corresponding OUTPUT
indicator will glow GREEN. Note that outputs can only be
activated via UPB commands, and not via inputs within the same
module.
UPB FACTORY DEFAULT SETTINGS
To restore the following default settings, place the UMI in SETUP
mode and then press the Program Switch ten times. The
indicator will flash RED. Press the switch twice to exit this mode.
Network Name "Network 1"
Room Name "New Room Name"
Device Name "New CM01"
Unit ID 40
Network ID 255
Network Password 1234
