Setup of the CAT interface

The MDSR software controls the transceiver via the CAT port. The
connector cable CI-V is the Icom version of the interface cable that plugs
into the back of the radio and the RS-232 port of the computer. There are
also virtual RS-232 cables available that connect via the USB bus to the
computer.

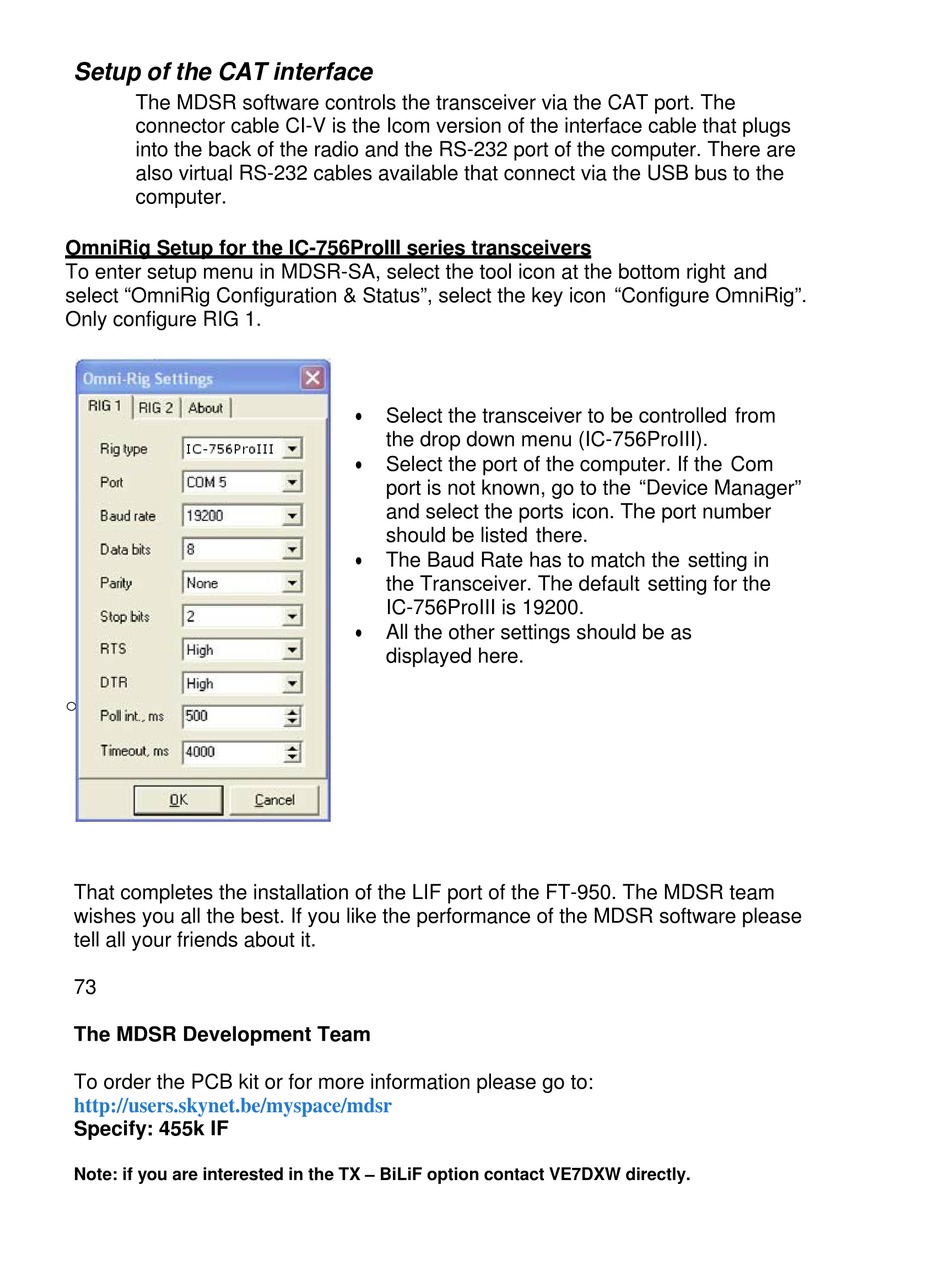

OmniRig Setup for the IC-756ProIII series transceivers

To enter setup menu in MDSR-SA, select the tool icon at the bottom right and
select "OmniRig Configuration & Status", select the key icon "Configure OmniRig".
Only configure RIG 1.
o
That completes the installation of the LIF port of the FT-950. The MDSR team
wishes you all the best. If you like the performance of the MDSR software please
tell all your friends about it.
73
The MDSR Development Team
To order the PCB kit or for more information please go to:
http://users.skynet.be/myspace/mdsr
Specify: 455k IF
Note: if you are interested in the TX – BiLiF option contact VE7DXW directly.

Select the transceiver to be controlled from
the drop down menu (IC-756ProIII).

Select the port of the computer. If the Com
port is not known, go to the "Device Manager"
and select the ports icon. The port number
should be listed there.

The Baud Rate has to match the setting in
the Transceiver. The default setting for the
IC-756ProIII is 19200.

All the other settings should be as
displayed here.
