- Page 1 ASSEMBLY INSTRUCTIONS Platforms Stationary, Rolling INSTRUCCIONES DE MONTAJE Bases de Plataformas Inmóvil, Rodante INSTRUCTIONS D’ASSEMBLÉE Bases de Plate-forme Immobile, Roulante...
- Page 2 Assembly Instructions Overview Please read this brief overview before assembling your Hercke Series 7even system. What follows is an outline of the order in which your assembly process needs to occur. A Phillips head N0. 2 screwdriver is the only tool required to assemble Hercke ®...

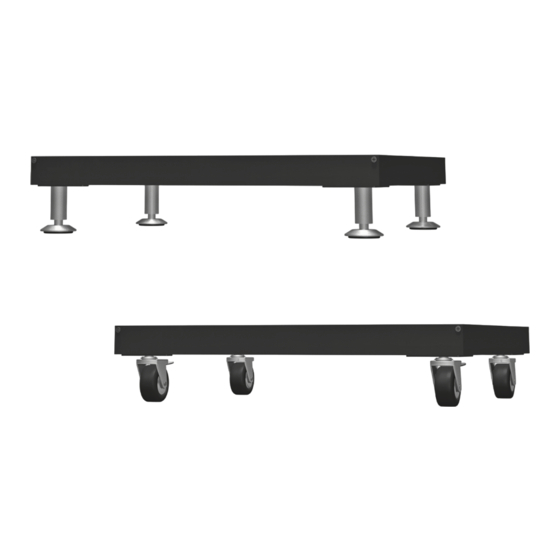

- Page 3 PARTS ADJUSTABLE STATIONARY PLATFORM x8pcs x1pcs x4pcs x4pcs x4pcs Rod Screw Platform Frame Legs Leg Screws 5/16” Split 1/4”-20 x 3/4” 5/16”-18 x 3/4” Lock Washer #2 Phillips Pan Head #2 Phillips Pan Head Machine Screw Machine Screw A Assemble legs B Fasten legs to platform frame using parts...
- Page 4 E-Clips to secure cabinets to the platform.) www.hercke.com | 866.767.3905 ext.16 Please visit www.hercke.com to download these instructions in your preferred language. © Copyright 2008 Hercke International. All rights reserved. Hercke®, Series 7even®, System 7even.1®, System 7even.2®, and System 7even.3® are registered trademarks of Hercke International.
