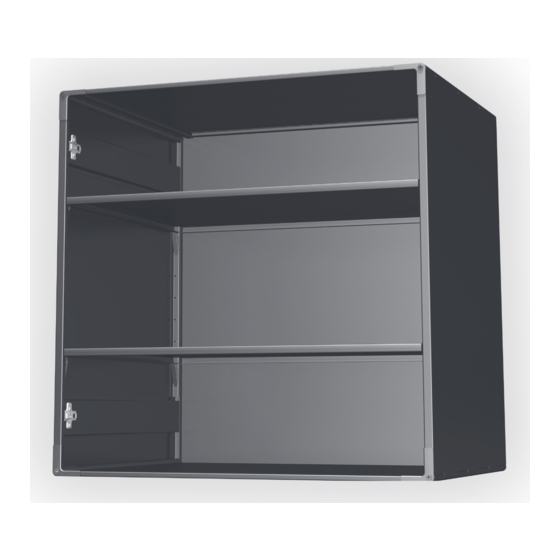

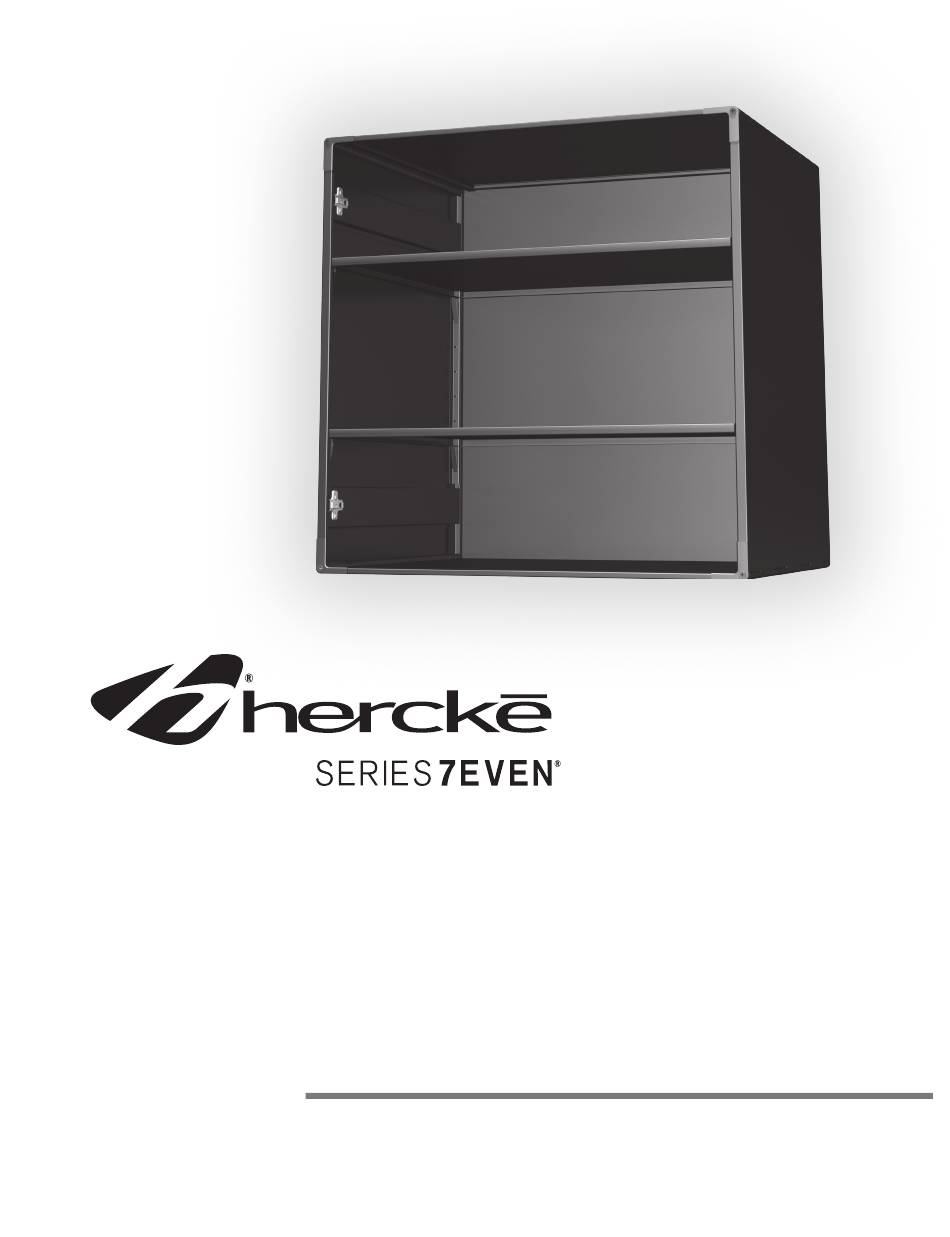

- Page 1 ASSEMBLY INSTRUCTIONS Storage Cabinet Case 24”, 30”, 54”...
- Page 2 Assembly Instructions Overview Please read this brief overview before assembling your Hercke Series 7even system. What follows is an outline of the order in which your assembly process needs to occur. A Phillips head N0. 2 screwdriver is the only tool required to assemble Hercke ®...
- Page 3 PARTS x1pcs x2pcs x1pcs Back Panel Side Panels Top Panel (Different from bottom) x1pcs x1pcs* x4pcs x1pcs Bottom Panel Adjustable Shelf Case Rod Hang Rod (Has lock latch slot) (54” case only) *(x1 for 24”, x2 for 30”, x3 for 54”) x4pcs x4pcs x8pcs...
- Page 4 A Tip assembled case front (front arrows) side down. B Insert Back Panel under both the top and bottom metal tabs as demonstrated below. Once the Back Panel is inserted pull the piece through slightly upward. C Align holes in Back Panel with holes on cabinet case Panels and Case Rods.
- Page 5 A Insert Shelf Clip into the inside of case at desired shelf height. B Place adjustable shelf into case, making sure it is firmly supported by the shelf clips. Place hanging rod into case and secure into slot as illustrated below. 54” case only. A Before attaching doors fasten Single E-Clips and Double E-Clip which will link vertically and horizontally...
- Page 6 | 855.344.2009 Please visit www.hercke.com for more information. © Copyright 2008 Hercke International. All rights reserved. Hercke®, Series 7even®, System 7even.1®, System 7even.2®, and System 7even.3® are registered trademarks of Hercke International.
