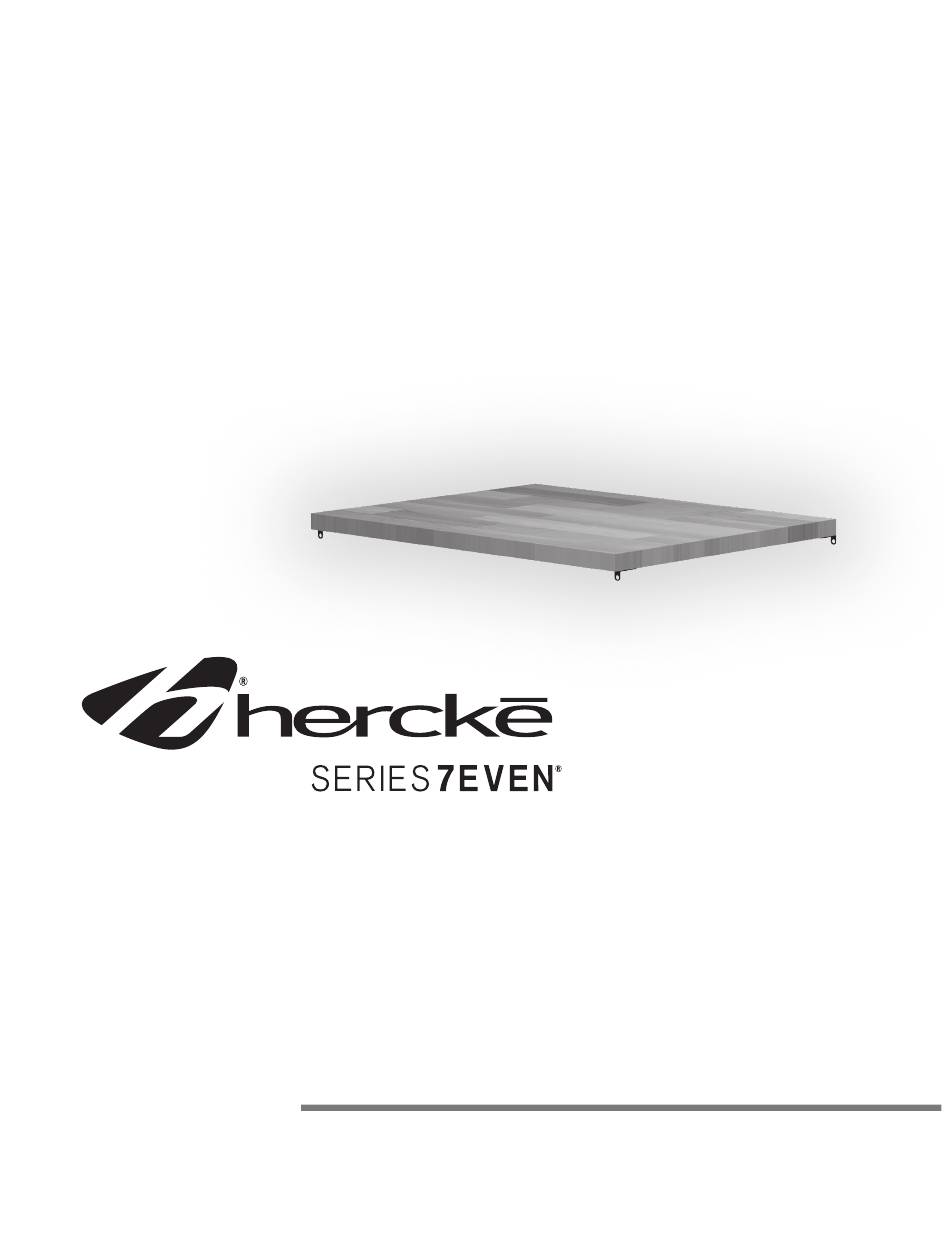

- Page 1 ASSEMBLY INSTRUCTIONS Work Surfaces 30”, 60”, 90”...
- Page 2 Assembly Instructions Overview Please read this brief overview before assembling your Hercke Series 7even system. What follows is an outline of the order in which your assembly process needs to occur. A Phillips head N0. 2 screwdriver is the only tool required to assemble Hercke ®...
- Page 3 PARTS x4pcs (x8pcs for x4pcs (x16pcs for 60” and 90” widths) 60” and 90” widths) x1pcs Work Surface Bracket #8 x 3/4” Work Surface (90”, 60” or 30” widths) #2 Phillups Pan Head Screw A Place work surface topside down as illustrated below. Place on a soft surface to avaiding scratching the top. B Place the work surface brackets at each of the 4 outside corners.
- Page 4 | 866.767.3905 ext.16 Please visit www.hercke.com to download these instructions in your preferred language. © Copyright 2008 Hercke International. All rights reserved. Hercke®, Series 7even®, System 7even.1®, System 7even.2®, and System 7even.3® are registered trademarks of Hercke International.
