Schacht WW7941 Assembly Instructions

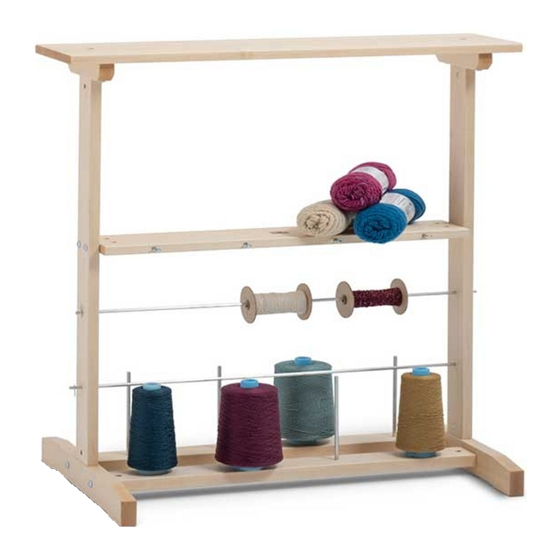

WINDING STATION
A
ssembly
PARTS
1X thread guide shelf
2X cone holders
2X bases
2X uprights
2X metal spool rods
1X top
TOOLS
hammer or mallet
#2 Phillips screwdriver
slotted (flat) screwdriver
4" steel rod (included; to install or adjust
screw eyes)
ASSEMBLY
Attach four screw eyes to each long
1.
edge of the thread guide shelf, as shown
in Figure 1. Start each screw eye in the
pre-drilled holes by hand, then use the 4"
steel rod to tighten them parallel to the
shelf top.
Install a short metal rod in each of
2.
the holes on the cone holders, as shown
in Figure 1. Set the shelf on a flat surface
and tap the rods firmly into place with a
hammer or mallet.
Orient the bases so the oval holes
3.
face inward, as shown in Figure 1. Attach
the two cone holders to the bases using a
1/4-20 x 2" Phillips truss head screw and
a 1/4-20 barrel nut at each end.
Attach the uprights to the bases using
4.
a 1/4-20 x 3-1/2" Phillips truss head
machine screw and a 1/4-20 barrel nut.
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
p. 303.442.3212 800.228.2553 f. 303.447.9273
© 2019 Schacht Spindle Company, Inc.
WW7941
I
nstructIons
HARDWARE
8X screw eyes
8X short (7-1/2") metal rods
12X 1/4-20 barrel nuts
8X 1/4-20 x 2" Phillips truss head
machine screws
2X 1/4-20 x 3-1/2" Phillips truss head
machine screws
4X cotter pins
2X 1/4-20 x 3-1/2" slotted flat head
machine screws
Insert the metal spool rods in the
5.
uprights, leaving about 1/2" of rod
extended on each side. Push a cotter pin
about halfway into the hole at the end of
the rod, leaving a loop at the top (Figure
2).
Attach the thread guide shelf to the
6.
uprights using two 1/4-20 x 2" Phillips
truss head screws and two 1/4-20 barrel
nuts at each end. If you wish to adjust the
screw eyes, use the 4" steel rod and work
carefully so the eyes don't break.
Attach the top to the uprights using a
7.
1/4-20 x 3-1/2" slotted flat head machine
screw and a 1/4-20 barrel nut at each
end.
•
top
upright
thread
guide
shelf &
screw
eyes
metal
spool
rods
base

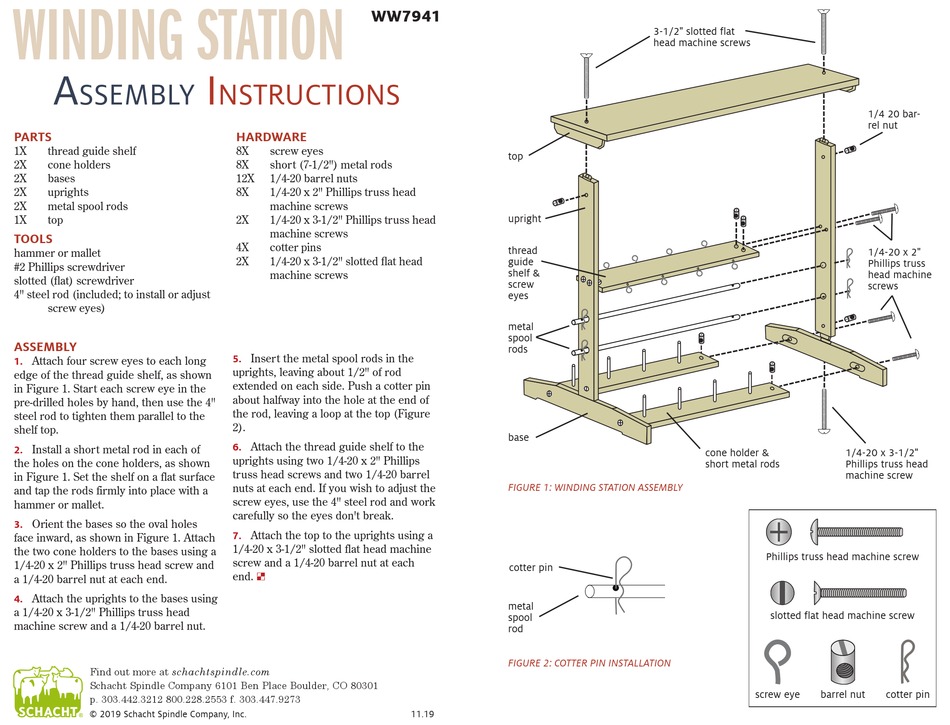

FIGURE 1: WINDING STATION ASSEMBLY
cotter pin
metal
spool
rod
FIGURE 2: COTTER PIN INSTALLATION
11.19
3-1/2" slotted flat
head machine screws
cone holder &
short metal rods
Phillips truss head machine screw
slotted flat head machine screw
screw eye barrel nut
1/4 20 bar-
rel nut
1/4-20 x 2"
Phillips truss
head machine
screws
1/4-20 x 3-1/2"
Phillips truss head
machine screw
cotter pin
