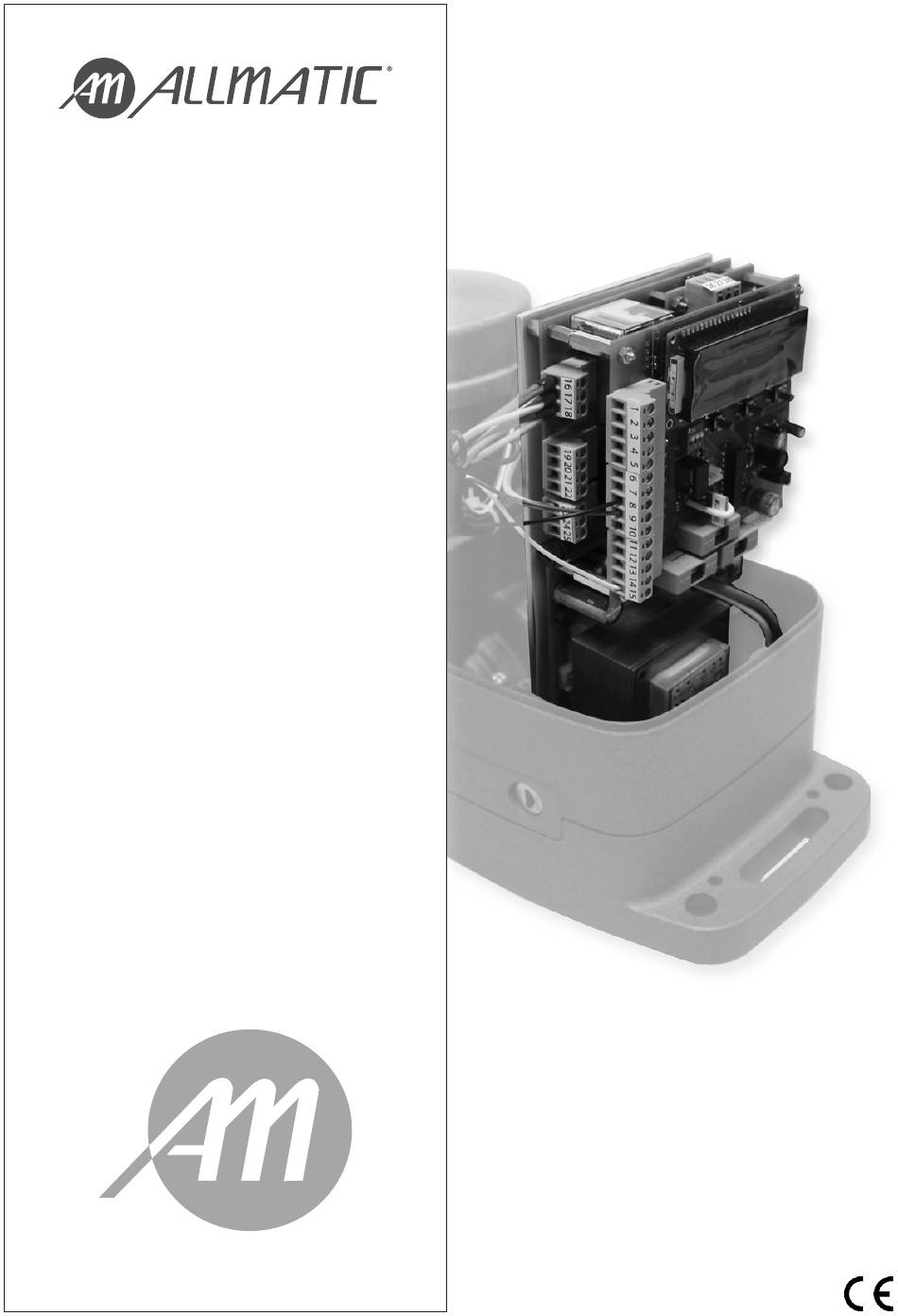

- Page 1 INSTRUCTION INVERTER COMPACT FOR SLIDING GATES 6-1622616 /R0 10/11/2017...
- Page 2 2 / 20...
- Page 3 3 / 20...
- Page 4 1. INTRO The control unit INVERTER COMPACT is integrated in the motor KALOS XL. It is a device suitable for operating and controlling the sliding gate in a way easy and complete; it is designed in order to satisfy all possible needs.
- Page 5 2. CONNECTIONS Front view Side View Board details Terminal block 1 Terminal block 2 Terminal block 3 Button 1 Button 2 Button 3 Dip switches inputs N.C. disabling Radio receiver connector Extractable memory Input led Power supply led Encoder (optional) Fuse 1, Line 230Vac Fuse 2, inputs Fuse 3, photocells...
- Page 6 OPEN INPUT ATTENTION: leave it open if not used 11-15 Connect the button OPEN between the clamps 11 and 15 of the terminal board. 12-15 CLOSE INPUT ATTENTION: leave it open if not used Connect the button CLOSE between the clamps 12 and 15 of the terminal board.
- Page 7 24Vac accessori / accessories 3 3 3 3 3 +24V Rx Photo +24V Tx 3 3 3 3 3 NC 1 PHOTO NC1 / COM PHOTO / COM Closing Limit Switch Opening Limit Switch LSC / COM LSO / COM STOP OPEN Stop command...
-
Page 8: Courtesy Light
4.1 Activation and selection of the programming menu The INVERTER COMPACT control unit it is equipped with 3 user menu (MENU A, MENU B, MENU C), with which you can adjust, program and modify all the functional parameters. During the programming phases follow the indications shown on the display. - Page 9 Language ← → SAVE 4.2 Structure and use of the menu MENU A - allows activating the optional functions and selecting the intervention modes of the security systems. MENU B - is dedicated to learning the stroke, to manual movement operations and to adjusting the motor control parameters. MENU C - menu for auxiliary support configurations for the user.
- Page 10 To select the menu item, move with P1 and P3 keys, then press P2 to access the menu item. AutoReclosingTim → → PhotoAutoReclose → → Brake → → To increase or decrease the value, move with P1 and P3, then press P2 to confirm [OFF] Wait for saving data set SAVE...
- Page 11 4.3 Programming menu A (key P1)- List of parameters The following table lists the entries of menu A and reports a short description of the parameters that can be adjusted; refer to paragraph ADVANCED FUNCTIONS for more details MENÙ A Display AutoReclosingTim OFF:...
- Page 12 Programmed opening function Clock disabled → → the gate opens and stays open until the OPEN input is active Water hammer before the gate opens Water Hammer OP disabled → → enabled. Adjustment of pressure time (in seconds) applied to the mecha- XX,Xs nical stop in closing Functioning with encoder (only for motors equipped with a suitable...
- Page 13 High Speed CL Regulation of the normal speed of the gate during the closing phase → → NNNHz speed expressed in Hz (frequency of the wave supplied to the motor) Regulation of the speed of the gate during the closing phase when approaching Low Speed CL the end of the run →...
- Page 14 5. Preliminary checks The preliminary checks must be carried out only by professionals and by paying maximum attention. The correct wiring of the motor and the limit switches is very important for the correct functioning of the automation. Unlock the motor and supply the system with power only Check the status of the LEDs input by considering after controlling the wiring connections and checking the that all normally closed (NC) inputs must have their...
- Page 15 WARNING: the photocells and the safety edge are not monitored during this phase! WARNING! during this phase the photocells and the coast are not monitored! Access the manual movement item of MENU B and confirm by pressing the P2 key. Move the gate using the P1 and P3 keys. To exit the menu, press the P2 button or wait for 15 seconds. 7.
-
Page 16: Motor Brake
command given by the user is received (S.S., CLOSE, etc). 8.2 PHOTO AUTORECLOSE The gate closes 3 seconds after the photocell intervenes in case the gate is in a totally open or in a pedestrian open position. 8.3 MOTOR BRAKE Electronic braking function to be used with motors with a strong inertia and the necessity to quickly stop the automation. - Page 17 Reset of the unit according to the display indications; this reset the control board to its factory settings WARNING: all programming and personal settings must be repeated after the reset of the control board! 8.19 Backlighting of the display (Menù C - Display Light) Enter MENU C and follow the instructions shown on the display in order to enable/disable the backlighting of the display itself.
- Page 18 NOTE 18 / 20...
- Page 19 19 / 20...
- Page 20 20 / 20...
