BLANC
800
OPERATOR 24Vdc
FOR SECTIONAL AND
GARAGE DOORS
6-1622415 REV. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blanc 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allmatic Blanc 800

Summary of Contents for Allmatic Blanc 800

  • Page 1 BLANC OPERATOR 24Vdc FOR SECTIONAL AND GARAGE DOORS 6-1622415 REV. 1...

  • Page 4: Table Of Contents

    Contents Contents About this manual ..............................5 Contents and intended audience .......................... 5 Language................................5 Symbols used in this manual ..........................5 Use according to purpose ............................5 Safety ..................................6 General safety precautions ........................... 6 Specific safety precautions ........................... 6 Product description ..............................

  • Page 5: About This Manual

    About this manual Contents and intended audience This manual gives information about the Blanc 800 series garage door operator (hereinafter referred to as ‘the product’). The manual is intended for technicians that install and maintain the product, and for consumers that use the product on a daily base.

  • Page 6: Safety

    Safety Safety General safety precautions Warning! Make sure that you read this manual and that you understand its contents before you start working with the product. Warning! Keep this manual with the product for future reference. 1. Obey the instructions in this manual. Incorrect installation or incorrect use can cause serious injury or damage to the product.

  • Page 7: Product Description

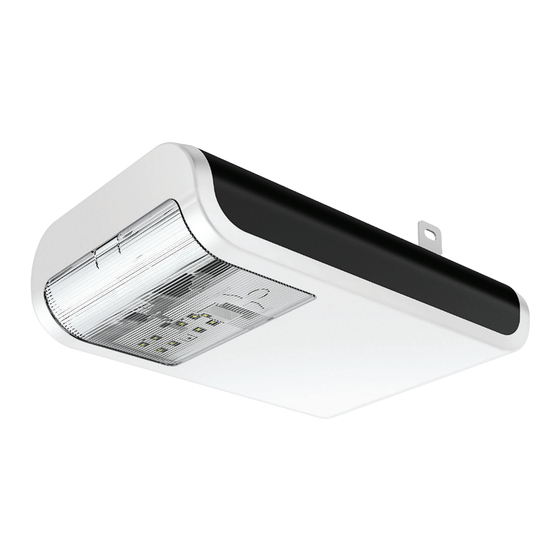

    Product description Product description General product overview * Example garage door illustration Drive head including LED module 11. Door connector attachment Rail (model example) drive side 12. Linking bar Carriage 13. Central support Rail connector (model example) 16. Support straps drive head Rail (model example) door side 16.

  • Page 8: Functioning Of Integrated Safety Unit

    Installation Functioning of integrated safety unit If the closing garage door encounters an obstruction, the closing motion stops and the door opens a few centimetres again, or, depending on its position, completely. If the opening garage door encounters an obstruction, the door stops and moves back for approximately 1 second.

  • Page 9: Scope Of Delivery

    Installation Scope of delivery The scope of delivery depends on your product configuration. It generally comprises the following: Automatic Door WARNUNG: Automatisches Tor - Nicht im Bewegungsbereich des Tores aufhalten, da sich das Tor unerwartet in Bewegung setzen kann! WARNING: Automatic door - The door may operate unexpectedly, therefore do not allow anything/anyone to stay in the path of the door! Drive head including LED module 11.

  • Page 10: Prepare The Site For Installation

    Installation Prepare the site for installation 1. The maximal distance between the drive head and wall socket is 1.2 m. 2. Check the stability of the garage door. If necessary, tighten the screws and nuts of the garage door. 3. Make sure that the garage door runs smoothly. - Lubricate shafts and bearings.

  • Page 11: Connect The Garage Door Operator To Electrical Power And Controls

    Installation Disengage the carriage During the proceeding work, it may be necessary to disengage the carriage from the connector attachment. This can be done without the need to disconnect the linking bar. 1. To move the garage door, manually pull on the pull cord (I) on the carriage.

  • Page 12: External Antenna

    Installation 1. External antenna Lead the antenna upward through the housing recess. When using an external antenna, the shield must be placed on the right adjacent terminal (F). - Connector for antenna 2. External pulse generator - Connector for external impulse generator (accessories, e.g. keyswitch or code keypad) 3.
  • Page 13 Installation Input STOP-B G // H - Connection of 2-wire photocell 2-wire photocell IRIS PULS BAT (wireless transmitter 2-wire photocell IRIS PULS with batteries inside) IRIS PULS IRIS PULS IRIS PULS IRIS PULS N.C. EDGE Warning! Following the connection of 2-wire pulsed photocells (IRIS PULS or IRIS PULS BAT) it is necessary to repeat the learning sequence of learning of the end positions, including the force learning cycle 5.
  • Page 14 Installation 7. Lighting - Connection for external, protectively insulated lighting or signaling lamp (protection class II, max 500 W) (accessory) 230V ATTENTION! Connect flashing lamp type B.RO LIGHT 230Vac with flashing circuit. Caution! Do not connect a push button. Pulse generator and external safety devices In situations of increased requirements in terms of personal protection, we recommend, in addition to the internal power limitation of the drive, the installation of a 2-wire photoelectric sensor.

  • Page 15: Routing The Antenna

    Installation Routing the antenna Hazardous voltage! • Pull out the main plug from the mains socket before you open the cover of the drive head. • Having installed the antenna, connect the cover to the drive head again. 1. Open the cover at the drive head. 2.

  • Page 16: Program The Drive Head

    Installation Program the drive head This section describes the normal programming of the drive head during installation. For further adjustments, or for special adjustments, refer to the section ‘Special settings’. Preparation 1. Make sure that the garage door is securely engaged in the carriage. 2.
  • Page 17 Installation Menu 3 + Menu 4: Setting the end positions 1. Keep the programming button (PROG button) (D) pressed in for approximately 3 seconds. The display shows “3”. 2. Press the OPEN button (B) and check if the garage door moves to the OPEN position.

  • Page 18: Special Settings

    Installation Checking force limit 1. Place an force gauge or obstruction (e.g. the operator’s cardboard box) in the closing area of the door. 2. Close the garage door. The garage door moves to the end position CLOSE. When the garage door reaches the obstruction, the garage door must stop and then move back to the end position OPEN.
  • Page 19 Installation Menu 5 + Menu 6: Force limitation for Open and Close Warning: If the setting is too high, persons may be placed at risk of injury. In the delivery state, the set value is ‘6’ when opening and ‘4’ when closing. We recommend selecting the appropriate door type in menu 8 before the force learning cycle.
  • Page 20 Installation Menu 8: Door adjustments 1. Select menu item “8”. After about 2 seconds the display blinks and the set value time appears. At delivery, the factory setting is ‘4’. For optimal movement and to maintain the forces, the corresponding door type must be selected. 2.
  • Page 21 Installation Menu 9: Adjustment other operating modes 1. Select menu item “9”. After approximately 2 seconds, the display flashes and shows the set value of the operating mode. The factory setting is "0” 2. If desired, adjust the setting with the aid of the OPEN (B) and CLOSE (C) buttons. Menu Description Remarks...

  • Page 22: Complete The Installation Procedure

    Operation Menu A: Set open time Only in conjunction with function ‘Automatic close’. 1. Select menu item “A”. After approximately 2 seconds, the display flashes and shows the set value of the operating mode. 2. If desired, adjust the setting with the aid of the OPEN (B) and CLOSE (C) buttons. Menu value Open time (without warning time 10 seconds) 10 s 30 s...

  • Page 23: Operation

    Operation Operation Safety instructions for operation Warning: Use only by trained persons. All users must be familiar with the applicable safety regulations. Warning: Keep the hand transmitters out of reach of children. Warning: When the drive is actuated, the opening and closing processes must be monitored. The garage door must be visible from the place of operation.

  • Page 24: Manually Open Or Close The Garage Door

    Operation Manually open or close the garage door During adjustments to the garage door, or during power failure, the garage door can be manually opened or closed. 1. To move the garage door, manually pull on the pull cord (I) on the carriage.

  • Page 25: Diagnostic Display

    Diagnostic display Diagnostic display Number State Diagnosis / Remedy The operator starts up and In normal operation, drive receives start signal via START input “0”goes out. or by drive unit. Garage door has reached end position OPEN. Garage door has reached end position CLOSE.

  • Page 26: Restore The Factory Settings

    Diagnostic display Restore the factory settings 1. Press the OPEN and CLOSE buttons at the same time. 2. Press the buttons for approximately 3 seconds after you put the power plug into the electrical socket. Cycle counter The cycle counter stores the number of OPEN/CLOSE actions powered by the drive. To read the meter, hold the button in for 3 seconds until you see a number.

  • Page 27: Technical Data

    Technical data Technical data The drives of the Blanc 800 series are suitable for the following doors: Door type: Canopy/non-swinging doors, double wing doors, swing doors/tilting doors, sectional doors/side section doors Max. door size: 14 m² Max. weight: 180 kg...

  • Page 28: Inspection And Test Log Book For The Door System

    Inspection and test log book for the door system Inspection and test log book for the door system Owner / operator ________________________________________________________________________________ Location of door system: _________________________________________________________________________ Operator data Operator type: _______________________________ Manufacture date: _______________________________ Manufacturer: _____________________________ Operating mode: ________________________________ Door data Type: _____________________________________ Year of construction: _____________________________...

  • Page 29: Check List For The Garage Door Operator

    Check list for the garage door operator Check list for the garage door operator Confirm features at start-up with a check mark. Equipment present Features to be tested Remarks Garage door Manual operation of the door Smooth running Fastenings/connections State/Seat Pivots/joints State/Lubrication Track rollers/track roller holders...

  • Page 30: Maintenance / Checks

    Maintenance / checks Maintenance / checks Note: For your safety, we recommend that the door system be checked before initial use and as needed – at least once a year – in accordance with “Check list for the garage door operator” on page 29. The check can be carried out by a person with the corresponding qualification certificate or by a specialist company.

  • Page 31: Declaration Of Conformity And Incorporation

    Annex VII, part B, and undertake to transmit it through our Documentation Department in response to a reasoned request by the competent national authorities. Machine type: Garage operator Machinery designation: Blanc 800 Year of manufacture: from 2019 Relevant EC/EU directives: Directive 2014/30/EU on electromagnetic compatibility as of 29/03/2014...
  • Page 32 ALLMATIC S.r.l Via dell’Artigiano, n°1 – Z.A. 32020 Borgo Valbelluna - Belluno – Italy Tel. 0437 751175 – 751163 r.a. ww.allmatic.com - E-mail: info@allmatic.com...
