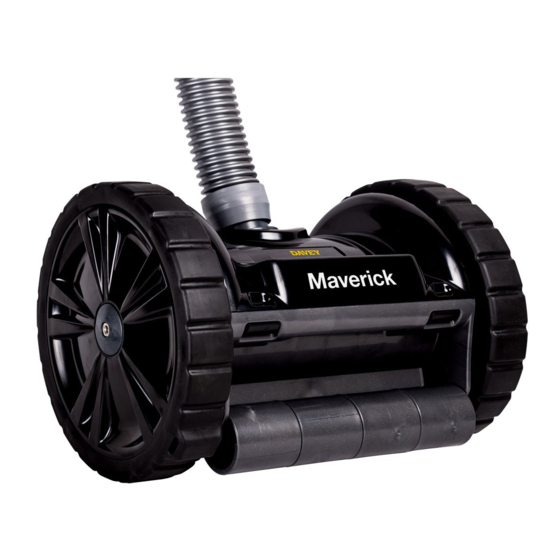

Wheeled suction pool cleaner
Hide thumbs Also See for Maverick:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Wheeled Suction Pool Cleaner
Owner's Manual
for the Installation and Service of the
Maverick Tune Up Kit
Replacement Wearable Parts
Should the installer or owner be unfamiliar with the correct installation
or operation of this type of equipment you should contact the
distributor/manufacturer for the correct advice before proceeding
with the installation or operation of this product. The pump
operator or owner must be provided with this owner's manual.
