INSTRUCTIONS FOR OPERATION, AND MAINTENANCE
WARNING
P
P
R
R
POR TAB LE MU LTI PUR POS
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2003-2020
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serial-
number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
O
O
/
/
p
p
a
a
k
k
E FOA M SYS TEM
PATE NT PEN DING ó
MOD EL UM1 2
CLASS A RANGE: OFF, 0.1% TO 1.0% continuously adjustable

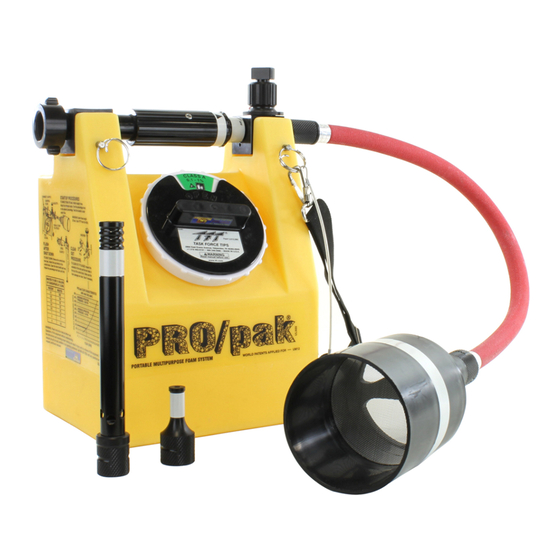

Portable Multi-Purpose Foam System
Minimum Operating Condition
Maximum Operating Condition
ADDITIVE SETTINGS
CLASS B RANGE: OFF, 1%, 3%, 6%
1
PRO/pak
®
RATED FLOW
12 GPM at 100 PSI
45 L/MIN at 7.0 BAR
7 GPM at 40 PSI
30 L/MIN at 3 BAR
27 GPM at 500 PSI
100 L/MIN at 40 BAR
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
LIU-030 August 24, 2020 Rev10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Task Force Tips PRO/pak
Summary of Contents for Task Force Tips PRO/pak
- Page 1 CLASS B RANGE: OFF, 1%, 3%, 6% TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2003-2020 LIU-030 August 24, 2020 Rev10...
-
Page 2: Table Of Contents
Authority Having Jurisdiction (AHJ). Examples of recent publications: IFSTA Principles of NFPA 1145 - Guide for the Use of Foam Fire Fighting Class A Foams in Fire Fighting ©Copyright Task Force Tips LLC 2003-2020 LIU-030 August 24, 2020 Rev10... -
Page 3: Meaning Of Safety Signal Words
The Pro/pak can be used on ignited liquid fuels, but its foam application rate is very limited. Based on NFPA 11 this unit should not be used on ignited Class B fuels with an area greater than 120 square feet (10 x 12 feet) or 11 square meters. The PRO/pak should not be used on burning Polar Solvents with an area greater than 60 square feet (6 x 10 feet) or 5.5 square meters. -
Page 4: Part Identification
Assembly straight up and out of the tank. Turn the Control Unit around and reinstall the Pull Pins, the Circle Cotters, and the Shoulder Strap. DILUTION EQUIVALENTS Agents used in the PRO/pak are to be diluted according to the manufacturer’s specifications. The following chart describes percentages and dilution ratios. Percentage... -
Page 5: Flow Characteristics
The viscosity of most foam concentrates changes with temperature, with some thickening to a gel at temperatures of 40ºF (4ºC). The PRO/pak percentage knob has two sides, the green Class A side was calibrated for 20 Centipoise Class A foam concentrates and the red, Class B, side was calibrated with National Foam’s Universal Gold® AFFF concentrate. -
Page 6: Using Foam
• Empty and rinse the reservoir between use. It is the responsibility of the end user to determine the chemical compatibility between the PRO/pak and any solutions to be stored in it. Effects of corrosion by bleach and other disinfecting concentrates are not covered under warranty. -
Page 7: Nozzle Selection
U-LX12 (1.8 m Hose) 12' Hose / U-HS12 Medium Expansion Nozzle (3.6 m Hose) U-MX12 25' Hose / U-HS25 (7.5 m Hose) Piercing Nozzle (optional) (optional) U-PN12 Figure 6.0C ©Copyright Task Force Tips LLC 2003-2020 LIU-030 August 24, 2020 Rev10... -
Page 8: Operation
Figure 7.0 HOSE CONNECTION Attach inlet fire hose to the coupling on the inlet end of the PRO/pak. Larger hoses may be used with an adapter. For maximum maneuverability, we recommend attaching 1” hose to the PRO/pak itself. FILLING THE TANK Unscrew the fill port lid by turning counterclockwise. -
Page 9: Foam Quality
Foam quality with the Medium Expansion Nozzle will depend upon the velocity of the foam solution exiting the nozzle. When pumping high pressures to the PRO/pak, it may be necessary to partially close the flow control valve to make good foam with the Medium Expansion Nozzle. -
Page 10: Shut Down After Use (Flushing)
9. Shut off water and reinstall the Control Unit on the tank and insert the Pull Pins and circle cotters. 10. Remove the Cap. The exterior of the PRO/pak can be washed off with the hose or straight stream nozzle, with the percentage knob in the OFF position. STORAGE The PRO/pak can be stored with agent concentrate in it. -
Page 11: Warranty
WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase. -
Page 12: Troubleshooting
PRO/pak. Reset percentage knob to proper percentage when finished. For years of service, periodically inspect your PRO/pak. Make sure the hose and fan nozzle are in place. Look for debris in the bottom of the tank and flush if necessary.
