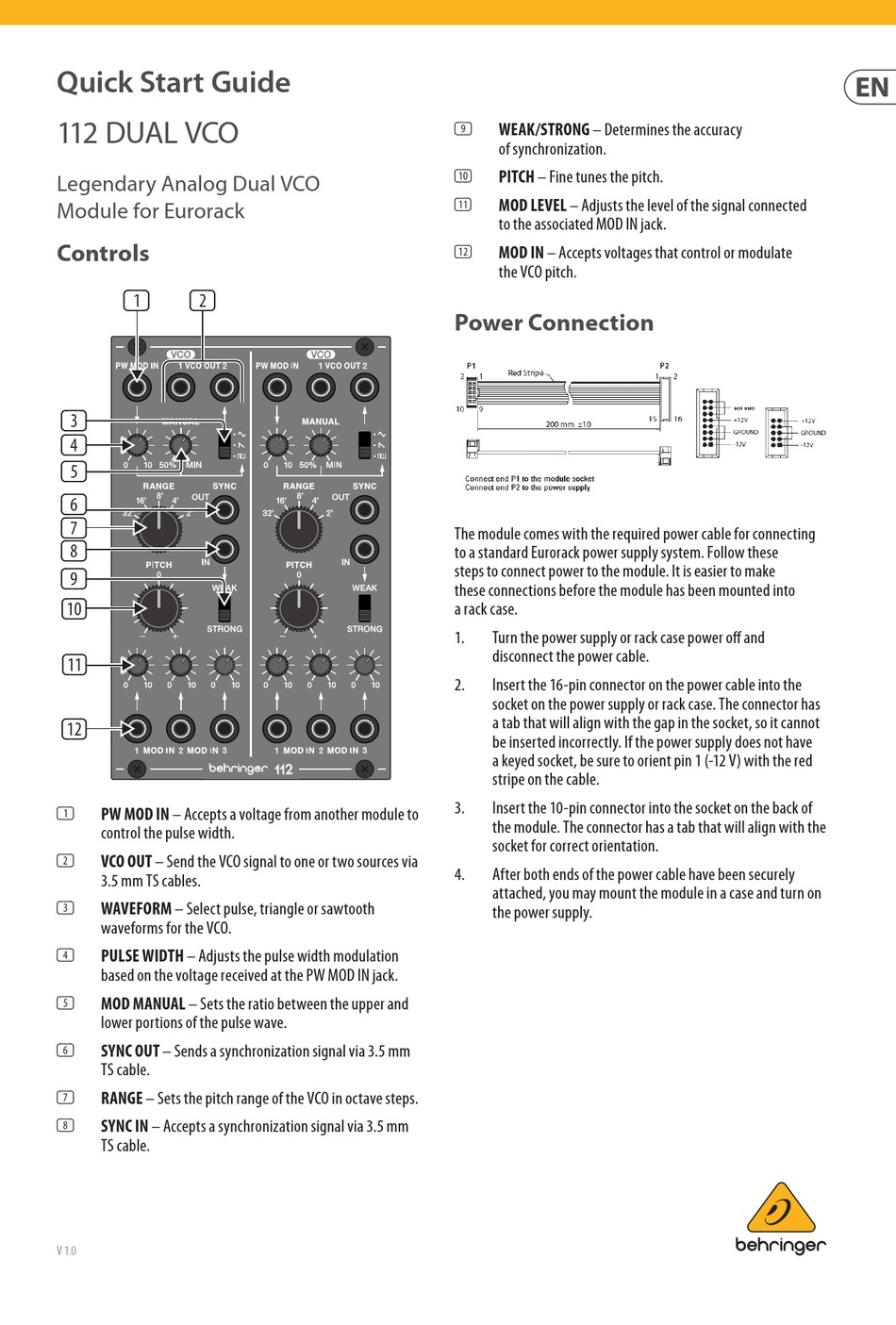

Behringer 112 DUAL VCO Quick Start Manual

Quick Start Guide
112 DUAL VCO
Legendary Analog Dual VCO
Module for Eurorack
Controls
(1) (2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
PW MOD IN – Accepts a voltage from another module to
(1)
control the pulse width.
VCO OUT – Send the VCO signal to one or two sources via
(2)
3.5 mm TS cables.
WAVEFORM – Select pulse, triangle or sawtooth
(3)
waveforms for the VCO.
PULSE WIDTH – Adjusts the pulse width modulation
(4)
based on the voltage received at the PW MOD IN jack.
MOD MANUAL – Sets the ratio between the upper and
(5)
lower portions of the pulse wave.
SYNC OUT – Sends a synchronization signal via 3.5 mm
(6)
TS cable.
RANGE – Sets the pitch range of the VCO in octave steps.
(7)
SYNC IN – Accepts a synchronization signal via 3.5 mm
(8)
TS cable.
V 1.0
WEAK/STRONG – Determines the accuracy
(9)
of synchronization.
PITCH – Fine tunes the pitch.
(10)
MOD LEVEL – Adjusts the level of the signal connected
(11)
to the associated MOD IN jack.
MOD IN – Accepts voltages that control or modulate
(12)
the VCO pitch.
Power Connection
The module comes with the required power cable for connecting
to a standard Eurorack power supply system. Follow these
steps to connect power to the module. It is easier to make
these connections before the module has been mounted into
a rack case.
1. Turn the power supply or rack case power off and
disconnect the power cable.
2. Insert the 16-pin connector on the power cable into the
socket on the power supply or rack case. The connector has
a tab that will align with the gap in the socket, so it cannot
be inserted incorrectly. If the power supply does not have
a keyed socket, be sure to orient pin 1 (-12 V) with the red
stripe on the cable.
3. Insert the 10-pin connector into the socket on the back of
the module. The connector has a tab that will align with the
socket for correct orientation.
4. After both ends of the power cable have been securely
attached, you may mount the module in a case and turn on
the power supply.
