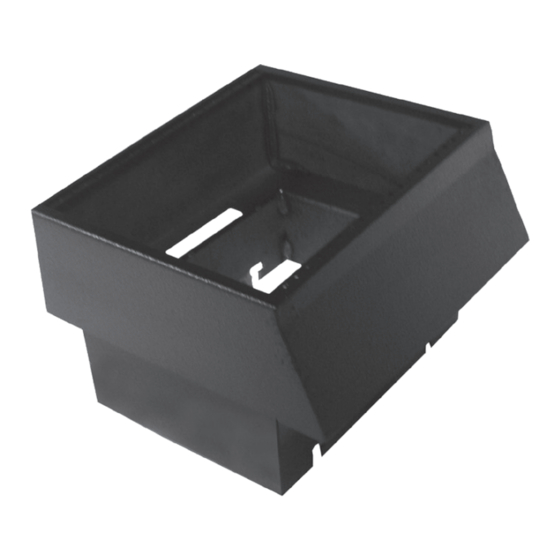

Jotto Desk 425-6190 Installation Instructions

For ford expedition

Tools Needed:

Flathead Screwdriver

7mm Nutdriver

1/4" Drive Handle

1/4" Drive Extension (4" and 6")

1/4" Drive Ratchet

7/32", 5/16", 7/16", 1/4" Drive Sockets

Long Phillips Screwdriver

Use 7mm nutdriver to remove screw

in console.

425-6190

'07-'11 Ford Expedition

Installation Instructions

Remove chrome bezel around gear

shift. Gently pry up with flathead

screwdriver and remove.

Gently pry up and remove cup

holders in console using flathead

screwdriver, set aside.

Pull out rubber tray and set aside.

Use phillips screwdriver to remove

(4) screws in the back of console to

remove arm rest.

Table of Contents

Do you have a question about the 425-6190 and is the answer not in the manual?

Page 1 425-6190 ‘07-‘11 Ford Expedition Installation Instructions Tools Needed: Remove chrome bezel around gear Pull out rubber tray and set aside. Flathead Screwdriver shift. Gently pry up with flathead 7mm Nutdriver screwdriver and remove. 1/4” Drive Handle 1/4” Drive Extension (4” and 6”) 1/4”...
Page 2 Remove arm rest. Remove 7mm screws on top of Use 7/32” socket to remove (2) rear console. screws. Gently pry out rear console housing..and set aside. Gently pry up on cupholder assembly. Remove and set aside. Gently pry up upper glove box Remove 7mm screws (two in front housing and set aside.
Page 3 Remove screws on side of glove box housing using a 7/32” socket (two on each side). Remove the caps covering (2) 5/16” Remove side panels. Remove side panels. bolts located at the bottom front and rear of the right and left side panels. Use 5/16”...
Page 4 Install complete. side and two on right side of the console side panels and the covers). Jotto Desk is a patented product and Registered Trademark of Assembled Products Corporation. Contour Console has design and utility patents. Additional Patents Pending. Specifications subject to change without notice. Printed in the USA ®...
