Remove all (6) 8mm bolts that secure
OEM cover plate to vehicle (will be
reused)
Disconnect (2) 12v outlets and USB/
Line-in plate. Use small flat blade
screw driver to remove OEM 12v
outlets and USB/Line-in plate. Set
aside for remounting USB in Jotto
Desk Contour Console
Secure Jotto Desk Dash Mount
Structure into OEM Dash, using the
same hardware removed to take out
the Middle Dash Structure.

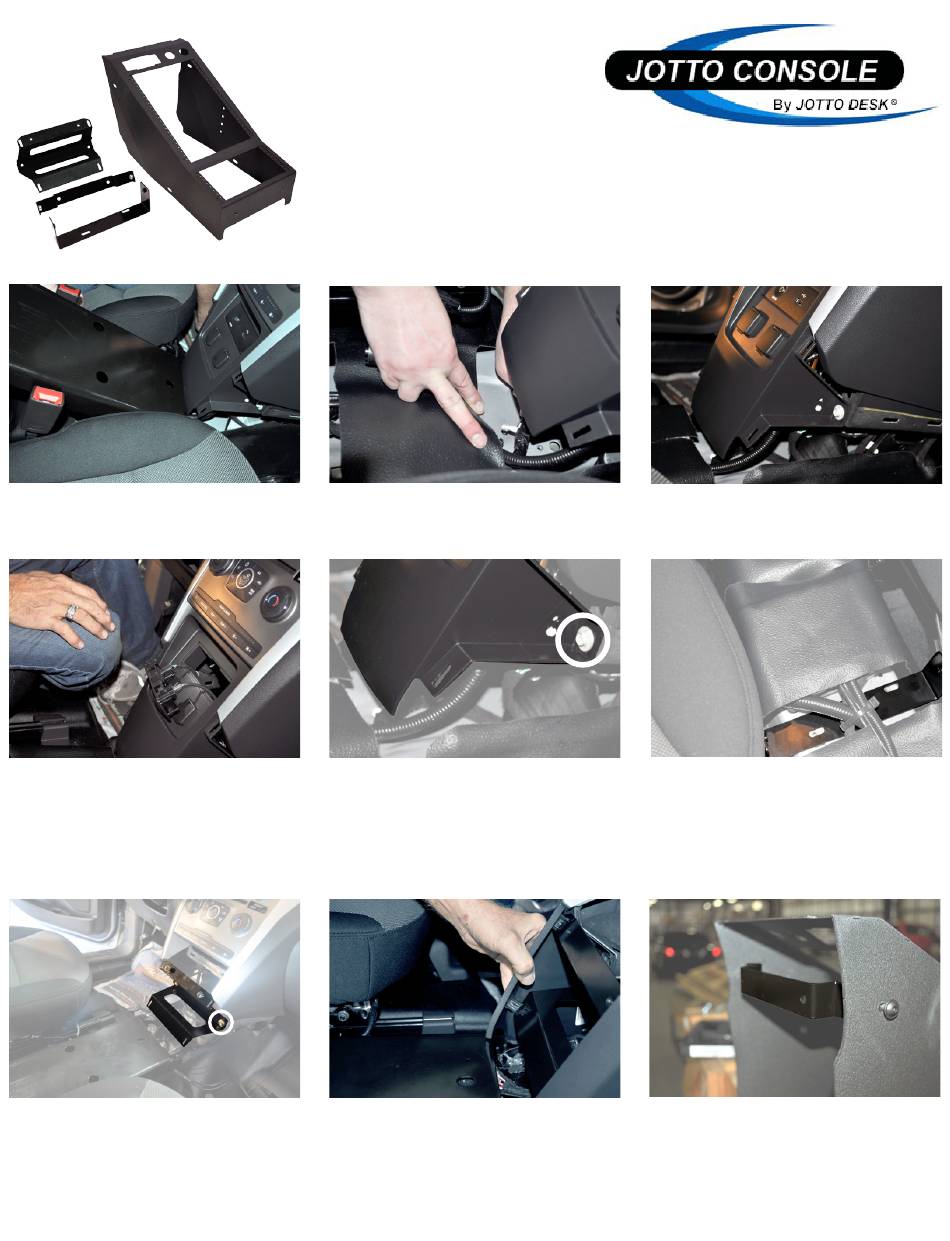

425-6193
'13+ FORD PI Utility
Contour Console
Installation Instructions
At dash of OEM cover plate – remove
tab that secures a cable to OEM
cover plate
Remove
Middle/Lower
Structure – by removing 2 (10 mm)
bolts/screws.
Replace OEM Trim Panels, securing
to provided Dash Mount Structure.
Remove (2) OEM Trim Panels from
Side of Dash
Dash
Slide Rear Mount Plate under OEM
wiring and replace OEM cover plate.
Secure using the 8mm bolts that
were removed earlier
Outside of vehicle – secure the Dash
Mount Bracket to the Jotto Desk
Contour Console. Be sure to finger
tighten the bolts to allow adjustability.
continued on back....
