Prusa i3 – Build Manual
1.3 Y-Axis Front Section (Idler)
Secure the idler onto one of the M8 threaded rods, dead center (loosely hand tighten) see Fig 1.3a If the idler pulley isn't
pre assembled see appendix B (idler pulleys).

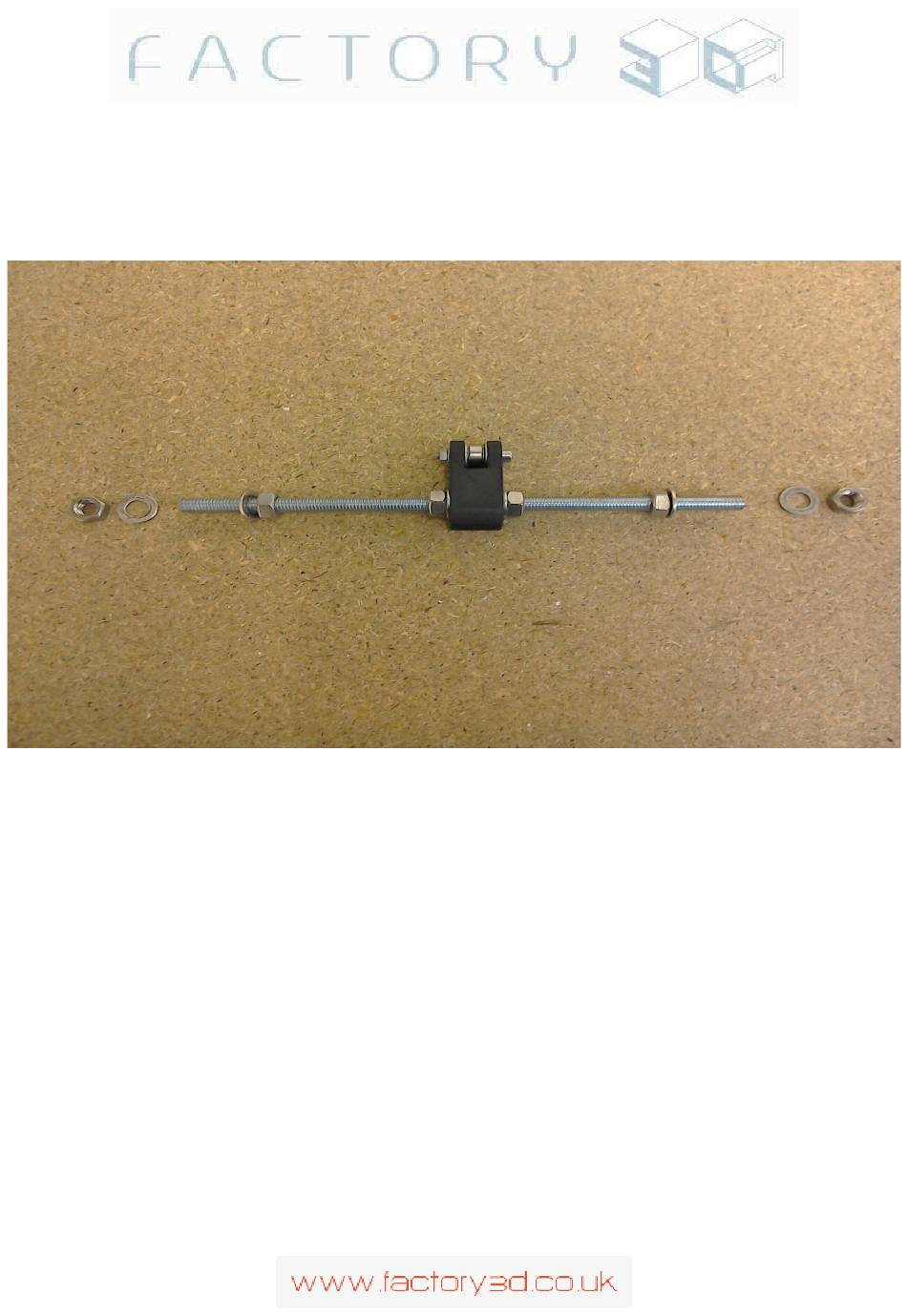

Fig 1.3a
Version: 1.3
Page: 8
