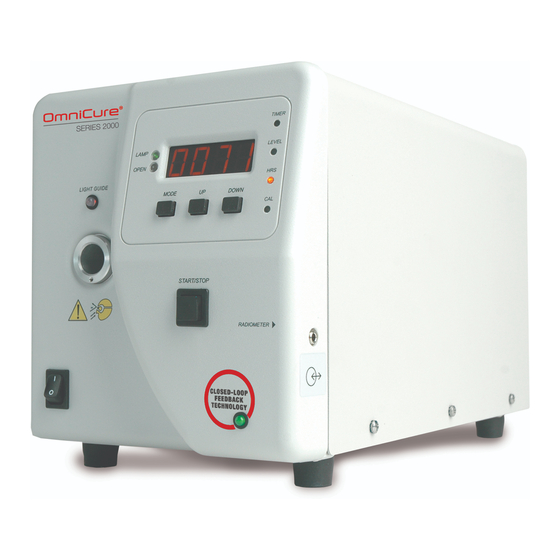

Lumen Dynamics Group OmniCure 2000 Series Quick Start Manual

Start Up
1. Install the lamp module (see side 2).
2. Plug the unit into a properly grounded AC outlet.
3. Turn on the Power switch at the front of the unit.
4. The lamp will automatically strike when power is turned on to the unit.
The LAMP indicator will be illuminated.
5. Allow the lamp to warm up (Lumen Dynamics recommends 20 Minutes
of proper warm-up to ensure stable optical output). During the warm
up period the LED display and indicators will flash. THE LAMP MUST
BE ALLOWED TO WARM-UP UNINTERRUPTED.
Installing the Light Guide
1. Remove the protective end caps from the light guide
2. Insert the light guide into the light guide port on the front panel until it
seats with a positive click.
Note: When the power is turned on and the light guide is properly installed,
the light guide LED will be green.
Setting the Display Mode
®
The OmniCure Series 2000 will display 3 modes: Timer Mode, Level Mode
and Lamp Hour Mode.
1. When the display is in Timer Mode, the front panel "TIMER" LED is
illuminated. The number shown will indicate the exposure time in
seconds and tenth of seconds (XXX.X)
2. When the display is in Level Mode, the front panel "LEVEL" LED is
illuminated.
The OmniCure ® Series 2000 system can operate in two different
output intensity modes: Absolute or Relative.
Absolute Mode: refers to the condition when the Series 2000 has
been calibrated. The display (XX.XX) will show an absolute value
2
of irradiance in W/cm and the "CAL" LED is ON.
Relative Mode: refers to the condition when Series 2000 has not
been calibrated. The display (XXX) will show the percentage of
maximum iris position and the "CAL" LED is OFF.
3. When the display is in Lamp Hour Mode, the front panel "L.HRS" LED
is illuminated. This shows the accumulated number of hours the lamp
has been on. (XXXX.)
4. Press the front panel MODE button to cycle through the display modes.
WARNING: Never look into the light emitting end of the light guide! The light could severely damage the cornea and retina of the eye if the light is
observed directly. Eye shielding must be used at all times as well as clothing to protect exposed skin. Refer to OmniCure 2000 User's Guide, Section 5
OmniCure® Series Quick Start Guide
Setting the Exposure Time
1. Set the system to Timer Mode (XXX.X) by pressing the Mode button.
2. Press the
1/10s
3. For coarse adjustments, press and hold the
increase or decrease the exposure time.
Setting the Intensity Level
1. Set your OmniCure
button.
2. Press the
illuminate. Warning: UV light and high levels of visible light will be
emitted from the end of the light guide!
3. Press the
4. In Relative Mode, the % iris opening displayed will increase or decrease by 1
for each time the
5. In Absolute Mode, the irradiance level displayed will increase or decrease by
10mW/cm
Note: The Series 2000 must be calibrated to operate in Absolute Mode.
6. For coarse adjustments, press and hold the
increase or decrease the light output.
7. Press the
off.
Running a Timed Exposure:
1. Set the system to Timer Mode (XXX.X).
2. Press the
begin to count down. When the exposure time has elapsed to zero, the shutter
will close.
Running an Exposure with No Timer:
1. Set the system to Intensity Mode (XXX).
2. Press the
open until the
Using the Footpedal / Remote Device (Rear Panel: 3.5mm Jack)
Depressing the footpedal, or providing a momentary contact closure, provides
1.
the same function as pressing the
per the current mode (Intensity or Timer) of the unit
or button to increase or decrease the exposure time by
UP DOWN
UP
®
Series 2000 to Level Mode (XXX) by pressing the Mode
/ button to open the shutter. The
START STOP
or button to increase or decrease the light output.
UP DOWN
or button is pressed.
UP DOWN
2
for each time the or button is pressed.
UP DOWN
UP
/ button to close the shutter. The
START STOP
/ button. The shutter will open and the exposure time will
START STOP
/ button. The shutter will open. The shutter will remain
START STOP
/ is pressed again.
START STOP
/
START STOP
SIDE 1
or button to rapidly
DOWN
indicator will
OPEN
or button to rapidly
DOWN
indicator will turn
OPEN
button. The shutter opens as
.
Printed in Canada
035-00309R Rev. 3
