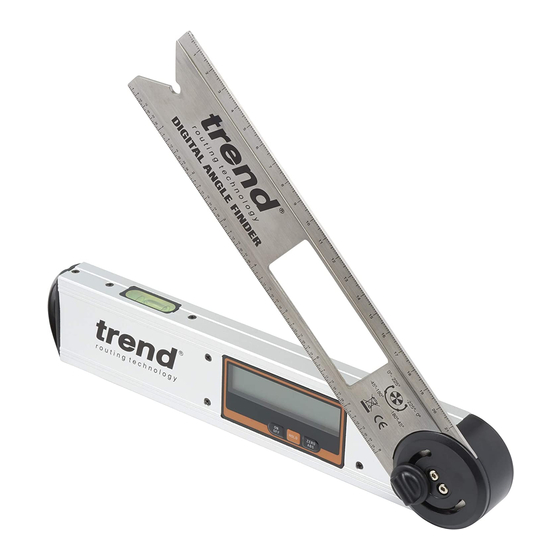

TREND DAF/8 Manual

DIGITAL ANGLE
FINDER
Calculates angles quickly & accurately.
Easy to use with three press buttons.
n
Large aluminium stock for stability.
n
Incorporates a built in spirit level vial.
n
Lock function to prevent last
n
measurement being lost
(ABS mode).
LCD auto-shut off in
n
5 minutes.
Large LCD display
n
with digital readout.
Measuring range from
n
000.0º to 220.0º. Can
reach 360.0º when
locking knob is removed.
Metal rule with metric
n
and imperial scale and
locking function.
Ideal for woodworking,
n
construction and
machinery.
Includes CR2032 3v
n
Lithium battery.
Locking holes
Analogue quadrant
Remove the locking knob to allow for 360º measuring.
Product Ref.
DAF/8
WITH SPIRIT LEVEL
200mm (8")
090.0
180.0
180.0 180.0
ABS ABS
0 0
ON ON HOLD ZERO ZERO
OFF OFF HOLD ABS ABS
Four locking holes for specific range measuring.
45º 45º
045.0
0 ABS
045.0
ABS
0
ON HOLD ZERO
OFF ABS
090.0
0
ON ZERO
OFF HOLD ABS
GB Trend Machinery & Cutting Tools Ltd.
Tel: 0044(0)1923 249911
technical@trendm.co.uk
www.trend-uk.com
Trend Routing Technology Inc.
USA
Tel: 336 292 5051
technical@trend-usa.com
www.trend-usa.com
© Copyright Trend 2014, 2015. E&OE.
® All trademarks acknowledged.

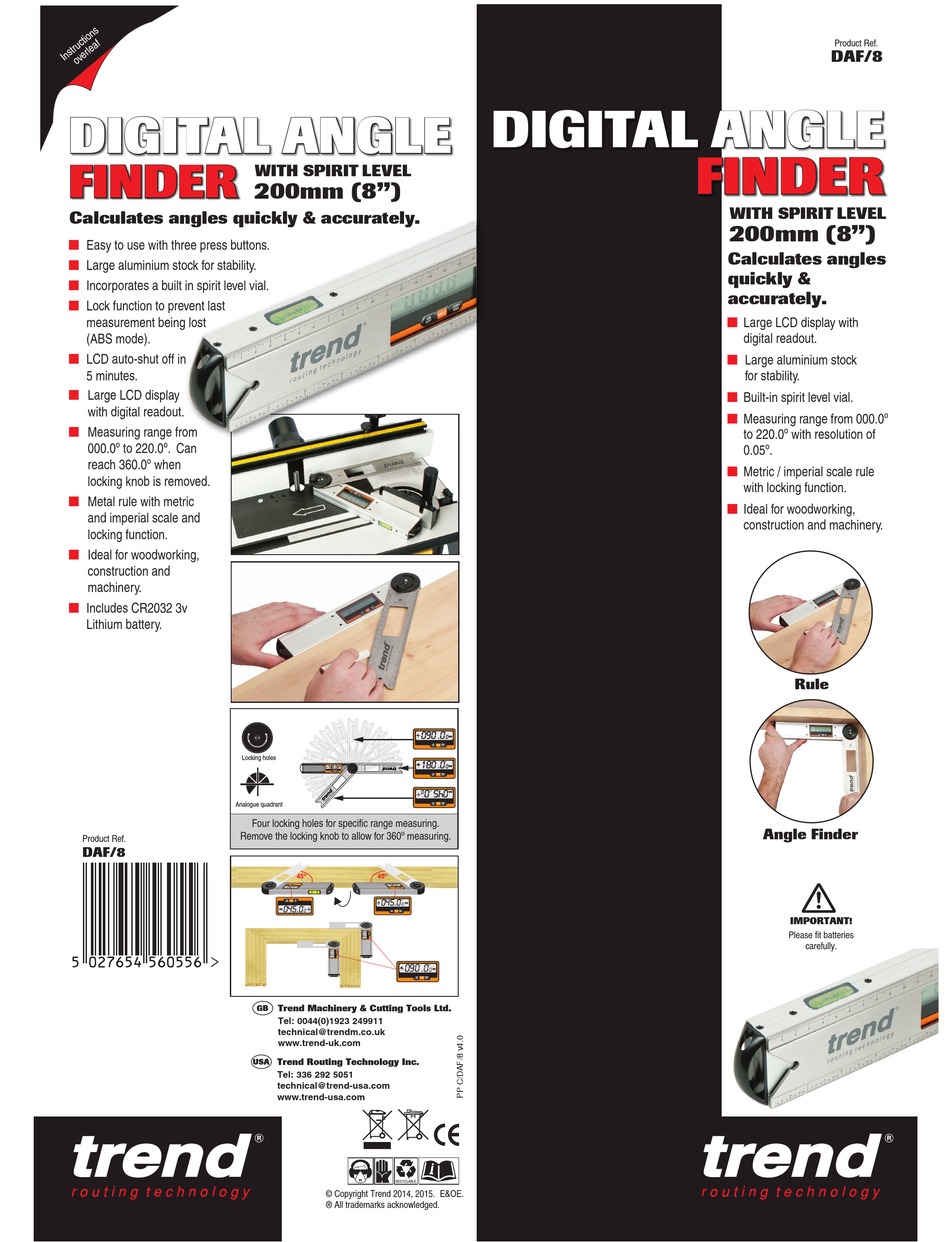

DIGITAL ANGLE
