TREND DAR/200 Manual

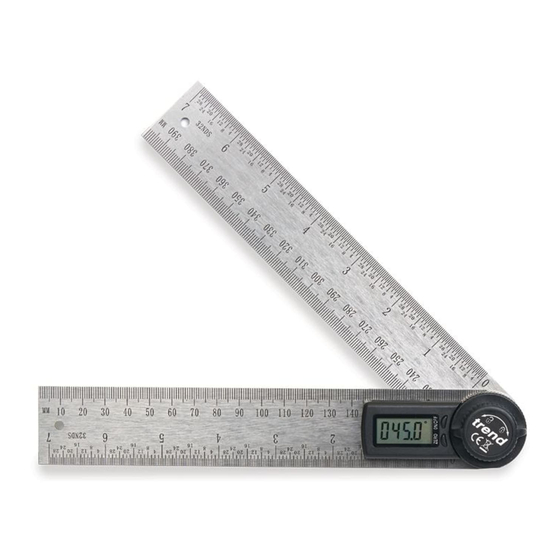

DIGITAL ANGLE RULE REF. DAR/200
Thank you for purchasing this Trend product which should give lasting performance if used
in accordance with these instructions.

INTENDED USE

This accessory is intended to be used to measure the angle and length of a component.
SAFETY
Read and understand the instruction sheet carefully before using. This is
a sensitive precision tool. Do not disassemble or drop it. Please note the
sharp edges, avoid scratching. Store out of reach of children. Do not use as
a toy or as a weapon.
PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE.
DESCRIPTION OF PARTS
Hanging
holes
7 6
Metric Scale (standard rule)
MM 10 20 30 40 50 60 70
Imperial Scale
OPERATION
ON/OFF button: Short press ON/OFF to turn
on, or alternatively move the scale to turn
on the device when at off LCD status. Short
press ON/OFF to turn off the LCD. Long
press ON/OFF for more than 3 seconds to
n Rotate clockwise to tighten
the moving rule.
n Rotate anti-clockwise to
loosen the moving rule.
Measuring Obtuse
Angles
1.
Short press ON/OFF to turn on,
close up both rulers and place on the flat
surface, make sure both ruler's edges
touch the surface, press ZERO button
to set zero.
MM 10 20 30 40 50 60 70 80 90 100 110 120 130 140
2.
Rotate the rule to measure the angle.
MM 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Ruler
Battery container
Locking knob
5 4 3
200mm
80 90 100 110 120 130 140
7"
135º
LCD
2 1
400mm
MM 10 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390
shut off the whole system. Automatically turns
off in 6 minutes.
ZERO button: Press ZERO to set zero at any
point when turned on.
Tighten
130 140
Loosen
Measuring Acute
Angles
1.
Short press ON/OFF to turn on,
open up both rulers and place on the flat
surface, make sure both ruler's edges
touch the surface, press ZERO button
to set zero.
MM 10 20 30 40 50 60 70 80 90 100 110 120 130 140
2.
Rotate the rule to measure the angle.
MM 10 20 30 40 50 60 70 80 90 100 110 120 130 140
20mm
8mm
2.5mm
7"
ON/OFF button
ZERO button
MM 10 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390
45º
MM
7 6 5
MM
