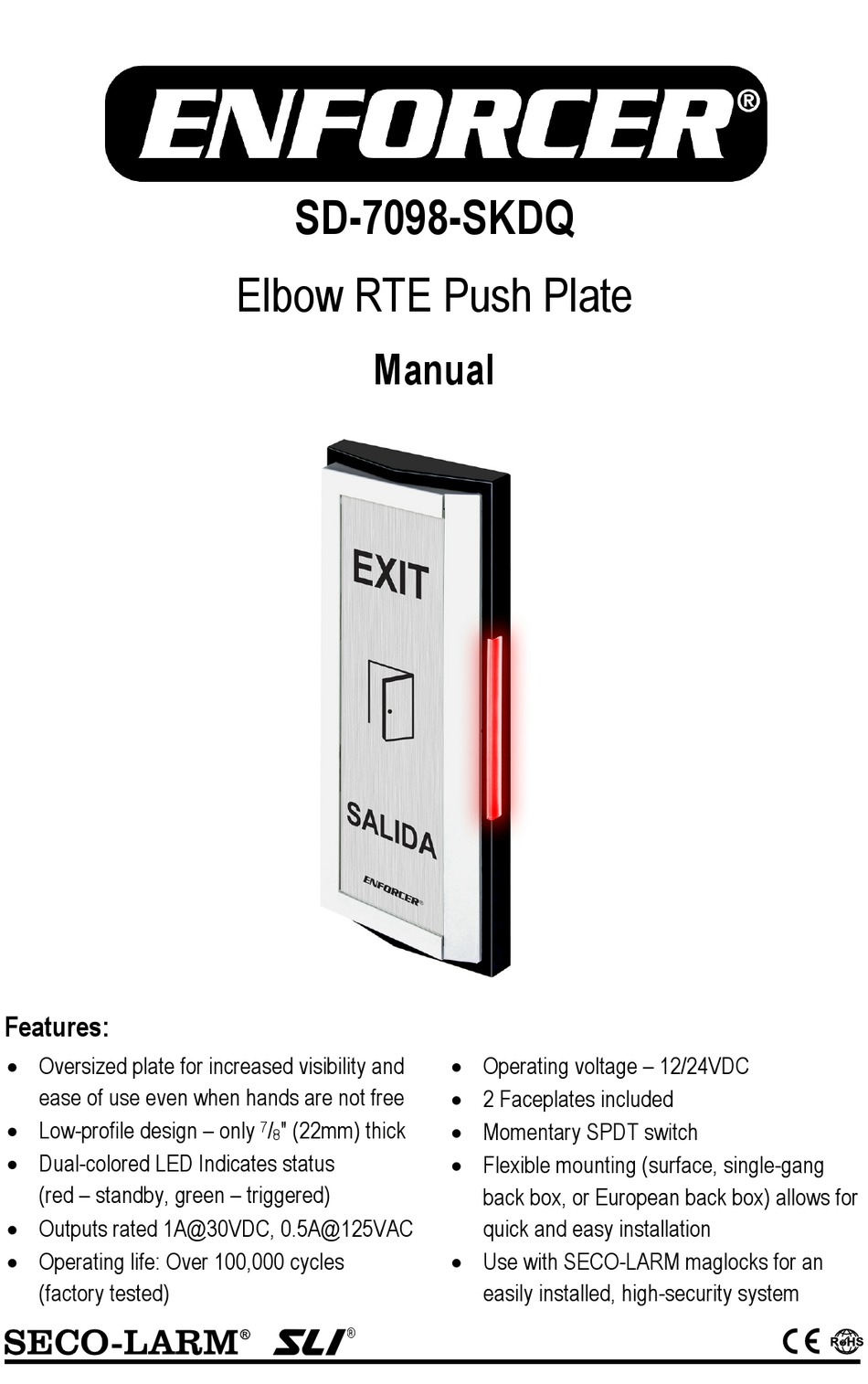

SECO-LARM ENFORCER SD-7098-SKDQ Manual

Elbow rte push plate

Table of Contents

Download this manual

Features:

 Oversized plate for increased visibility and

ease of use even when hands are not free

 Low-profile design – only

 Dual-colored LED Indicates status

(red – standby, green – triggered)

 Outputs rated 1A@30VDC, 0.5A@125VAC

 Operating life: Over 100,000 cycles

(factory tested)

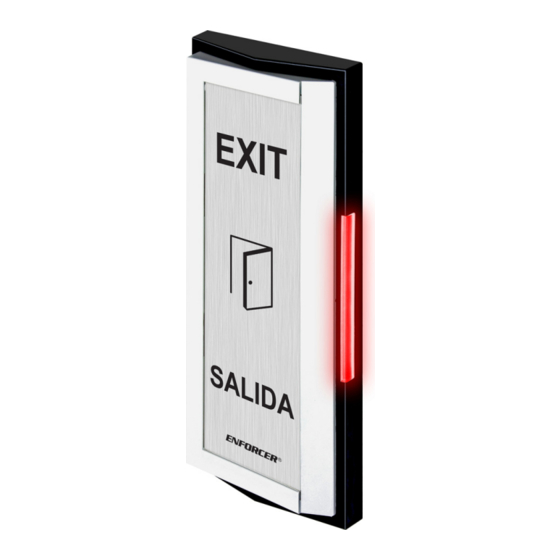

SD-7098-SKDQ

Elbow RTE Push Plate

Manual

" (22mm) thick

 Operating voltage – 12/24VDC

 2 Faceplates included

 Momentary SPDT switch

 Flexible mounting (surface, single-gang

back box, or European back box) allows for

quick and easy installation

 Use with SECO-LARM maglocks for an

easily installed, high-security system

Table of Contents

Do you have a question about the ENFORCER SD-7098-SKDQ and is the answer not in the manual?

Page 1 (red – standby, green – triggered) back box, or European back box) allows for  Outputs rated 1A@30VDC, 0.5A@125VAC quick and easy installation  Operating life: Over 100,000 cycles  Use with SECO-LARM maglocks for an (factory tested) easily installed, high-security system ®...
Page 2 0~95% Non-condensing Operating temperature 14°~113° F (-10°~45° C) Weight 10.2-oz (289g) Overview: Front Side Switch Plate Removed Terminal EXIT Block Switch Plate Wiring " Status Attachment Knockouts (250mm) Indicator Notches SALIDA Spring Locator Pin " (22mm) " (95mm) SECO-LARM U.S.A., Inc.
Page 3 (Fig. 5). Press down on the right side until it clicks into place (Fig 6). Wiring Diagram: Output #2 (N.C.) Output #2 (COM) Output #2 (N.O.) Output #1 (N.C.) Output #1 (COM) Output #1 (N.O.) Ground (—) Power (+) SECO-LARM U.S.A., Inc.
Page 4 WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
