MANUAL

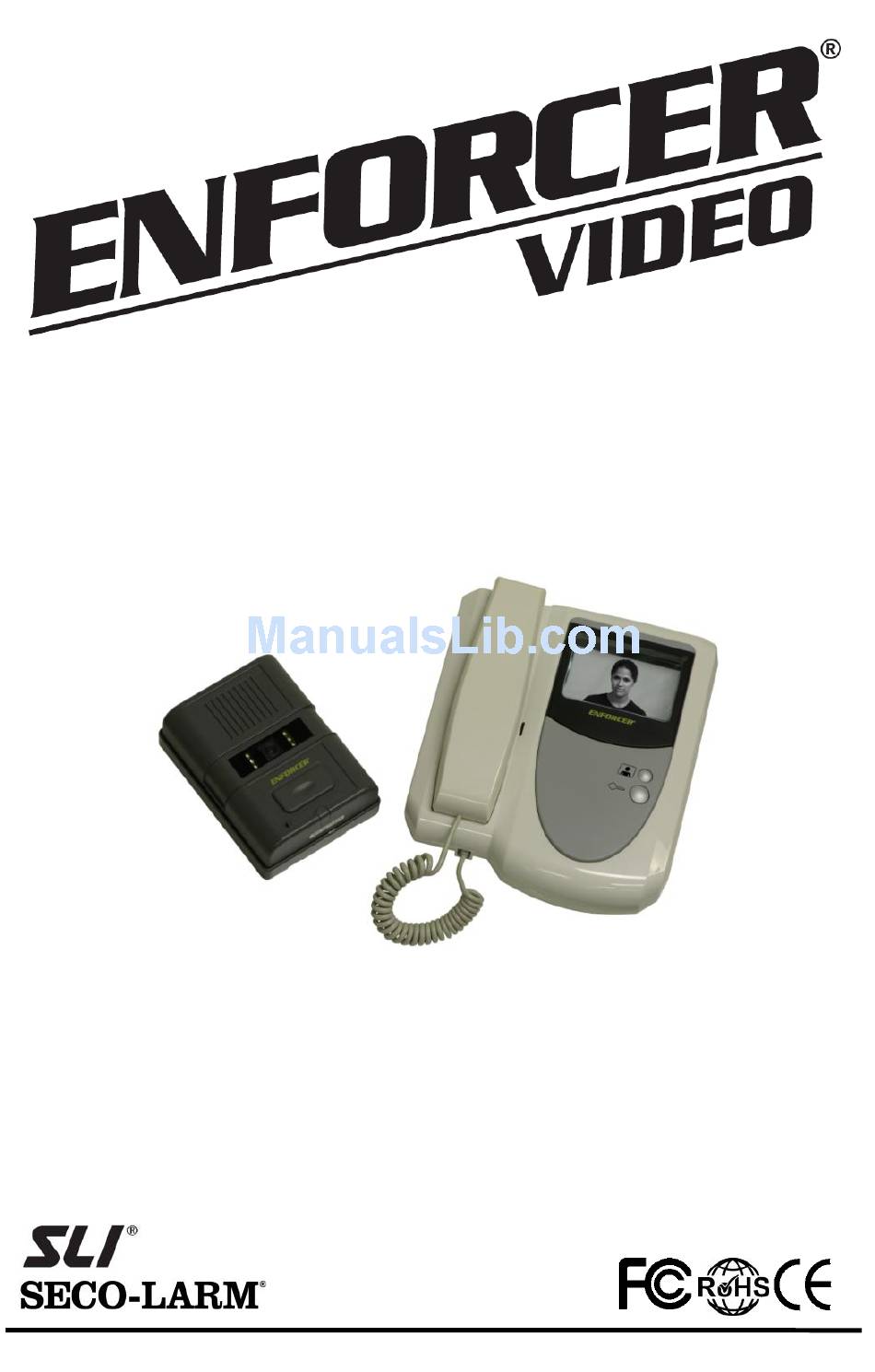

DP-121Q
Video Door Phone
The ENFORCER DP-121Q Video Door Phone is the easy, secure way to identify visitors.
Suitable for home or business use, the ENFORCER DP-121Q Video Door Phone can be
installed at doors or entrances. A crisp image of the visitor is shown in real-time on the
phone's monitor, while the camera's built-in LEDs provide a clear image even in low-light
conditions. A built-in microphone and speaker on the camera unit lets users communicate
with visitors. Authorized visitors can then be granted entry with a push of a single button.
Advertisement
Table of Contents
Related Manuals for SECO-LARM Enforcer DP-121Q
Summary of Contents for SECO-LARM Enforcer DP-121Q
- Page 1 DP-121Q Video Door Phone The ENFORCER DP-121Q Video Door Phone is the easy, secure way to identify visitors. Suitable for home or business use, the ENFORCER DP-121Q Video Door Phone can be installed at doors or entrances. A crisp image of the visitor is shown in real-time on the phone’s monitor, while the camera’s built-in LEDs provide a clear image even in low-light...
-
Page 2: Table Of Contents
ENFORCER VIDEO DOOR PHONE Table of Contents Features Specifications Parts List Overview Installation Notes Installation (monitor) Installation (camera) Features: Camera has 6 LEDs for nighttime operation. Remotely and securely talk to visitors and unlock doors, gates, etc. from the monitor. Easily connect an additional monitor and/or an additional camera. -
Page 3: Overview
Overview: Monitor Camera ENFORCER ® SECO-LARM U.S.A., Inc. ENFORCER Speaker ENFORCER VIDEO DOOR PHONE Display – Clearly shows an image of the visitor LED Indicators – Shows power and handset status Camera Button – Camera on/off, switches cameras Door Unlock – Grant access to visitors Ringer Volume –... -
Page 4: Installation Notes
ENFORCER VIDEO DOOR PHONE Installation Notes: 1. Unpack the video door phone and note the included parts. 2. Read this manual thoroughly. A clear understanding of the manual will make installation and operation much easier. 3. Find a good location to mount the monitor and camera. Make sure there is enough room to wire both units correctly with 22AWG 4-conductor wire. - Page 5 6. Plug the AC Power Adapter’s cable into the “Power” socket on the back of the monitor. 7. Run the wires going to the camera under the plastic hooks on the back of the monitor so that any tension on them will not be directly transferred to the plugs or sockets.
-
Page 6: Installation (Camera)
ENFORCER VIDEO DOOR PHONE Installation (camera): Position the camera so the area to be monitored is easily visible, typically 5 feet (150cm) above the ground (see Figure 3). Do not position the camera in direct sunlight or where it will be exposed directly to rain or snow. -
Page 7: Operating Instructions
Operating Instructions: 1. When the request-to-enter button on the camera is pressed, the monitor will ring twice. After ringing, any connected monitors will switch on. 2. When the handset is picked up, audio can be heard through the handset. NOTE: If two monitors are connected, the monitor that does not answer the call will turn off. -
Page 8: Led Indicator
ENFORCER VIDEO DOOR PHONE Operating Instructions (cont): Monitoring the entrance: 1. To see and hear what is going on at the entrance, lift the handset and press the Camera Button. The camera and monitor will automatically switch on. 2. If the optional additional camera is installed, pressing the Camera Button a second time will switch the image displayed on the monitor to the view from the other camera. -
Page 9: Additional Accessories
Sample Application: Up to 2 monitors can be connected to 1 or 2 cameras: Monitor 2 (optional) AC/DC Power Adapter (included) Camera 1 AC/DC Power Adapter (not included) Additional Accessories Available from SECO-LARM: The DP-121Q Video Door Phone can be expanded to connect an additional monitor and an additional camera. -
Page 10: Wiring Diagram
ENFORCER VIDEO DOOR PHONE Wiring Diagram – Connecting to an Electric Doorstike: SECO-LARM U.S.A., Inc. - Page 11 ENFORCER VIDEO DOOR PHONE Wiring Diagram – Connecting to an Electric Doorstike: Note: Professional installation recommended SECO-LARM U.S.A., Inc.
-
Page 12: Troubleshooting
ENFORCER VIDEO DOOR PHONE Troubleshooting: The screen displays no image The image is displayed incorrectly The image has poor contrast The screen image is dim The phone does not ring when request-to-enter button is pressed IMPORTANT Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to monitoring and recording audio and video signals.
