Summary of Contents for BH FITNESS G5 HA900FT

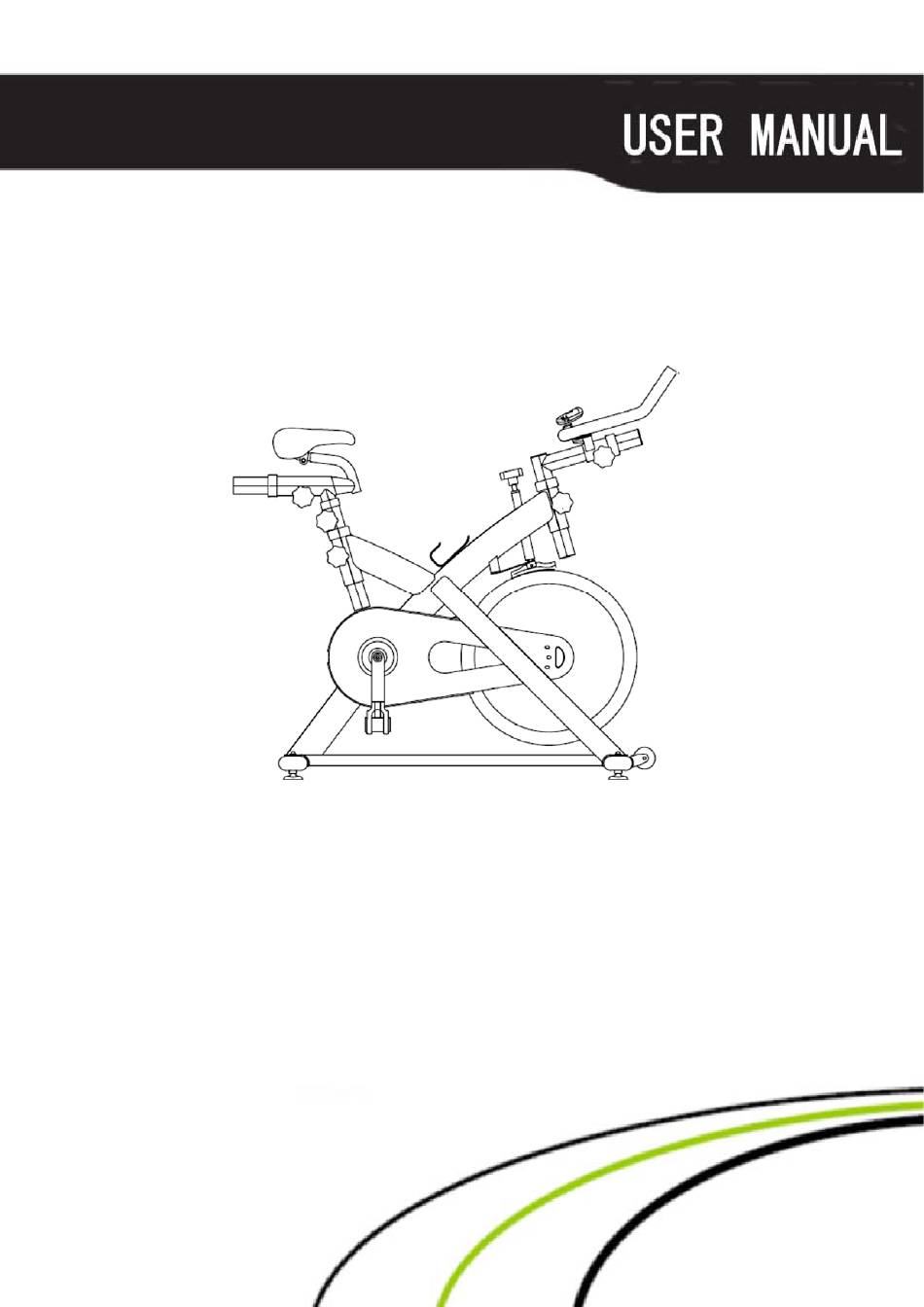

- Page 1 HA900FT Fitting G5...
-
Page 4: Assembly Drawing
Assembly Drawing... - Page 5 Assembly Step one Attach the front (16) and rear feet (12) to the frame using the nuts (8), washer (9) and bolts (10). Step two Attach the handlebar post (37) inserting into the head tube on the frame. Using knob to adjusts and tightens the height in proper position.
-
Page 6: Exploded Drawing
Exploded Drawing... -
Page 7: Part List
Part list No. Name No. Name Unit Unit Saddle PC 31 Brake system Alloy bind clip ( R) & ( L ) PC 32 Bolt for front chain guard Knob spring PC 33 Front belt guard Knob w/washer PC 34 Bottle Crank arm set SET 35... -
Page 8: Instruction Use
Bottle cage PC 90 Sensor and cable Screw for bottle cage Instruction Use 1) The model HA900FT is designed to be used as a “spin “ cycle in fitness studios and health clubs. It has a fixed wheel driven flywheel and should only be used under professional supervision. 2) Installation –... -
Page 9: Maintenance Chart
Maintenance Chart DESCRIPTION Daily Weekly Monthly Quarterly Annually Keep machine clean: Wipe machine down with clean & dry fabric to clear dirt & sweat. Spray with WD40 or similar on the seat post set, handlebar set (Don’t spray on the main frame) Visual check Check security of handle bar post &... -
Page 10: Limited Warranty
Limited Warranty This product carries the following guarantee against manufacturing defects: * Frame is warranted for 2 years from the date of purchase. * Components are warranted for 1 year. * Warranty is only valid for the original purchaser. * Labor and freight charges are not included. * Normal wear, neglect, abuse, accidents, improper assembly or maintenance, or the installation of parts or accessories not compatible with the original intended use of the bike, as sold, are not covered by the warranty. - Page 12 HA900FT Fitting G5...
