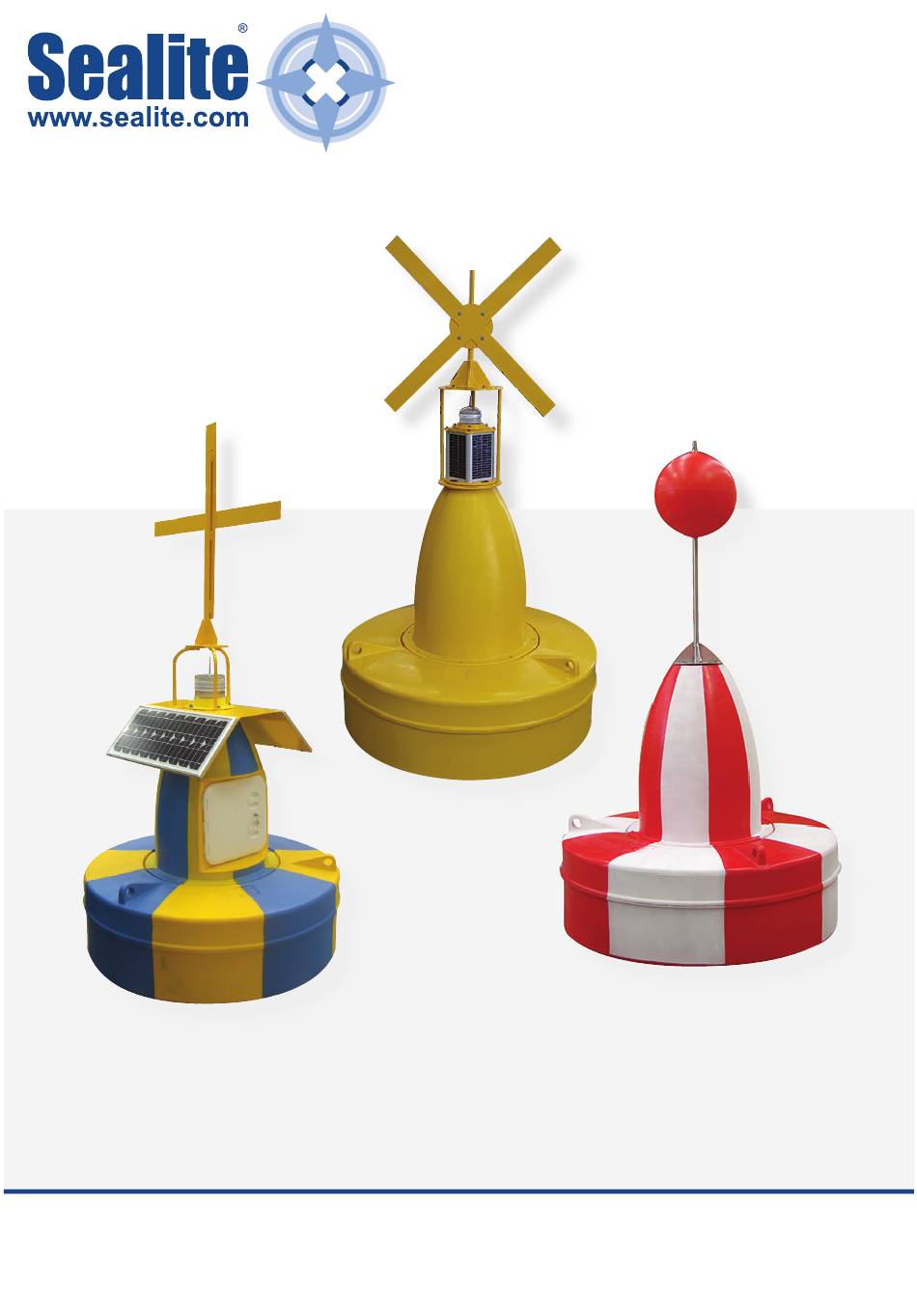

- Page 1 SL-B1250 1250mm Diameter Navigation Buoy INSTALLATION & SERVICE MANUAL V2-2...
- Page 2 Product Features & Technical Specifications Optional top marks and lights available Made from strong, durable UV-stabilised virgin polyethylene Foam filled with highly buoyant closed-cell polyurethane Rotationally-moulded to 9mm (float section) and 316 grade stainless- 7mm (top section) steel mooring post with wall thickness 18mm lifting eye Mooring Eye,...
-
Page 3: Table Of Contents
Mooring Instructions ..............Page 8 Marine Buoy Maintenance ..............Page 10 Sealite Buoy Warranty ..............Page 11 Seamoor™ - Sealite Mooring Calculator As a service to valued customers, Sealite has developed an advanced mooring calculator based in IALA guidelines and experience from major users. -
Page 4: Introduction
Sealite Pty Ltd has been manufacturing buoys for over 25 years, and particular care has been taken to ensure your buoy gives years of service. As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO9001:2015 quality management system. -
Page 5: Sl-B1250 Navigation Buoy

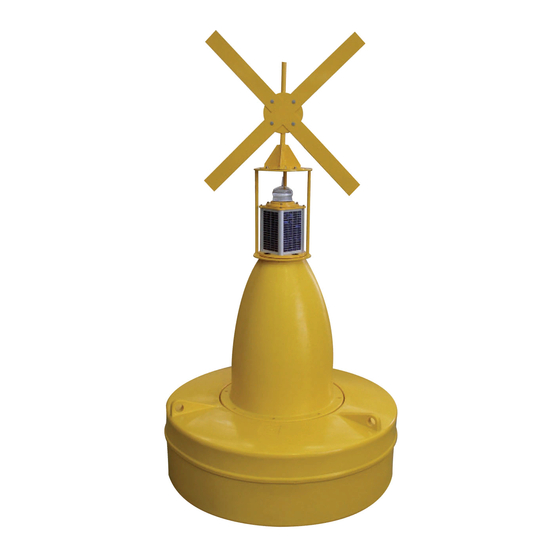

SL-B1250 1250mm Diameter Navigation Buoy SL-B1250 Navigation Buoy The Sealite SL-B1250 is a 1250mm diameter Navigation Buoy and has proven its superior performance in many parts of Australia and around the world for long-range river and sea navigation. The base is moulded in one-piece, strong , UV-stabilised polyethylene - filled with highly buoyant polyurethane. -
Page 6: Product Components
SL-B1250 Product Components Description SL-B1250 Float (with internal fill) SL-B1250 Mooring Post (standard length shown) S/S Socket Head Cap Screw, Ø8 x 20 (min Grade 70) S/S Spring Washer, Ø8 S/S Washer, Ø8 x 31 OD SL-B1250 Cone or SL-B1250 Can (without internal brace) S/S Bolt, Ø10 x 45 (min Grade 70) -
Page 7: Assembly Instructions
OD flat washer, M8 spring washer and M8 nuts. • Check the light operation. Cover light with a dark jacket or towel and allow 60 seconds for the light to activate. • Fit the D shackle to the mooring point. Latest products and information available at www.sealite.com... -
Page 8: Mooring Instructions
SL-B1250 Mooring Instructions Check Components • Unpack all Mooring and check all components are complete and correct. Prepare & Attach Chain • Fit and secure 1 x Ø16mm Shackle and 1 x Ø16mm Swivel Eye to the base of the bridle. - Page 9 2mm S.S. wire 16mm Stainless Steel Shackle, Typical 16mm Stainless Steel Swivel (Jaw & Eye) 16mm Stainless Steel Chain (see table) Mooring Block, 100kg Airweight. Approximate sizes shown for a square concrete block. Latest products and information available at www.sealite.com...
-
Page 10: Marine Buoy Maintenance
Marine Buoy Maintenance Sealite Marine Buoys are designed to require very little maintenance. We recommend the buoy be inspected annually. Inspection may need to increase depending on the local conditions and the position of the buoy. IALA Recommendation AISM E-107 suggests moorings are inspected annually. -
Page 11: Sealite Buoy Warranty
SL-B1250 1250mm Diameter Navigation Buoy Sealite Buoy Warranty Refer to Sealite website: www.sealite.com Latest products and information available at www.sealite.com... - Page 12 We believe technology improves navigation sealite.com info@sealite.com Sealite Pty Ltd Sealite Asia Pte Ltd Sealite United Kingdom Ltd Sealite USA LLC Australia Singapore +61 (0)3 5977 6128 +65 6908 2917 +44 (0) 1502 588026 +1 (603) 737 1311...
