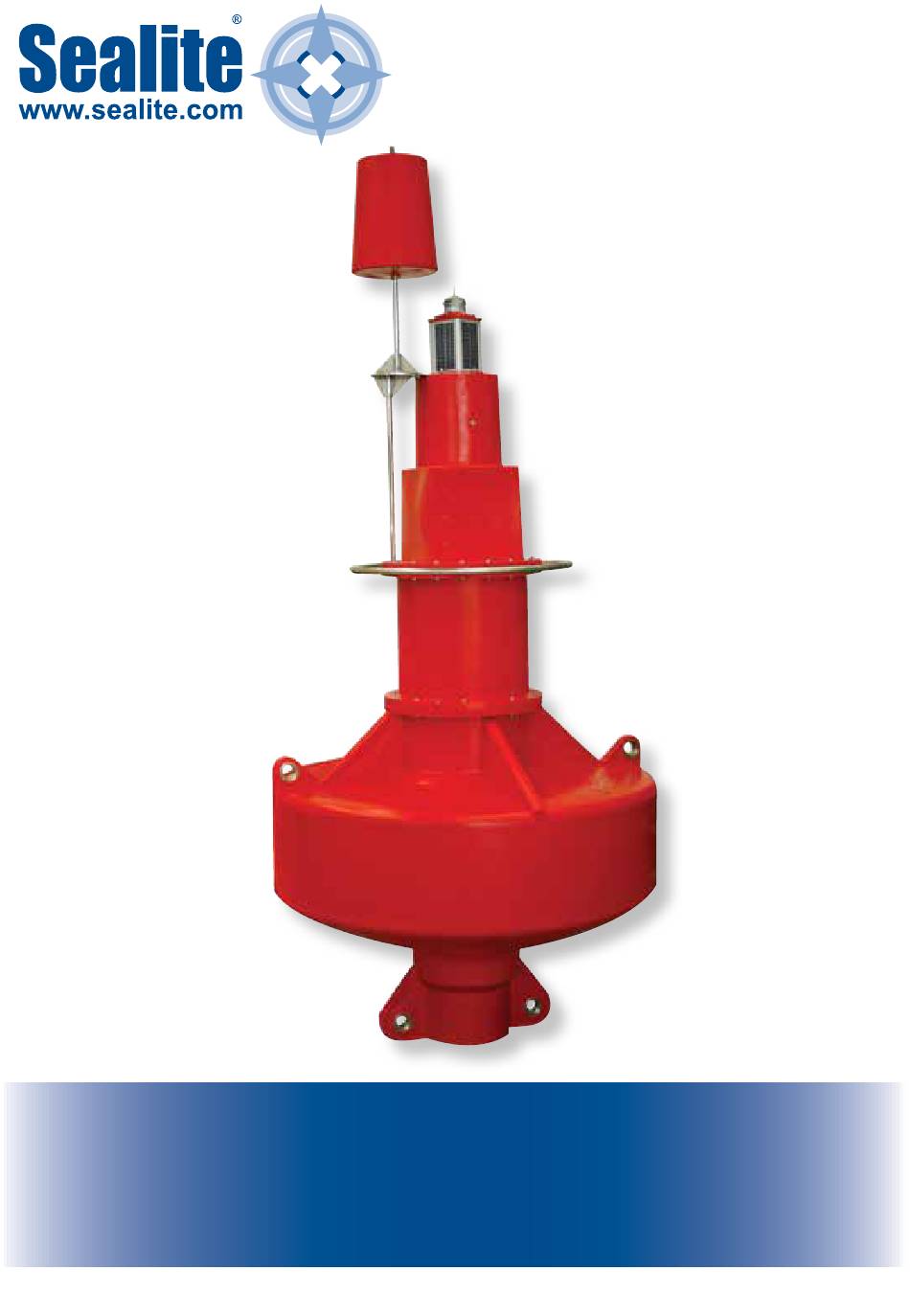

- Page 1 POSEIDON-1750 Ocean Buoy Installation & Service Manual Version 1.5...
-
Page 3: Table Of Contents
Nov 2009 A. Dixon Logo and Warranty Update July 2010 K. Paton Update: Spec Table May 2012 J. Dore Breather Unit September 2013 P. Rainey Delete back page,spec and warranty statement December 2018 Latest products and information available at www.sealite.com... -
Page 4: Introduction
Sealite Pty Ltd has been manufacturing buoys for over 25 years, and particular care has been taken to ensure your buoy gives years of service. As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO9001:2008 quality management system. -
Page 5: Poseidon-1750 Ocean Buoy
POSEIDON-1750 Ocean Buoy POSEIDON-1750 Ocean Buoy The Sealite POSEIDON-1750 Buoy is rotationally-moulded from UV-stabilised virgin polyethylene and has been specifically designed to withstand the harsh marine environment and operate reliably with minimal maintenance. Constructed from 3 parts; a floatation section, mid-section, and top section, individual colouring of each component enables the POSEIDON to be configured to suite a range of IALA recommendations and guidelines. - Page 6 POSEIDON-1750 Ocean Buoy Latest products and information available at www.sealite.com...
-
Page 7: Product Components
G316 S/S Flat Washer G316 S/S Spring or Locking Washer G316 S/S Plain Nut Handrail Day Mark Mounting Plate POSEIDON Lug Bushes Galvanised Grade M Shackle Ø32mm with 35mm OD pin inside widtgh 60mm x 114mm G316 S/S = Grade 316 Stainless Steel Latest products and information available at www.sealite.com... -
Page 8: Assembly Instructions
Tighten the Nut • Fit 2 x Ø25mm Shackles to the Lifting Eyes on the Float Section. • Lift Buoy up to access the Lug Bushes at the base of the Buoy. • The buoy is now ready for the Mooring Assembly to be fitted. Latest products and information available at www.sealite.com... - Page 9 Installation Instructions for Breather Units (For Products which Contain Sealite’s Power Packs) Unscrew the white plug located at the side/base of the buoy Apply a small amount of marine grade silicon adhesive to the thread of the breather valve Carefully screw in the breather unit ensuring that the arrow’s direction is pointing down.
-
Page 10: Mooring Assembly Instructions
Chain Length Guide Recommended Maximum Length of Chain Water Depth Best Practice 3 x Water Depth (Up to 6kts current) For Reduced Water Circle 2.5 x Water Depth (Current 2kts to 4kts) For Minimum Water Circle 2 x Water Depth (use only where current <2kts) Latest products and information available at www.sealite.com... -
Page 11: Mooring Diagram
POSEIDON-1750 Ocean Buoy POSEIDON-1750 Mooring Diagram Latest products and information available at www.sealite.com... -
Page 12: Marine Buoy Maintenance
POSEIDON-1750 Ocean Buoy Marine Buoy Maintenance Sealite Marine Buoys are designed to require very little maintenance. We recommend the buoy be inspected annually. Inspection may need to increase depending on the local conditions and the position of the buoy. IALA Recommendation AISM E-107 suggests moorings are inspected annually. -
Page 13: Sealite Buoy Warranty
POSEIDON-1750 Ocean Buoy Notes Sealite Buoy Warranty Refer to Sealite website:www.sealite.com Latest products and information available at www.sealite.com...
