Sealite SLB750 Installation & Service Manual

Marker buoy suited to fast water
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SLB750
Marker Buoy Suited to Fast Water
Installation & Service Manual
Version 3.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLB750 and is the answer not in the manual?

Questions and answers

Related Manuals for Sealite SLB750

Summary of Contents for Sealite SLB750

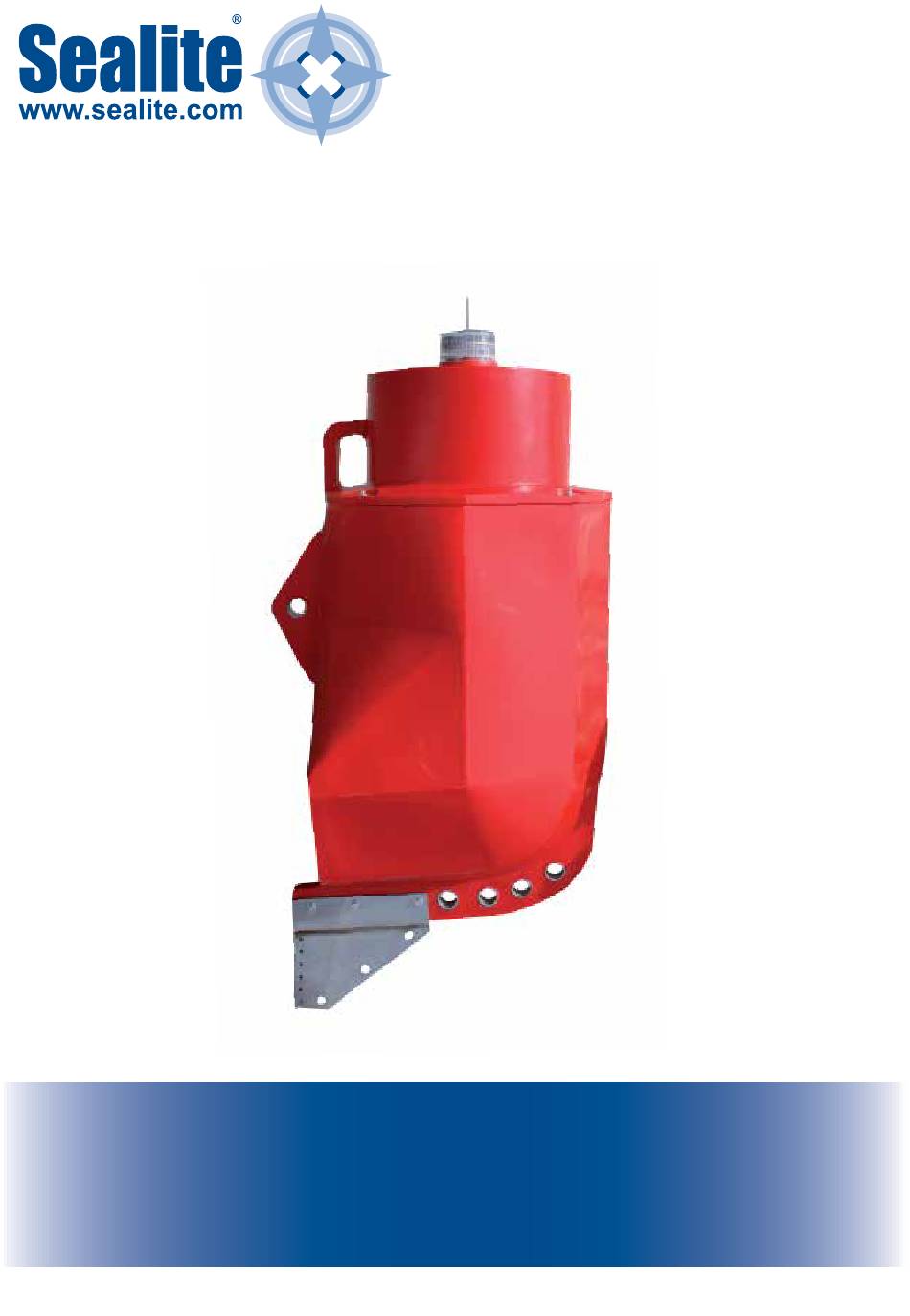

  • Page 1 SLB750 Marker Buoy Suited to Fast Water Installation & Service Manual Version 3.1...
  • Page 2 1 piece internal bracing connects 6mm wall mooring and lifting eyes thickness Multiple mooring eyes to suit various water speeds and depths Stainless steel keel 4 x Ø 48.5-42mm Wide Mooring Eyes 6 x Ø 9.5 3 x Ø 24.5 Counterweight holes SLB750-CONE SLB750-CAN...

  • Page 3: Table Of Contents

    Sealite Buoy Warranty ..............Page 11 ™ - S eamoor ealite ooring alCulator As a service to valued customers, Sealite has developed an advanced mooring calculator based in IALA guidelines and experience from major users. The system simulates site mooring based on local conditions.

  • Page 4: Introduction

    Sealite Pty Ltd has been manufacturing buoys for over 25 years, and particular care has been taken to ensure your buoy gives years of service. As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO9001:2008 quality management system.

  • Page 5: Slb750 Marker Buoy

    SLB750 Marker Buoy SLB750 Marker Buoy The Sealite SLB750 is a large 750mm dia. marker buoy designed for a variety of applications and is particularly suited to fast water currents of up to 6 knots. The unique one piece float section has an internally integrated bow and keel which ensures the buoy remains stable during fast currents.

  • Page 6: Product Components

    SS Penny Washer, Ø10 x 31 OD SS Spring Washer, Ø10 SS Plain Nut, Ø10 SLB750 Cone SLB750 Can SS Socket Head Cap Screw, Ø8 x 40 SS Spring Washer, Ø10 SS Penny Washer, Ø10 x 31 OD Latest products and information available at www.sealite.com...

  • Page 7: Assembly Instructions

    • Check all components are complete and correct • Contact your local Distributor or Sealite for any missing parts. Fitting the Keel • Turn the buoy up-side down on the flat top surface. Make sure this is done on level ground so the buoy is stable.

  • Page 8: Mooring Instructions

    Authorities. The Sealite SLB750 Marker Buoy is designed to ride on the current in a vertical position, this will allow any lantern fitted to work correctly and be seen from any direction.
  • Page 9 The chain is correctly sized, the buoy is not being dragged under the water or bobbing excessively. • The counterweight on the keel is working correctly, being positioned correctly for the prevailing conditions. • The sinker is weighted correctly to keep the buoy correctly positioned during all tidal currents Latest products and information available at www.sealite.com...

  • Page 10: Marine Buoy Maintenance

    SLB750 Marker Buoy Marine Buoy Maintenance Sealite Marine Buoys are designed to require very little maintenance. We recommend the buoy be inspected annually. Inspection may need to increase depending on the local conditions and the position of the buoy. IALA Recommendation AISM E-107 suggests moorings are inspected annually.
