Basher NITRO CIRCUS Instruction Manual

1;8 4wd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SAFETY PRECAUTIONS

Advertisement

Table of Contents
loading

Related Manuals for Basher NITRO CIRCUS

Summary of Contents for Basher NITRO CIRCUS

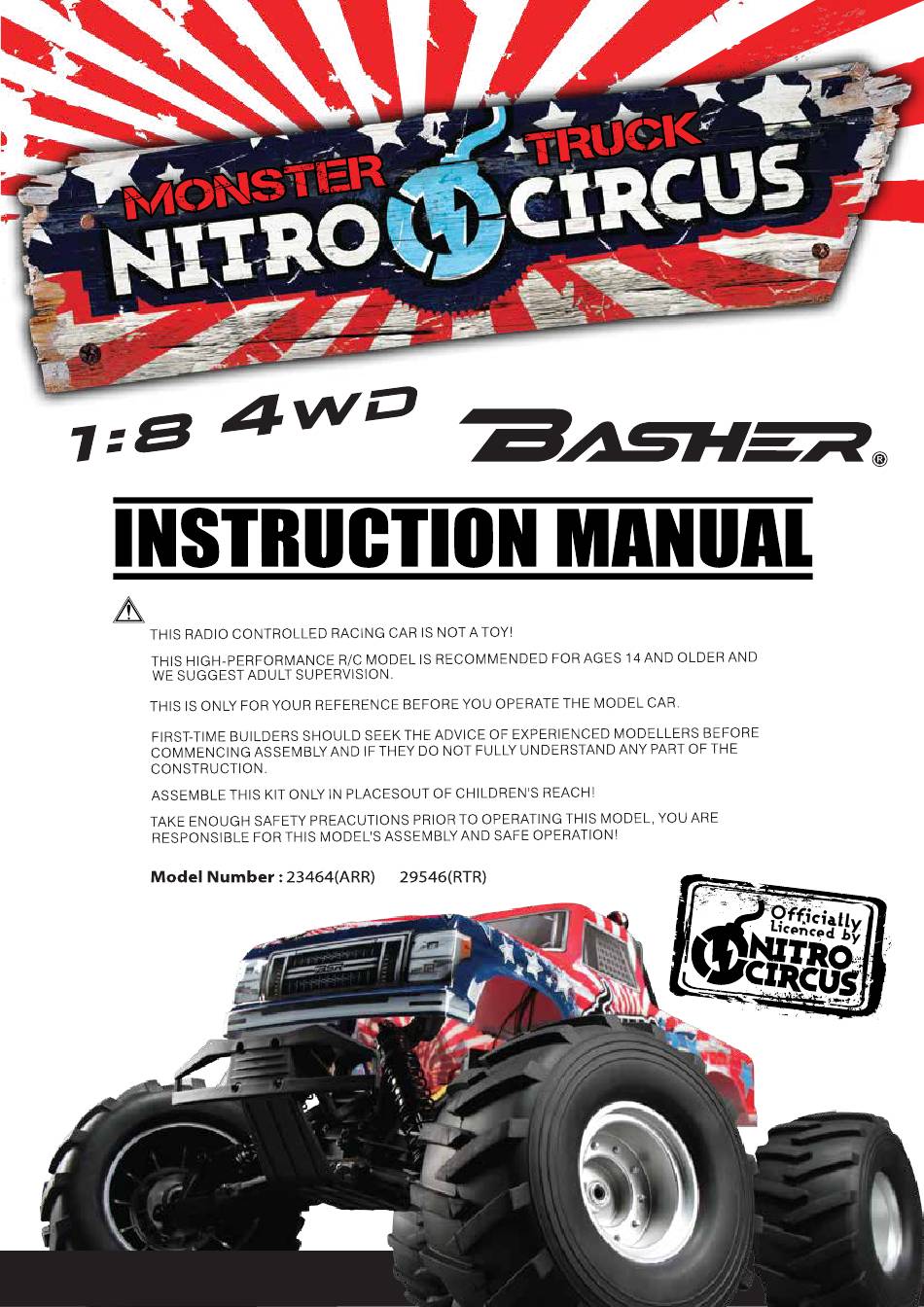

  • Page 1 SAFETY PRECAUTIONS...

  • Page 2: Please Read Before Starting

    BEFORE YOU RUN YOUR CAR Required equipement for operation 1. Tools required for building and maintenance: Precision ruler or caliper Needle nose pliers Hobby knife Wire cutters Hobby scissors Philips screwdriver Thread locking compound Hex wrench Cross wrench CA glue & rubber cement IMPORTANT!!! Check all the screws are tight before using the car! Check all the screws are still tight after every battery...

  • Page 3: Important Points To Remember

    IMPORTANT POINTS TO REMEMBER Always, turn on your transmitter first before turning on your vehicle receiver switch. When turning an R/C vehicle off, the order is just the opposite: Turn the receiver switch off first and then turn the trans- mitter off.

  • Page 4: Charging Your Vehicle

    2. CHARGING YOUR VEHICLE Charge your vehicle's battery pack. Connect the charger in the box to your battery pack(it will only plug in one direction) and then plug the charger into a standard wall outlet. Charging takes approximately 2-3 hours. When the battery is fully charged, unplug the charger and connect the battery to your speed control.
  • Page 5 For this purpose, proceed as follows: If the rechargeable battery pack was taken directly from the vehicle and is still hot, wait until the rechargeable battery pack has cooled down before you recharge.(min. of 5-10 minutes) Connect the plug-in charger with a proper mains socket. Connect the rechargeable battery pack with correct polarity with the plug-in charger.

  • Page 6: Specifications

    SPECIFICATIONS 【 】 Model 150A Cont./ Burst Current Resistance 1/5, 1/8 on-road, off-road and 1/8 on-road, off-road and Suitable Car monster Super powerful monster RTR applications applications Sensorless Brushless Motors ≥4.5T, KV≤3000 ≥6T, KV≤2400 (Works with 4S Lipo) Suitable Motor The 80A ESC works ≥6T, KV≤2400 with 4S Lipo...
  • Page 7 If there are 2 battery packs need to be connected in series, please refer to the following picture: 2. Throttle Range Setting (Throttle Range Calibration) In order to make the ESC fit the throttle range, you must calibrate it when you begin to use a new ESC, or a new transmitter, or change the settings of neutral position of the throttle stick, ATV or EPA parameters, etc.
  • Page 8 C) Set the 3 points according to the steps shown as the pictures on the right side. 1) The neutral point Move the throttle stick at the neutral point, and then click the SET key, the green LED flashes 1 time. 2) The end point of forward direction Move the throttle stick at the end point of forward direction, and then click the...
  • Page 9 【PROGRAM THE ESC】 Programmable Items List (The italics texts in the form are the default settings) Programmable Options Items Basi c Items Fo rward /R ever Forword Forward F orward and 1. R unning Mode without brake with Brake R evers e with B rake and Reverse 2.D rag Brake F orc e...
  • Page 10 There are 6 preset options for this item. You can customize the cutoff threshold by using an advanced LCD program box (optional equipment) to trim it with a step of 0.1V, so it will be more suitable for all kinds of batteries (NiMH, NiCd, Li-ion, Lipo, LFP,etc). Please always keep in mind that the customized value is not for each cell, it is for the WHOLE battery pack.

  • Page 11: Alert Tones

    2.9. The “timing” item is usable for sensorless brushless motors. There are many Timing: differences among structures and parameters of different brushless motors, so a fixed timing ESC is difficult to compatible with all brushless motors. It is necessary to make the timing value programmable.

  • Page 12: Troubleshooting

    【TROUBLE SHOOTING】 Trouble Possible Reason Solution After power on, motor doesn’t The connections between Check the power connections work, and the cooling fan battery pack and ESC are Replace the connectors doesn’t work not correct After power on, motor can’t work, but emits “beep-beep-, Input voltage is abnormal, Check the voltage of the battery...
  • Page 13 Note4: In the program process, when the LED is flashing, the motor will emit “Beep” tone at the same time. If the number “N” is bigger than the “5”, we use a long time flash and long “Beep---” tone to represent “5”, so it is easy to identify the items with bigger series number.
  • Page 14 2.4GHz radio manual 1) Transmitter 2) 2.4GHz Frequency Pin Setup Declaration Of Using Our Products Even if the vehicle is quite small at the first glance, there is risk of injuries in the case of crash with people(or animals), because of the high acceleration capacity and the high achievable speed. Sharp edges and rotating parts also present a high danger! This is why you should drive very responsibly and carefully, this is especially the case for inexperienced drivers.
  • Page 15 Diff.Gearbox completed 32859 BS32632 BS30095 BS32032 (hop ups) BS32868 BS32897 BS30095 BS32848 BS32858 BS32980 BS32632 BS32865 BS32895 BS32868 BS32858 BS32830 BS32848 BS32897 32859 BS32032(hop ups) 2.Gearbox completed BS32862 BS33166 BS32861 BS32927 BS32864 BS32848 BS32829 BS32983 BS32902 BS32829...
  • Page 16 Aluminum Shock Components BS32928 BS32833 BS32891 BS32896 BS32833 BS32891 4.Aluminum Shock Assembly BS32892 Or BS32034(hop ups) BS32833 BS32891 32890 Or BS32041( hop ups 33520 Or hop ups BS33550( BS33518 BS32833 BS32891 32833 Or hop ups BS32035( 32877 Or BS32833 hop ups BS32046( - 15-...
  • Page 17 5.Central Diff.Box completed 33507 BS33535(hop ups) BS32178 BS33510 BS30074 BS33517 BS32726 BS32897 BS33516 33525 Or BS30095 BS 3538 (hop ups) BS33506 BS32868 32867 Or BS30074 BS 2033 (hop ups) BS32858 BS30095 BS32848 BS32632 BS32895 32866 Or BS32865 32981 (hop ups) BS32868 BS32897 BS32858...
  • Page 18 7.Servo Saver completed BS32823 BS32879 BS32824 BS32823 BS32880 BS32823 BS32879 BS32878 BS32823 BS32028(hop ups) BS32880 BS32823 BS32824 BS32823 BS32823 BS 2988 BS32825 BS32824 BS32825 8. Motor BS32920 BS33511 B1109 BS33524 BS33511 - 17-...
  • Page 19 9.Body completed B1148 BS33527 BS32902 BS30837 B1148 B1148 BS33527 BS33527 B1148 BS33527 BS33527 BS30099 B0052P 10.Completed Truck BS32612 BS32612...
  • Page 20 9.A2020 Exploded view BS30083 BS32833 BS32892 BS32726 BS32726 BS30837 BS32911 BS33166 BS30837 BS33166 BS33510 BS32906 BS33500 BS33513 BS33533 BS32903 BS32903 BS30083 BS32903 BS33533 BS33204 BS33533 BS32832 BS33166 BS32908 BS33519 BS30841 BS30095 BS33533 BS32903 BS33166 BS32877 BS32877 BS32851 BS32829 BS33510 BS30240 BS32612 BS33532 BS33210...
  • Page 21 9.A2020 Upgraded Exploded view BS30083 BS32833 BS32034 BS32726 BS32726 BS30837 BS32911 BS33166 BS33166 BS30837 BS33510 BS32906 BS33536 BS33513 BS33533 BS32903 BS32903 BS30083 BS32903 BS33519 BS33533 BS33204 BS33533 BS32832 BS33166 BS32908 BS33547 BS30841 BS30095 BS33533 BS32903 BS33166 BS32046 BS32046 BS32851 BS32829 BS33510 BS30240 BS32612...
  • Page 22 Nitro Circus spare parts list BS30074-ball BS30081-Pin A BS30083-M3 nylon BS30087-M4*4 grub BS30095-ISO3*15 BS30099-BT3*10 bearingΦ6*Φ12*4 10pcs nut 10pcs screw 10pcs FH screw 10pcs BH screw 10pcs BS30102-BT3*22 BS30103-BM3*6 BS30104-BM3*12 BS30180-Inner BS30240-FH cross BS30791-FH cross screw 5pcs screw 10pcs screw 10pcs...
  • Page 23 BS32851-Front BS32851-Front BS32855-pin for BS32855-pin for BS32857-Rear BS32857-Rear BS32858-Diff.gear BS32858-Diff.gear BS32859-output BS32859-output BS32861- BS32861- sway bar sway bar bearing--4pcs bearing--4pcs wheel shaft--2pcs wheel shaft--2pcs shaft--2pcs shaft--2pcs Alum.washer-4pcs Alum.washer-4pcs BS32862- BS32862- BS32864-output BS32864-output BS32865-Diff.box BS32865-Diff.box BS32866-spur gear BS32866-spur gear BS32867- BS32867- BS32868-Diff.case BS32868-Diff.case Dogbones cup...
  • Page 24 BS32928-nylon BS32980-arc BS32983-arc drive BS32988-O-ring BS33111-upper BS33166-BH cross nut M2.5--10pcs gear 10pcs screw BM3*8-- driven gear， linkage rod， 10pcs output shaft steering linkage rod washer BS33204-F/R BS33208-Hexagon BS33210-FH cross BS33230-Front L/R BS33231-Rear L/R BS33232-F/R bumper plate screw-M3*40 4pcs screw ISO4*16 susp.arms lower susp.arms、...
  • Page 25 BS33551-O-ring for B1148 -LED light B0052P-body,body mount,battery holder,bumper diff.case 8pcs decal,B clip for body cover，battery complete clamping piece plate holder,etc. Nitro Circus hop up list BS32028-Steering BS32029-wheel BS32032-output BS32033-Diff.case BS32034-shock BS32035-upper linkage plate-1pc hub-2pcs shaft-2pcs output shaft-2pcs holder-2pcs shock holder-2pcs...
