Subzero Wolf UC Series Service Manual page 5

Component Removal
Ice Bucket (Model UC-24C)
To remove the ice bucket, grab the handle that is mold-
ed into the bottom front of the bucket and pull bucket
forward (See Figure 7-37).
Refrigerator Liner Cover (Model UC-24C)
Screws pass though the refrigerator liner cover into the
rear wall, securing the cover to the rear wall. The liner
cover is further secured by slots in its side flanges fitting
over pegs at the bottom of each shelf ladder.
NOTE: The refrigerator compartment thermistor passes
through a key-hole slot in the refrigerator liner cover
and is attached to the side wall with a screw and P-
clamp.
To remove the refrigerator liner cover (See Figure 7-
38):
1. Extract the mounting screws.
2. Lean top of refrigerator liner cover forward slightly
and work the compartment thermistor wire out of
the key-hole slot.
3. Continue leaning top of refrigerator liner cover for-
ward, then lift it up off of locator pegs at the bottom
of each shelf ladder
Refrigerator Compartment Thermistor
(Model UC-24C)
The refrigerator compartment thermistor is attached to
the refrigerator compartment right side wall, just below
the cabinet slide, with a screw and P-clamp. The ther-
mistor wires run direct to the electronic control board.
To remove a compartment thermistor, first remove the
refrigerator liner cover, then (See Figure 7-39):
1. Extract P-clamp mounting screw and pull thermistor
body from P-clamp.
2. Cut thermistor wire leads six (6) to twelve (12) inch-
es (152 mm - 305 mm) from the point where they
enter the compartment, then pull thermistor from
compartment.
#7031931 - Revision A - June, 2014
UNDER COUNTER SERIES
UNDER COUNTER SERIES
7-16
(SWS #3603000)
(SWS #3603000)

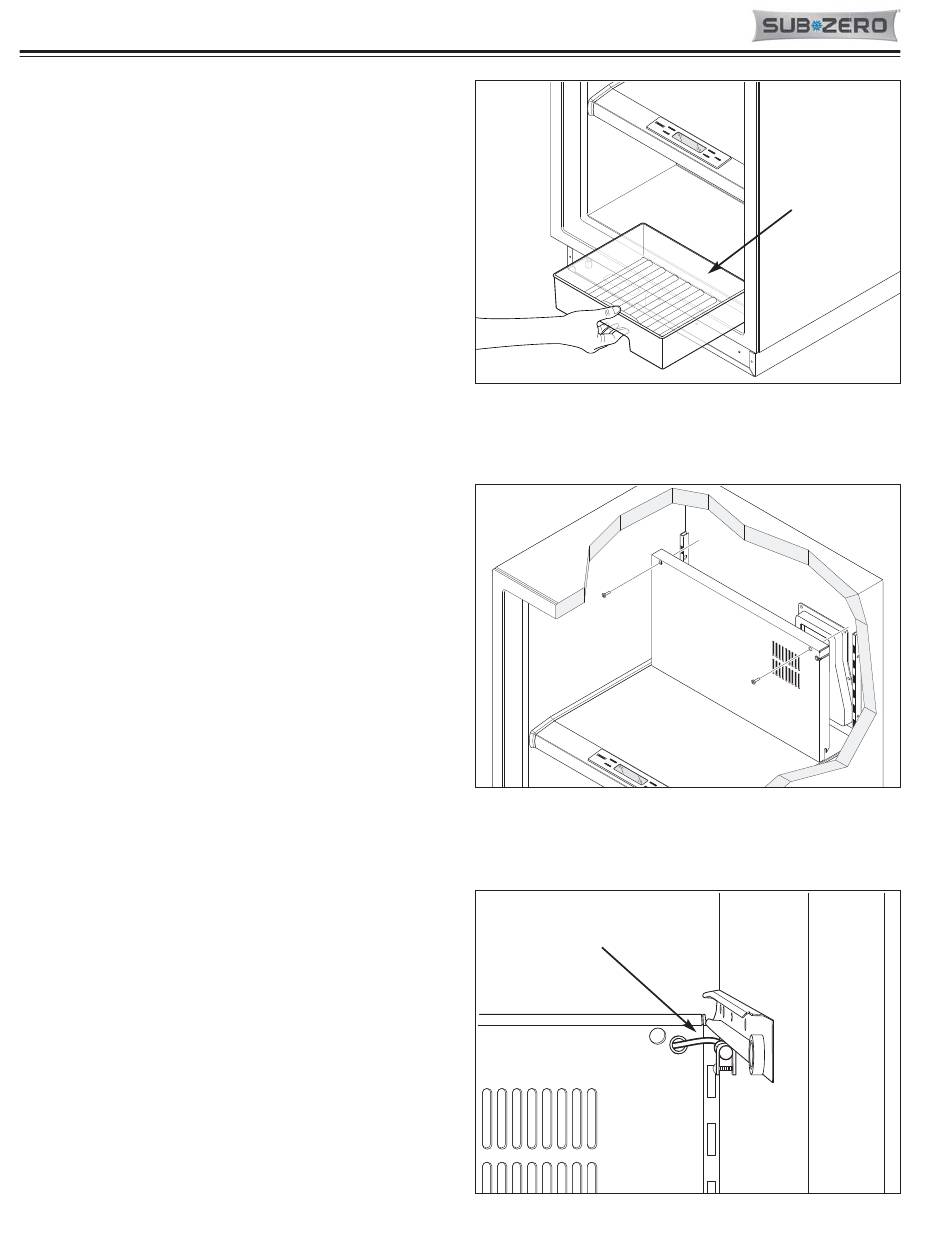

Figure 7-37. Ice Bucket Removal
Figure 7-38. Refrigerator Liner Cover Removal
Refrigerator
Compartment
Thermistor
Figure 7-39. Refrigerator Compartment Thermistor
Ice Bucket
R e
f r i g
e r a
L i n
e r t o r
C o
v e r
