MODEL UC-24C EXTERIOR COSMETIC AND MECHANICAL COMPONENTS
Kickplate (Model UC-24C)
To remove the kickplate, extract the mounting screws
located at each end of the kickplate and pull the kick-
plate forward. (See Figure 7-28)
Door Switch and Switch Box Bracket Assembly
(Model UC-24C)
The door switch is inserted through the hole in the
switch box bracket assembly Magnet and tabs on the
sides of the switch hold the switch in place. The
assembly is attached to the bottom of the cabinet with
screws.
To remove the switch and switch box bracket assembly
(See Figure 7-30):
1. Extract switch box bracket assembly mounting
screws.
2. Pull assembly down, then rotate back to front.
3. Disconnect electrical leads from switch.
4. Depress tabs on side of switch while pushing switch
out of hole.
Door Gasket (Model UC-24C)
An extruded dart at the back of the door gaskets is
pressed into retaining channels that are molded into
door liner.
To remove the door gasket, pull the gasket from the
retaining channels (See Figure 7-31).
(SWS #3603000)
(SWS #3603000)
MODEL UC-24C
Mounting Screw
(1 of 2)
Kickplate
Switch
Figure 7-30. Light Switch & Switch box
Door Gasket
7-13
Component Removal

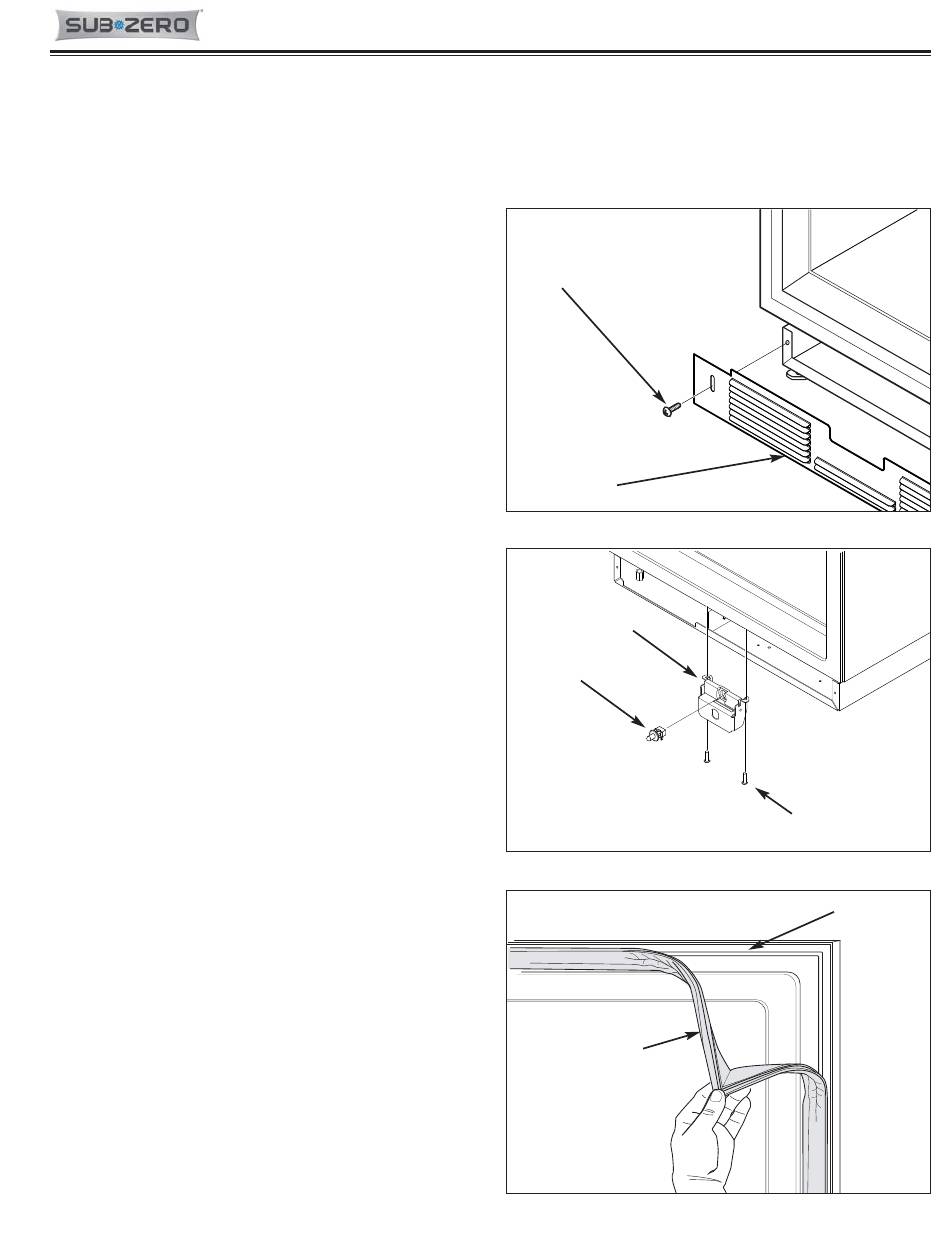

Figure 7-28. Kickplate Removal
Bracket
Figure 7-31. Gasket Removal
