Warn HUB Quick Start Manual

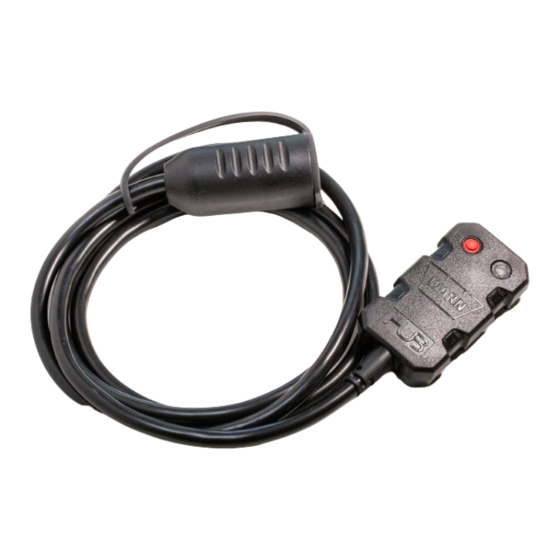

Axon receiver for winches
Hide thumbs Also See for HUB:
1
2
3
4
5
6
7
8
9

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Table of Contents

Enlarged version
KIT CONTENTS
1.
Download the WARN® HUB App
from the App Store or Google Play.
Data rates may apply.
Apple is a trademark of Apple Inc., registered in the U.S. and in other countries. App
Store is a service mark of Apple Inc.
Google Play is a trademark of Google Inc.
2.
Determine mounting location and wire routing path.
Recommendation: Under vehicle hood, on vehicle frame
or along other wiring bundles. Avoid sharp edges, heat
and moving parts.
Quick Start Guide
AXON WARN® HUB RECEIVER
BEFORE YOU BEGIN
WARN HUB
MOUNT
3.
Using the included zip-ties, mount HUB Receiver firmly
to vehicle.
4.
Route the plug ends of the HUB to the vehicle accesso-
ry wire harness connections. NOTE: Make sure to route
wires/cables away from sharp edges, heat and moving
parts.
NOTE: Zip tie cables to vehicle in regular intervals to keep cables secure and
in place.
WIRE
5.
•
Disconnect the vehicle accessory wire harness
from the winch control switch.
•
Plug one HUB Receiver connector into the winch
control switch.
•
Plug remaining HUB Receiver connector into the
accessory wire harness.
NOTE: Image
shows HUB
Receiver
connection at
switch. The
HUB Receiver is
also adaptable
Accessory Wire Harness
to winch
connection if
preferred.
Winch
Control
Switch
HUB Receiver
7.
8.
Press and hold button on HUB
Open app on phone and follow
Receiver until blue light flashes
prompts.
(approximately 2 seconds) and then
release button.
CUSTOMER SERVICE
WARN INDUSTRIES, INC. 12900 S.E. Capps Road,
Clackamas, OR USA 97015-8903, 1-503-722-1200
Customer Service: 1-800-543-9276
Dealer Locator Service: 1-800-910-1122
Quick Start Guide
AXON WARN® HUB RECEIVER
POWER
6.
Turn vehicle power on.
NOTE: The HUB Receiver is active when
the yellow light is on.
I
0
PAIR/CONNECT
9.
When light on the HUB Receiver
turns green, you are connected.
Continue following the instructions
through your app.
x
I agree to the latest
Privacy Policy,
You are now connected!
Terms of Use and
Safety Agreement
Continue
Continue
