Warn HUB Quick Start Manual

KIT CONTENTS
1.
Download the WARN® HUB App (HUB
App) from the App Store or Google Play.
Data rates may apply.
Apple is a trademark of Apple Inc., registered in the U.S. and in other
countries. App Store is a service mark of Apple Inc.
Google Play is a trademark of Google Inc.
2.
Determine mounting location and wire routing path.
Recommendation: Under vehicle hood, on vehicle frame
or along other wiring bundles. Avoid sharp edges, heat
and moving parts.
Quick Start Guide

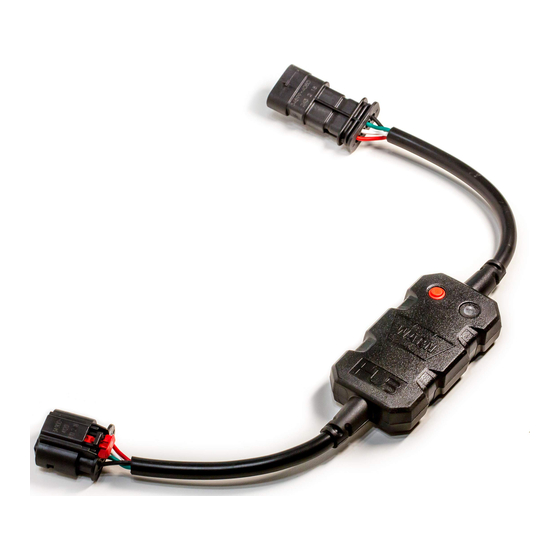

TRUCK / SUV WARN® HUB RECEIVER
BEFORE YOU BEGIN
WARN HUB
MOUNT
3.
Using the included zip-ties, mount HUB Receiver firmly
to vehicle.
4.
Route the winch remote plug end behind the vehicle
grille and towards the winch remote socket plug. NOTE:
Make sure to route wires/cables away from sharp edges,
heat and moving parts.
NOTE: Zip tie cables to vehicle in regular intervals to keep cables secure and
in place.
WIRE
5.
Connect HUB Receiver to winch remote plug.
NOTICE
vehicle battery
drain, unplug
the d-plug from
winch and secure
up and out of the
way, when not
in use.
7. 8.
Press and hold button on HUB
Open app on phone and follow
Receiver until blue light flashes prompts.
(approximately 2 seconds) and then
release button.
CUSTOMER SERVICE
WARN INDUSTRIES, INC. 12900 S.E. Capps Road,
Clackamas, OR USA 97015-8903, 1-503-722-1200
Customer Service: 1-800-543-9276
Dealer Locator Service: 1-800-910-1122
International Fax: 1-503-722-3005
Quick Start Guide
TRUCK / SUV WARN® HUB RECEIVER
POWER
6.
The HUB Receiver is active when the yellow light is on.
o avoid
T
PAIR/CONNECT
9.
When light on HUB Receiver turns
green, you are connected.
Continue following the instructions
through your app.
x I agree to the latest
Privacy Policy,
Terms of Use and
Safety Agreement
Continue
Continue
103971A0
