1.3 DISPLAY FEATURES

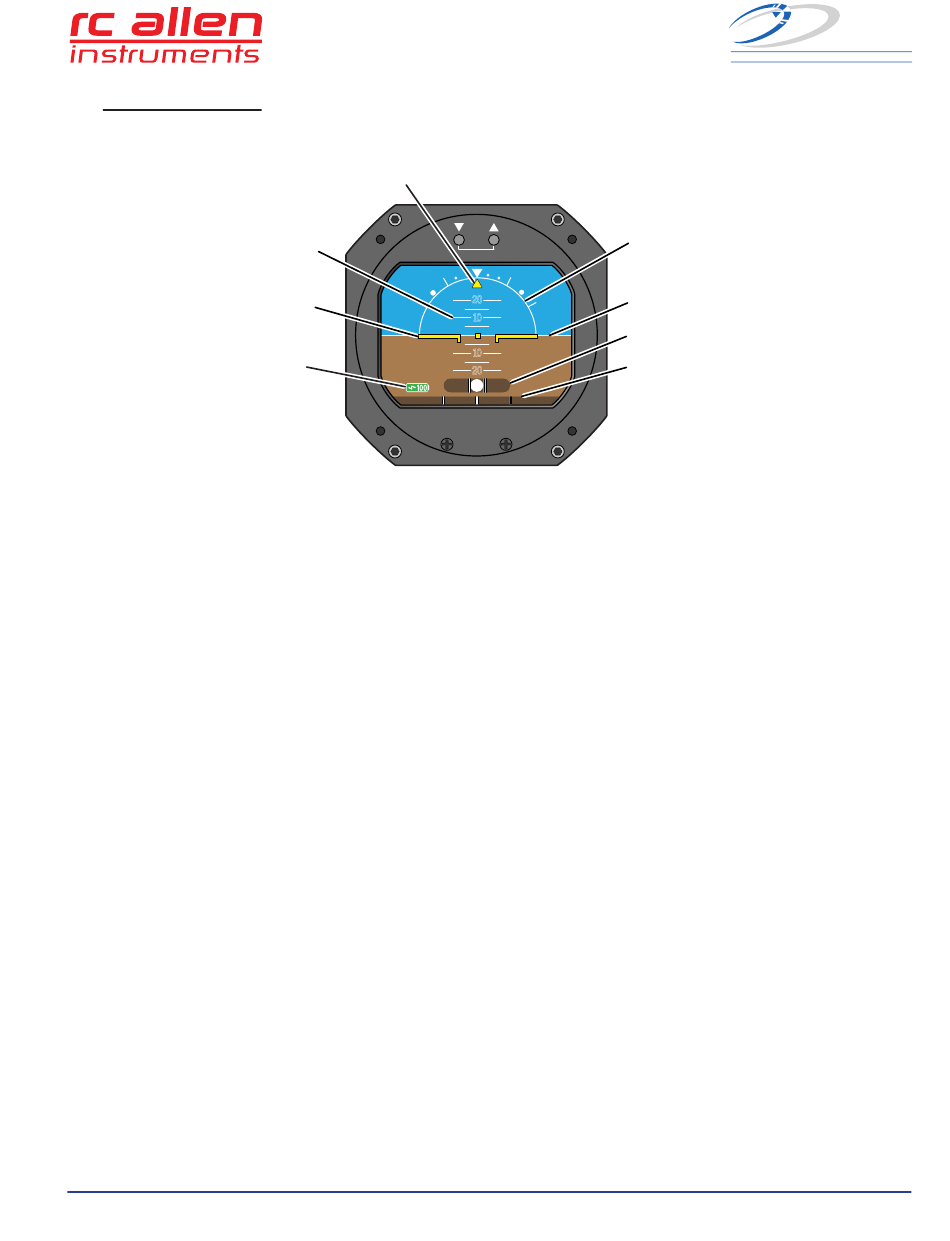

See Figure 1.2 below for typical display features. RCA2610-3 shown.
8 PITCH DIAL
7 SYMBOLIC
6 BATTERY
CHARGE
1. ROLL POINTER
The Roll Pointer points to the degree of roll against the Roll Dial.
2. ROLL DIAL
The Roll Dial shows the degree of roll against the Roll Pointer.
3. HORIZON LINE
Indicates earth horizon relative to aircraft pitch and roll.
4. SLIP INDICATOR
Also referred to as an Inclinometer, the Digital Slip Indicator measures the relative strength of the force of gravity and the
force of inertia caused by a turn; thus indicating whether the aircraft is slipping or skidding. (Add-on mechanical option also
available for all RCA2610 models)
5. RATE OF TURN INDICATOR (OPTIONAL)
Displays graduated scale to provide standard Rate of Turn.
6. BATTERY CHARGE STATUS INDICATOR (OPTIONAL)
Indicates the amount of battery charge (on instruments with the Battery Backup Option).
7. SYMBOLIC AIRPLANE
Represents the orientation of the aircraft's wings and nose in relation to the horizon. The dot represents the nose of the air-
craft and indicates Pitch. The wings indicate roll.
8. PITCH DIAL
Indicates the Pitch angle as determined by the Symbolic Airplane dot.
