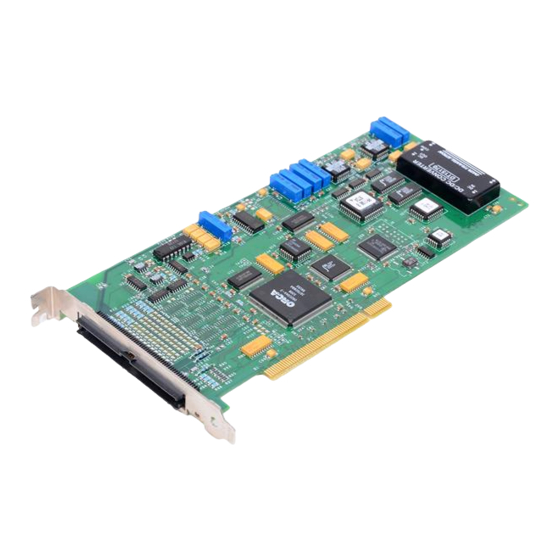

Data Translation DT3000 Series User Manual
  1. Manuals
  2. Brands
  3. Data Translation Manuals
  4. Control Unit
  5. DT3000 Series
  6. User manual

Data Translation DT3000 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Data Translation DT3000 Series User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Data Translation DT3000 Series

Summary of Contents for Data Translation DT3000 Series

  • Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
  • Page 2 Title Page UM-17546-N DT3000 Series User’s Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Information furnished by Data Translation, Inc. is believed to be accurate and reliable; however, no responsibility is assumed by Data Translation, Inc. for its use; nor for any infringements of patents or other rights of third parties which may result from its use.
  • Page 4 Changes or modifications to this equipment not expressly approved by Data Translation could void your authority to operate the equipment under Part 15 of the FCC Rules.
  • Page 5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 6: Table Of Contents

    Table of Contents Table of Contents About this Manual ........... . . 11 Intended Audience.
  • Page 7 Connecting Pulse Output Signals ......... . . 53 Chapter 5: Verifying the Operation of a DT3000 Series Board ....55 Running the Quick DataAcq Application .
  • Page 8 Contents Analog Input Conversion Modes ......... . . 73 Continuously Paced Scan Mode .
  • Page 9 Contents Data Encoding..............97 Channels .
  • Page 10 Contents Analog Outputs ............. 143 Digital Inputs and Counter/Timer Inputs .
  • Page 11 Contents Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 12: About This Manual

    DT3003-PGL, DT3004, and DT3005 boards (collectively referred to as the DT3000 Series or PCI-EZ Series). It describes the capabilities of the DT3000 Series Device Driver and how to program the board using DT-Open Layers for .NET Class Library™ software. Troubleshooting information is also provided.

  • Page 13: Conventions Used In This Manual

    “Attaching and Configuring a Screw Terminal Panel/ Backplane,” describes how to attach a DT730 or DT730-T screw terminal panel to a DT3000 Series board, how to attach 5B or 7B Series conditioning backplanes, and how to configure these accessories for use with a DT3000 Series board.

  • Page 14: Where To Get Help

    • Microsoft Windows XP, Windows Vista, or Windows 7 documentation. Where To Get Help Should you run into problems installing or using a DT3000 Series board, our Technical Support Department is available to provide technical assistance. Refer to Chapter 9...
  • Page 15 About this Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 16: Chapter 1: Overview

    Overview Features ..............Supported Software .

  • Page 17: Features

    Chapter 1 Features The DT3000 Series (PCI-EZ) data acquisition boards were designed for high-channel count, high-speed data acquisition applications on the PCI bus. They are ideal for data logging and signal analysis applications in the medical, process automation, and aerospace industries.

  • Page 18: Supported Software

    Overview Supported Software The following software is available for use with the DT3000 Series board and shipped on the Data Acquisition OMNI CD: • DT3000 Series Device Driver – The device driver is installed automatically when you install the software from the Data Acquisition OMNI CD. You need the device driver to use the DT3000 Series board with any of the supported software packages or utilities •...

  • Page 19: Accessories

    The DT730-T is the same as the DT730, but also provides cold-junction compensation for thermocouple connections. Connector J1 accommodates the analog and digital I/O signals from the DT3000 Series board; connector J2 allows you to connect 5B and 7B Series signal conditioning backplanes.

  • Page 20: Getting Started Procedure

    Overview Getting Started Procedure The flow diagram shown in Figure 1 illustrates the steps needed to get started using a DT3000 Series board. This diagram is repeated in each getting started chapter; the shaded area in the diagram shows you where you are in the getting started procedure. Install the Board and Load the Device Driver (see Chapter 2...
  • Page 21 Chapter 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 22: Part 1: Getting Started

    Part 1: Getting Started Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 23 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 24: Chapter 2: Installing The Board And Loading The Device Driver

    Installing the Board and Loading the Device Driver Unpacking ..............Setting up an Expansion Slot .
  • Page 25 Chapter 5 starting on page Note: All DT3000 Series boards are factory-calibrated and require no further adjustment prior to installation. If you are using the DT3000 Series board and decide later to recalibrate it, refer to Chapter 8 starting on page 105 for instructions.

  • Page 26: Unpacking

    • DT3000 Series data acquisition board • Data Acquisition OMNI CD If an item is missing or damaged, contact Data Translation. If you are in the United States, call the Customer Service Department at (508) 481-3700, ext 1323. An application engineer will guide you through the appropriate steps for replacing missing or damaged items.

  • Page 27: Setting Up The Computer

    To set up the computer, do the following: 1. Install the software from the Data Acquisition OMNI CD or Data Translation web site. Note: If you are using Windows 7, you must install the device driver before installing the board in the computer.

  • Page 28: Setting Up An Expansion Slot

    Installing the Board and Loading the Device Driver Setting up an Expansion Slot Once you have set up the computer, set up an expansion slot by doing the following: 1. Select a 32-bit or 64-bit PCI expansion slot. PCI slots are shorter than ISA or EISA slots and are usually white or ivory. Commonly, three PCI slots (one of which may be a shared ISA/PCI slot) are available.

  • Page 29: Inserting The Board Into The Computer

    Chapter 2 Inserting the Board into the Computer Once you have set up an expansion slot, do the following to insert the DT3000 Series board into the computer: 1. Discharge any static electricity by holding the wrapped board in one hand while placing your other hand firmly on a metal portion of the computer chassis.

  • Page 30: Loading The Device Driver

    Installing the Board and Loading the Device Driver Loading the Device Driver To load the DT3000 Series device driver in: • Windows XP, follow the steps on page • Windows Vista, follow the steps on page • Windows 7, follow the steps on...

  • Page 31: Windows 7

    Chapter 2 Windows 7 Once you have installed the software from the Data Acquisition OMNI CD, installed a DT3000 Series board, and powered up the host computer, the hardware is found automatically. Perform the steps in Chapter 3 starting on page 31 to attach and configure the screw terminal panel and signal conditioning backplane.

  • Page 32: Chapter 3: Attaching And Configuring A Screw Terminal Panel/ Backplane

    Attaching and Configuring a Screw Terminal Panel/ Backplane Using the DT730 or DT730-T Screw Terminal Panel ....... . Using 5B and 7B Series Conditioning Backplanes.
  • Page 33 Chapter 3 Install the Board and the Device Driver (see Chapter 2 starting on page Attach and Configure the Screw Terminal Panel and Signal Conditioning Backplane (this chapter) Wire Signals (see Chapter 4 starting on page Verify the Operation of the Board (see Chapter 5 starting on page Artisan Technology Group - Quality Instrumentation ...

  • Page 34: Using The Dt730 Or Dt730-T Screw Terminal Panel

    DT3000 Series board. Attaching a DT730 or DT730-T Screw Terminal Panel To connect the DT730 or DT730-T screw terminal panel to a DT3000 Series board, do the following: 1. Plug one end of the EP291 flat ribbon cable into the connector at the rear of the DT3000...

  • Page 35: Configuring A Dt730 Or Dt730-T Screw Terminal Panel

    Chapter 3 Configuring a DT730 or DT730-T Screw Terminal Panel Figure 4 illustrates the screw terminal and component locations for the DT730 and DT730-T. TB44 TB52 TB60 TB68 TB76 TB84 TB92 TB100 TB37 TB45 TB53 TB61 TB69 TB77 TB93 TB85 R99* TB27 TB36...

  • Page 36: Configuring Jumper W1 - Common Ground Sense

    CJC circuit for measuring temperature at the connector blocks on the screw terminal panel. Power is derived from ±Vcc on the DT3000 Series board. Installing jumpers W2 and W3 connects the CJC circuit to channel 0. Jumper W2 connects the temperature sensor to channel 0 high;...

  • Page 37: Resistors

    Chapter 3 Install jumpers W6 and W7 to connect DAC1 from the data acquisition board to channel 15 on the 5B01 or 7BP16-1 backplane. Jumper W6 connects DAC0 to channel 15; jumper W7 connects DAC1’s return. Note: If you are using analog output modules on the 5B01or 7BP16-1 backplane, ensure that you make no connections to the screw terminals corresponding to that signal on the screw terminal panel.

  • Page 38: Using 5B And 7B Series Conditioning Backplanes

    This section describes how to attach a 5B or 7B Series signal conditioning backplane to a DT730 or DT730-T screw terminal panel and considerations when using signal conditioning accessories with DT3000 Series boards. Attaching a 5B Series Backplane J2 Connector...

  • Page 39: Considerations When Using 5B Or 7B Series Accessories

    When using the DT730 or DT730-T screw terminal panel with 5B or 7B Series signal conditioning accessories, keep the following considerations in mind: • Configure your DT3000 Series board to use single-ended mode. You must remove jumper W1 on the DT730 or DT730-T screw terminal panel, as described on page 35.

  • Page 40: Chapter 4: Wiring Signals

    Wiring Signals Before Wiring ..............Connecting Analog Input Signals .
  • Page 41 Chapter 4 Install the Board and Load the Device Driver (see Chapter 2 starting on page Attach and Configure the Screw Terminal Panel and Signal Conditioning Backplane (see Chapter 3 starting on page Wire Signals (this chapter) Verify the Operation of the Board (see Chapter 5 starting on page This chapter describes how to wire signals to the DT730 or DT730-T screw terminal panel.

  • Page 42: Before Wiring

    − Wire a digital input to digital I/O Port A. − Wire a external clock or scope to counter/timer channel 0. − If you have not done so already, install the DT3000 Series software. − Run the Quick DataAcq application (described in...

  • Page 43: Dt730 And Dt730-T Screw Terminal Assignments

    Chapter 4 DT730 and DT730-T Screw Terminal Assignments Table 2 describes each of the screw terminal assignments and identifies the resistors that are associated with each channel. Table 2: Screw Terminal Descriptions and Resistor Use for the DT730 and DT730-T Screw Signal Name Resistor Used...
  • Page 44 Wiring Signals Table 2: Screw Terminal Descriptions and Resistor Use for the DT730 and DT730-T (cont.) Screw Signal Name Resistor Used Terminal Number Single-Ended Differential Bias Return Current Shunt +15V_OUT Not Applicable Analog Common Analog Common DAC1_GND DAC1_OUT DAC0_GND DAC0_OUT Amp Low Note: Jumper W1 Connects Amp Low to Analog Gnd...
  • Page 45 Chapter 4 Table 2: Screw Terminal Descriptions and Resistor Use for the DT730 and DT730-T (cont.) Screw Signal Name Resistor Used Terminal Number Single-Ended Differential Bias Return Current Shunt AIN44 AIN20_L AIN36 AIN20_H AIN43 AIN19_L AIN35 AIN19_H AIN42 AIN18_L AIN34 AIN18_H AIN41 AIN17_L...
  • Page 46 Wiring Signals Table 2: Screw Terminal Descriptions and Resistor Use for the DT730 and DT730-T (cont.) Screw Signal Name Resistor Used Terminal Number Single-Ended Differential Bias Return Current Shunt AIN13 AIN05_L AIN05 AIN05_H AIN12 AIN04_L AIN04 AIN04_H AIN11 AIN03_L AIN03 AIN03_H AIN10 AIN02_L...

  • Page 47: Connecting Analog Input Signals

    Chapter 4 Connecting Analog Input Signals The DT730 screw terminal panel supports both voltage and current loop inputs. You can connect analog input voltage signals to the DT730 in the following configurations: • Single-ended – Choose this configuration when you want to measure high-level signals, noise is not significant, the source of the input is close to the DT730 or DT730-T screw terminal panel, and all the input signals are referred to the same common ground.

  • Page 48: Connecting Pseudo-Differential Voltage Inputs

    Wiring Signals Connecting Pseudo-Differential Voltage Inputs Figure 8 shows how to connect pseudo-differential voltage inputs (channels 0, 1, and 8, in this case) to the DT730 or DT730-T screw terminal panel. Signal Source Analog Ground TB36 Analog In 0 TB35 Analog In 8 DT730 Analog In 1...
  • Page 49 Chapter 4 TB36 Analog In 0 TB100 TB99 Floating Signal DT730 Analog In 0 Source Return DT730-T Panel Use resistor R1 to connect Analog Ground the low side of channel 0 to analog ground. Analog In 0 Return Bridge TB36 TB99 TB100 DT730...

  • Page 50: Connecting Current Loop Inputs

    Wiring Signals Analog In 0 TB99 TB100 Grounded DT730 or Signal DT730-T Analog In 0 Source Panel Return TB36 Signal Source Ground V Install resistor R1 for bias return if the external ground is floating. Figure 10: Connecting Differential Voltage Inputs from a Grounded Signal Source (Shown for Channel 0) Connecting Current Loop Inputs Figure 11...

  • Page 51: Connecting Analog Output Signals

    Chapter 4 Connecting Analog Output Signals Figure 12 shows how to connect an analog output voltage signal (channel 0, in this case) to the DT730 screw terminal panel. Analog Output 0 TB34 Analog Output 0 Ground Load TB33 DT730 or DT730-T Panel Figure 12: Connecting Analog Output Voltages (Shown for Channel 0) Artisan Technology Group - Quality Instrumentation ...

  • Page 52: Connecting Digital I/O Signals

    Wiring Signals Connecting Digital I/O Signals Figure 13 shows how to connect a digital input signal (channels 0 and 1 of digital port A, in this case) to the DT730 or DT730-T screw terminal panel. Digital I/O Port A, Line 1 TB22 TTL Inputs Digital I/O Port A, Line 0...

  • Page 53: Connecting Counter/Timer Signals

    Chapter 4 Connecting Counter/Timer Signals The DT3000 Series board and DT730 screw terminal panel provide one user counter/timer channel that you can use for the following operations: • Event counting • Frequency measurement • Pulse output (rate generation, one-shot, and repetitive one-shot) This section describes how to connect counter/timer signals to perform these operations.

  • Page 54: Connecting Frequency Measurement Signals

    Figure 16: Connecting Event Counting Signals without an External Gate Input Connecting Frequency Measurement Signals On the DT3000 Series, a frequency measurement application uses the same wiring as an event counting application that does not use an external gate signal (see Figure 16).
  • Page 55 Chapter 4 Figure 18 shows another example of connecting a pulse output operation to the DT730 or DT730-T screw terminal panel using a software gate type. Digital Ground Heater Controller User Counter Output User Clock Input 0 Signal Source DT730 or DT730-T Panel Digital Ground...

  • Page 56: Chapter 5: Verifying The Operation Of A Dt3000 Series Board

    Verifying the Operation of a DT3000 Series Board Running the Quick DataAcq Application.........
  • Page 57 Verify the Operation of the Board (this chapter) You can verify the operation of a DT3000 Series board using the Quick DataAcq application. Quick DataAcq allows you to do the following: • Acquire data from a single analog input channel or digital input port •...

  • Page 58: Running The Quick Dataacq Application

    For information on each of the features provided, use the online help for the Quick DataAcq application by pressing F1 from any view or selecting the Help menu. If the system has trouble finding the help file, navigate to C:\Program Files\Data Translation\Win32\ dtdataacq.hlp, where C: is the letter of your hard disk drive.

  • Page 59: Testing Single-Value Analog Input

    2. In the Quick DataAcq application, choose Single Analog Input from the Acquisition menu. 3. Select the appropriate DT3000 Series board from the Board list box. 4. In the Channel list box, select analog input channel 0. 5. In the Range list box, select the range for the channel.

  • Page 60: Testing Single-Value Analog Output

    2. In the Quick DataAcq application, choose Single Analog Output from the Control menu. 3. Select the appropriate DT3000 Series board from the Board list box. 4. In the Channel list box, select analog output channel 0.

  • Page 61: Testing Continuous Analog Input

    To verify that the board can perform a continuous analog input operation, do the following: 1. Connect known voltage sources, such as the outputs of a function generator, to analog input channels 0 and 1 on the DT3000 Series board (using the differential configuration). Refer to page 47 for an example of how to connect a differential analog input.

  • Page 62: Testing Single-Value Digital Input

    Testing Single-Value Digital Input To verify that the board can read a single digital input value, do the following: 1. Connect a digital input to digital input line 0 of port A on the DT3000 Series board. Refer page 51 for an example of how to connect a digital input.

  • Page 63: Testing Single-Value Digital Output

    Testing Single-Value Digital Output To verify that the board can output a single digital output value, do the following: 1. Connect a digital output to digital output line 0 of port B on the DT3000 Series board. Refer to page 51 for an example of how to connect a digital output.

  • Page 64: Testing Frequency Measurement

    Testing Frequency Measurement To verify that the board can perform a frequency measurement operation, do the following: 1. Wire an external clock source to counter/timer 0 on the DT3000 Series board. Refer to page 53 for an example of how to connect a an external clock for a frequency measurement operation.

  • Page 65: Testing Pulse Output

    Chapter 5 Testing Pulse Output To verify that the board can perform a pulse output operation, do the following: 1. Connect a scope to counter/timer 0 on the DT3000 Series board. Refer to page 53 for an example of how to connect a scope (a pulse output) to counter/timer 0.

  • Page 66: Part 2: Using Your Board

    Part 2: Using Your Board Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 67 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 68: Chapter 6: Principles Of Operation

    Principles of Operation Analog Input Features ............Analog Output Features .
  • Page 69 Chapter 6 This chapter describes the analog input, analog output, digital I/O, counter/timer, and interrupt features of the DT3000 Series boards. To frame the discussions, refer to the block diagram shown in Figure 19. Note that bold entries indicate signals you can access.

  • Page 70: Analog Input Features

    Principles of Operation Analog Input Features This section describes the features of the analog input (A/D) subsystem, including the following: • Analog input resolution • Analog input channels • Input ranges and gains • A/D sample clock sources • Analog input conversion modes •...

  • Page 71: Specifying A Single Channel

    ±20 V over-voltage protection when the board is off. DT3000 Series boards can acquire data from a single analog input channel or from a group of analog input channels. Depending on the number of channels supported by the board, channels are numbered 0 to 15, 0 to 31, or 0 to 63 for single-ended and pseudo-differential inputs and 0 to 7, 0 to 15, or 0 to 31 for differential inputs.

  • Page 72: Specifying The Gain For A Single Channel

    Specifying the Gain for One or More Channels For DT3000 Series boards, you can use software to specify the gain for each analog input channel entry in the analog input channel list. A/D Sample Clock Sources...

  • Page 73: Internal A/D Sample Clock

    Connect an external A/D sample clock to screw terminal TB8 on the DT730 or DT730-T screw terminal panel (pin 8 of connector J1 on the DT3000 Series board). Conversions start on the falling edge of the external A/D sample clock input signal.

  • Page 74: Analog Input Conversion Modes

    Single-value operations stop automatically when finished; you cannot stop a single-value operation. • Scan mode takes full advantage of the capabilities of the DT3000 Series boards. In a scan, you can specify a channel list, clock source, trigger source, scan mode, and buffer. Two scan modes are supported: continuously paced scan mode and triggered scan mode.

  • Page 75: Triggered Scan Mode

    Figure 20: Continuously Paced Scan Mode Triggered Scan Mode DT3000 Series boards support two triggered scan modes: software retriggered and externally retriggered. These modes are described in the following subsections. Software-Retriggered Scan Mode Use software-retriggered scan mode if you want to accurately control both the period between conversions of individual channels in a scan and the period between each scan.
  • Page 76 Principles of Operation Table 6: Maximum Retrigger Frequency (cont.) Single Channel Multiple Channel Board Retrigger Frequency Retrigger Frequency DT3003 330 kHz 100 kHz DT3003-PGL 330 kHz 100 kHz DT3004 100 kHz 50 kHz DT3005 200 kHz 100 kHz a. Unless otherwise indicated, these rates assume a gain of 1. b.

  • Page 77: Externally-Retriggered Scan Mode

    When it detects the initial trigger, the board scans the channel list once, then waits for the external retrigger to occur. On DT3000 Series boards, the initial trigger and the retrigger source must be an external digital TTL trigger (TB6 on the DT730 and DT730-T screw terminal or pin 6 of connector J1 on the DT3000 Series board).

  • Page 78: Trigger Sources

    Principles of Operation Trigger Sources A trigger is an event that occurs based on a specified set of conditions. DT3000 Series boards support the following trigger sources: • Software trigger – A software trigger event occurs when you start the analog input operation (the computer issues a write to the board to begin conversions).

  • Page 79: Analog Output Features

    • Analog output conversion modes • Data formats and transfer Analog Output Resolution All DT3000 Series boards (except the DT3002) have a fixed analog output resolution of 12 bits. The analog output resolution cannot be changed in software. Analog Output Channels DT3000 Series boards (except the DT3002) support two analog output channels (DAC0 and DAC1).

  • Page 80: Output Ranges And Gains

    D/A subsystem is 100 kSamples/s. Trigger Sources A trigger is an event that occurs based on a specified set of conditions. DT3000 Series boards support the following trigger sources: • Software trigger – A software trigger event occurs when you start the analog output operation (the computer issues a write to the board to begin conversions).

  • Page 81: Analog Output Conversion Modes

    • External User Gate – This trigger type is supported using the DataAcq SDK only for analog output operations. An external trigger event can occur when the DT3000 Series board detects either a rising or falling edge on the external gate input signal connected to TB5 on the DT730 or DT730-T screw terminal panel (pin 5 of connector J1 on the DT3000 Series board).

  • Page 82: Data Format And Transfer

    Principles of Operation The host computer transfers digital values to write to the DACs from allocated circular buffers in computer memory to the DAC buffer on the board. Use software to allocate the number of host buffers and to specify the values to write to the DACs. When it detects a trigger, the board outputs the values in the onboard buffer to the DACs at the same time.

  • Page 83: Digital I/O Features

    • Digital I/O operation modes Digital I/O Lines DT3000 Series boards support eight digital I/O lines through the digital input (DIN) and output (DOUT) subsystems; both subsystems use the same digital I/O lines. These lines are divided into two banks of four: Bank A, lines 0 to 3; and Bank B, lines 0 to 3. You can use each bank as either an input port or an output port;...

  • Page 84: Counter/Timer Features

    • Pulse types and duty cycles • Counter/timer operation modes Counter/Timer Channels DT3000 Series boards support one 16-bit user counter/timer channel (called counter 0). Counter 0 corresponds to C/T subsystem element 0. The counter accepts a clock input signal and gate input signal and outputs a clock output...

  • Page 85: Internal C/T Clock

    1 MHz. Connect the external clock input signal to TB7 of the DT730 or DT730-T screw terminal panel (pin 7 of connector J1 on the DT3000 Series board). Gate Types The active edge or level of the gate input to the counter enables counter/timer operations. The operation starts when the clock input signal is received.

  • Page 86: Pulse Output Signals And Duty Cycles

    DT730-T screw terminal panel (pin 5 of connector J1 on the DT3000 Series board). Pulse Output Signals and Duty Cycles DT3000 Series boards provide one pulse output signal. The pulse signal is output on TB3 of the DT730 and DT730-T screw terminal panel (pin 3 of connector J1 on the DT3000 Series board).

  • Page 87: Counter/Timer Operation Modes

    Chapter 6 Counter/Timer Operation Modes DT3000 Series boards support the following counter/timer operation modes: • Event counting • Frequency measurement • Rate generation • One-shot • Repetitive one-shot Event Counting Use event counting mode to count events from the counter’s associated clock input source.

  • Page 88: Frequency Measurement

    83 for more information on the external C/T clock source. To perform a frequency measurement on the DT3000 Series, use the same wiring as an event counting application that does not use an external gate signal. Use software to specify the counter/timer mode as frequency measurement or event counting, and specify the duration of the Windows timer over which to measure the frequency.

  • Page 89: One-Shot

    Chapter 6 Using software, specify the counter/timer mode as rate generation (rate), the C/T clock source as either internal or external, the polarity of the output pulses (high-to-low transitions), the duty cycle of the output pulses (50 or 100 only), and the gate type that enables the operation.

  • Page 90: Repetitive One-Shot

    Principles of Operation Note: In the case of a one-shot operation, the pulse width is automatically set to 100%. Ensure that the signals are wired appropriately. Figure 27 shows an example of a one-shot operation using an external gate input (rising edge), a clock output frequency of 1 kHz (pulse period of 1 ms), and a high-to-low pulse type.
  • Page 91 Chapter 6 Note: In the case of a repetitive one-shot operation, the pulse width is automatically set to 100%. Triggers that occur while the pulse is being output are not detected by the board. Ensure that the signals are wired appropriately. Figure 28 shows an example of a repetitive one-shot operation using an external gate (rising edge);...

  • Page 92: Interrupts

    Principles of Operation Interrupts A DT3000 Series board functions as a +5 V, 32-bit PCI target device to any master on the PCI bus. It supports PCI burst transfers to and from memory space and accesses to configuration memory space.
  • Page 93 Chapter 6 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 94: Chapter 7: Supported Device Driver Capabilities

    Supported Device Driver Capabilities Data Flow and Operation Options..........Buffering .
  • Page 95 The tables in this chapter summarize the features available for use with the DT-Open Layers for .NET Class Library and the DT3000 Series boards. The DT-Open Layers for .NET Class Library provides properties that return support information for specified subsystem capabilities.

  • Page 96: Data Flow And Operation Options

    Supported Device Driver Capabilities Data Flow and Operation Options Table 8: DT3000 Series Data Flow and Operation Options DT3000 Series DOUT QUAD Single-Value Operation Support SupportsSingleValue Simultaneous Single-Value Output Operations SupportsSetSingleValues Continuous Operation Support SupportsContinuous Continuous Operation until Trigger SupportsContinuousPreTrigger Continuous Operation before &...

  • Page 97: Buffering

    Buffer Support SupportsBuffering Single Buffer Wrap Mode Support SupportsWrapSingle Inprocess Buffer Flush Support SupportsInProcessFlush Triggered Scan Mode Table 10: DT3000 Series Triggered Scan Mode Options DT3000 Series DOUT QUAD Triggered Scan Support SupportsTriggeredScan Maximum Number of CGL Scans per Trigger...

  • Page 98: Data Encoding

    Supported Device Driver Capabilities Data Encoding Table 11: DT3000 Series Data Encoding Options DT3000 Series DOUT QUAD Binary Encoding Support SupportsBinaryEncoding Twos Complement Support SupportsTwosCompEncoding Returns Floating-Point Values ReturnsFloats a. Binary data encoding is supported on DT3001, DT3001-PGL, DT3003, and DT3003-PGL boards only.

  • Page 99: Gain

    1, 2, 4, 8, or SupportedGains 1, 10, 100, 500 a. The DT3001-PGL and DT3003-PGL boards have gains of 1, 10, 100, and 500. All other DT3000 Series boards have gains of 1, 2, 4, and 8. Ranges Table 14: DT3000 Series Range Options...

  • Page 100: Thermocouple Support

    Supported Device Driver Capabilities Thermocouple Support Table 16: DT3000 Series Thermocouple Support Options DT3000 Series DOUT QUAD Thermocouple Support SupportsThermocouple RTD Support SupportsRTD Resistance Support ReturnsOhms Voltage Converted to Temperature in Hardware SupportsTemperatureDataInStream Supported Thermocouple Types J, K, B, E,...

  • Page 101: Triggers

    Chapter 7 Triggers Table 18: DT3000 Series Trigger Options DT3000 Series DOUT QUAD Software Trigger Support SupportsSoftwareTrigger External Positive TTL Trigger Support SupportsPosExternalTTLTrigger External Negative TTL Trigger Support SupportsNegExternalTTLTrigger External Positive TTL Trigger Support for Single-Value Operations SupportsSvPosExternalTTLTrigger External Negative TTL Trigger Support...

  • Page 102: Clocks

    Supported Device Driver Capabilities Clocks Table 19: DT3000 Series Clock Options DT3000 Series DOUT QUAD Internal Clock Support SupportsInternalClock External Clock Support SupportsExternalClock Simultaneous Input/Output on a Single Clock Signal SupportsSimultaneousClocking Base Clock Frequency BaseClockFrequency 20 MHz 10 MHz 10 MHz 0...

  • Page 103: Counter/Timers

    Chapter 7 Counter/Timers Table 20: DT3000 Series Counter/Timer Options DT3000 Series DOUT QUAD Cascading Support SupportsCascading Event Count Mode Support SupportsCount Generate Rate Mode Support SupportsRateGenerate One-Shot Mode Support SupportsOneShot Repetitive One-Shot Mode Support SupportsOneShotRepeat Up/Down Counting Mode Support SupportsUpDown...
  • Page 104 Supported Device Driver Capabilities Table 20: DT3000 Series Counter/Timer Options (cont.) DT3000 Series DOUT QUAD Gate-Rising Edge Type SupportsGateRising Interrupt-Driven Operations SupportsInterrupt a. You can use one-shot mode only with a software gate type (none). b. You cannot use a software gate type (none) with repetitive one-shot mode c.
  • Page 105 Chapter 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 106: Chapter 8: Calibration

    Calibration Calibrating the A/D Subsystem..........Calibrating the D/A Subsystem.
  • Page 107 Chapter 8 To calibrate your DT3000 Series board, you need a precision voltage source and a precision voltmeter (±10.0 V range for both). The accuracy of your calibration depends on the precision of this equipment and the care you take making the adjustments.

  • Page 108: Calibrating The A/D Subsystem

    3. Adjust potentiometer R4, shown in Figure 29, until the A/D output voltage is 0.000 V. Potentiometers Figure 29: Potentiometers for Calibrating the DT3000 Series Boards 4. Set the voltage source to 9.950 V. 5. Adjust potentiometer R3, shown in Figure 29, until the A/D output voltage is 9.950 V.

  • Page 109: Calibrating The D/A Subsystem

    Chapter 8 Calibrating the D/A Subsystem Do the following to calibrate the D/A subsystem on the board: 1. Connect a precision voltmeter to DAC 0 (screw terminal/pin 34 for ANO0+ and 33 for ANO0–). 2. Set the value to the minus full-scale range (all zeros). 3.

  • Page 110: Calibrating The Dt730-T

    Calibration Calibrating the DT730-T The DT730-T screw terminal panel is factory calibrated for optimum compensation. Therefore, you do not need to calibrate the panel initially. If you wish to calibrate the DT730-T at a later time, do the following: 1. Allow the DT730-T screw terminal panel to warm up for 10 minutes, then measure the temperature at the DT730-T.
  • Page 111 Chapter 8 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 112: Chapter 9: Troubleshooting

    Troubleshooting General Checklist ............Technical Support .

  • Page 113: General Checklist

    5. Check that you have loaded the device driver properly using the instructions in Chapter 6. Search the DT Knowledgebase in the Support section of the Data Translation web site (at www.datatranslation.com) for an answer to your problem. If you still experience problems, try using the information in...
  • Page 114 Computer does Board is not seated properly. Check that the slot in which your DT3000 Series not boot. board is located is a PCI slot, that the board is correctly seated in the slot, and that the board is secured in the slot with a screw.
  • Page 115 Interrupt level is unacceptable. Some network devices do not share interrupts. If you (cont.). still have an interrupt conflict, try removing the network device, installing the DT3000 Series board and rebooting the system, then reinserting the network device. Calibration VxD is missing.

  • Page 116: Technical Support

    Troubleshooting Technical Support If you have difficulty using a DT3000 Series board, Data Translation’s Technical Support Department is available to provide technical assistance. To request technical support, go to our web site at http://www.datatranslation.com and click on the Support link.

  • Page 117: If Your Board Needs Factory Service

    Chapter 9 If Your Board Needs Factory Service If your board must be returned to Data Translation, do the following: 1. Record the board’s serial number, and then contact the Customer Service Department at (508) 481-3700, ext. 1323 (if you are in the USA) and obtain a Return Material Authorization (RMA).

  • Page 118: Appendix A: Specifications

    Specifications Analog Input Specifications ........... Analog Output Specifications.

  • Page 119: Analog Input Specifications

    Appendix A Analog Input Specifications Table 22 lists the analog input specifications for the DT3000 Series boards. Table 22: Analog Input Specifications DT3001, DT3001-PGL, DT3002, DT3003 Feature DT3003-PGL DT3004, DT3005 Resolution (Coding) 12 bits (offset binary) 16 bits (twos complement)
  • Page 120 Specifications Table 22: Analog Input Specifications (cont.) DT3001, DT3001-PGL, DT3002, DT3003 Feature DT3003-PGL DT3004, DT3005 ± 80.0 μV ±40.0 μV Channel-to-Channel Offset 3 μs 10 μs for DT3004 Channel Acquisition 5 μs for DT3005 Time 3 μs 10 μs for DT3004 A/D Conversion Time 5 μs for DT3005 –...
  • Page 121 Appendix A Table 23: Typical Single-Channel Accuracy Channel-Gain List Single Channel Model Gain 330 kHz 100 kHz 200 kHz DT3001 0.03 0.04 0.04 0.05 DT3002 0.03 0.04 0.04 0.05 DT3003 0.03 0.04 0.04 0.05 DT3001-PGL 0.03 0.04 0.05 0.10 DT3003-PGL 0.03 0.04 0.05...
  • Page 122 Specifications Table 24: Typical Channel-Gain Scan Accuracy Scan (%) (Source Impedance = 100 ohms) Model Gain 300 kHz 250 kHz 150 kHz 100 kHz 75 kHz 50 kHz 20 kHz 10 kHz 4 kHz 2.5 kHz DT3001 0.08 0.03 0.10 0.04 0.15 0.04...

  • Page 123: Analog Output Specifications

    Appendix A Analog Output Specifications Table 25 lists the analog output specifications for the DT3001, DT3001-PGL, DT3003, DT3003-PGL, DT3004, and DT3005 boards. Note that the DT3002 does not provide analog output features. Table 25: Analog Output Specifications Feature Specifications Resolution (Coding) 12 bits (Offset Binary) ±...

  • Page 124: Digital I/O Specifications

    Specifications Digital I/O Specifications Table 26 lists the digital I/O specifications for the DT3000 Series boards. Table 26: Digital I/O Specifications Feature Specifications Number of Lines Number of Ports 2 4-bit ports or 1 8-bit port Inputs Input Type Level Sensitive...

  • Page 125: User Counter/Timer Specifications

    Appendix A User Counter/Timer Specifications Table 27 lists the user counter/timer specifications for the DT3000 Series boards. Table 27: User Counter/Timer Specifications Features Specifications Inputs (1 Source, 1 Gate) High-Level Input Voltage 2.0 V minimum Low-Level Input Voltage 0.8 V maximum 25 μA maximum...

  • Page 126: External Trigger Specifications

    Specifications External Trigger Specifications Table 28 lists the external trigger specifications for the DT3000 Series boards. Table 28: External Trigger Specifications Features Specifications Input Type Edge Sensitive, Selectable Logic Load 1 ABT Load High-Level Input Voltage 2.0 V minimum Low-Level Input Voltage 0.8 V maximum...

  • Page 127: Power Consumption

    Appendix A Power Consumption Table 29 lists the power specifications for the DT3000 Series boards. Table 29: Power Specifications Feature Specifications +5 V, ±0.25 V 1.5 A maximum +12 V not applicable − 12 V not applicable Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 128: Physical Specifications

    Specifications Physical Specifications Table 30 lists the physical specifications for the DT3000 Series boards. Table 30: Physical Specifications Feature Specifications Dimensions 4.2 in. (L) x 9.15 in. (W) x 0.5 in. (D) Weight 5.6 oz (159 g) 0° C to 70 ° C...

  • Page 129: Dt730 And Dt730-T Specifications

    Appendix A DT730 and DT730-T Specifications Table 31 lists the specifications for the DT730 screw terminal panel. Table 31: DT730 and DT730-T Specifications Feature Specification Current Loop 250 Ω (0 to 20 mA current range) Resistor value: Resistor tolerance: ±0.02% or better Resistor power dissipation: 1/4 W minimum Resistor temperature coefficient:...

  • Page 130: Ep291 Cable Specifications

    Specifications EP291 Cable Specifications Table 32 lists the specifications for the EP291 cable. Table 32: EP291 Cable Specifications Feature Specification Length 1 meter Conductors 100, Solid, #30 AWG on 25 mil centers Connectors 100-pin, Self Locking, (AMP # 1-111196-6) Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 131 Appendix A Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 132: Appendix B: Connector Pin Assignments

    Connector Pin Assignments Board Connector J1............DT730 and DT730-T Screw Terminals .

  • Page 133: Board Connector J1

    Appendix B Board Connector J1 J1 is a 100-pin, double-row connector on the rear of the board. This connector accepts signals through the EP291 cable or a user-designed cable. Table 33 lists the pin assignments of connector J1. Table 33: Connector J1 Pin Assignments Signal Signal Name...
  • Page 134 Connector Pin Assignments Table 33: Connector J1 Pin Assignments (cont.) Signal Signal Name Description Name Description ANIN51 Analog In 51 ANIN59 Analog In 59/51 Return ANIN52 Analog In 52 ANIN60 Analog In 60/52 Return ANIN53 Analog In 53 ANIN61 Analog In 61/53 Return ANIN54 Analog In 54 ANIN62...

  • Page 135: Dt730 And Dt730-T Screw Terminals

    Appendix B DT730 and DT730-T Screw Terminals Table 34 describes each of the screw terminal assignments and identifies the resistors that are associated with each channel on the DT730 and DT730-T screw terminal panels. Table 34: Screw Terminal Descriptions and Resistor Use for the DT730 and DT730-T Screw Signal Name Resistor Used...
  • Page 136 Connector Pin Assignments Table 34: Screw Terminal Descriptions and Resistor Use for the DT730 and DT730-T (cont.) Screw Signal Name Resistor Used Terminal Number Single-Ended Differential Bias Return Current Shunt +15V_OUT Not Applicable Analog Common Analog Common DAC1_GND DAC1_OUT DAC0_GND DAC0_OUT Amp Low Note:...
  • Page 137 Appendix B Table 34: Screw Terminal Descriptions and Resistor Use for the DT730 and DT730-T (cont.) Screw Signal Name Resistor Used Terminal Number Single-Ended Differential Bias Return Current Shunt AIN44 AIN20_L AIN36 AIN20_H AIN43 AIN19_L AIN35 AIN19_H AIN42 AIN18_L AIN34 AIN18_H AIN41 AIN17_L...
  • Page 138 Connector Pin Assignments Table 34: Screw Terminal Descriptions and Resistor Use for the DT730 and DT730-T (cont.) Screw Signal Name Resistor Used Terminal Number Single-Ended Differential Bias Return Current Shunt AIN13 AIN05_L AIN05 AIN05_H AIN12 AIN04_L AIN04 AIN04_H AIN11 AIN03_L AIN03 AIN03_H AIN10...

  • Page 139: Dt730 And Dt730-T Connector J2 Pins

    Appendix B DT730 and DT730-T Connector J2 Pins Connector J2 on the DT730 and DT730-T screw terminal panel is provided for connecting a 5B or 7B Series signal conditioning backplane. Table 35 describes the pin assignments of connector J2. Table 35: Connector J2 Pin Assignments Description Description AIN00_H...

  • Page 140: Appendix C: Using Your Own Screw Terminal Panel

    Using Your Own Screw Terminal Panel Analog Inputs ............. . . Analog Outputs .
  • Page 141 This appendix describes additional considerations to keep in mind when designing your own screw terminal panel for use with a DT3000 Series board. Refer to Appendix B for connector and cable specifications.

  • Page 142: Analog Inputs

    Using Your Own Screw Terminal Panel Analog Inputs DT3000 Series boards have three different types of analog input configurations that you can use: • Single-ended • Pseudo-differential • Differential This section describes wiring considerations for these analog input configurations. Single-Ended Inputs With single-ended inputs, you have the maximum number of inputs but the worst-case noise immunity without external signal conditioning.

  • Page 143: Differential Inputs

    Appendix C If it is available, use Amp Low as a remote ground sense when running in pseudo-differential mode. Differential Inputs Differential inputs offer the maximum noise rejection at the expense of half your total channel count. For the best results, shielded twisted pairs are a must. The shield must connect at one end so that ground currents do not travel over the shield.

  • Page 144: Analog Outputs

    Using Your Own Screw Terminal Panel Analog Outputs The analog output channels on DT3000 Series boards have a resolution of 12 bits (even though the accuracy may be less). Data Translation ensures that the analog outputs do not break into a high frequency oscillation with high capacitance loads that occur with long cables.

  • Page 145: Digital Inputs And Counter/Timer Inputs

    Appendix C Digital Inputs and Counter/Timer Inputs To prevent damage when power is removed, you must provide current limiting circuitry for TTL-type input. On high-speed clock inputs, a ground that is located in the connector next to the clock must be connected as a twisted pair with the high-speed clock input.

  • Page 146: Digital Outputs

    Using Your Own Screw Terminal Panel Digital Outputs If you are using the high drive capability of a DT3000 Series board, ensure that the load is returned to the digital ground provided in the connector next to the outputs. If just eight of the digital outputs are switching 16 mA per output, then 128 mA of current flows.
  • Page 147 Appendix C Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 148: Index

    Index Index Numerics input ranges resolution 5B01 backplane single-value operations attaching specifications connecting analog outputs trigger sources considerations when using when not using the DT730/DT730-T 5B08 backplane analog output features attaching channel list considerations when using channels 7BP04-1 backplane connecting to 5B01 attaching connecting to 7BP16-1 considerations when using...
  • Page 149 Index minimum external clock divider minimum throughput C/C++ programs common ground sense C/T clock sources configuring the DT730 or DT730-T screw terminal external C/T clock panel internal C/T clock connecting signals C/T subsystem analog output signals cables current loop analog inputs AC1315 differential analog inputs AC1393...
  • Page 150 DT730/DT730-T counter/timer digital I/O digital outputs, when not using the ferrite clamp DT730/DT730-T formatting data DIN subsystem analog input DOUT subsystem analog output DT3000 Series Device Driver Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 151 Index frequency inserting the board base clock internal clock external A/D sample clock A/D sample external C/T clock internal A/D clock D/A output internal A/D sample clock internal gate type internal C/T clock internal retrigger clock internal D/A output clock interrupt-driven operations internal retrigger clock frequency measurement...
  • Page 152 Index MinRetriggerFreq pin assignments connector J1 connector J2 ports number of post-trigger acquisition mode differential channels power consumption gains power supply I/O channels HES14-21 resolutions PWR-977 scans per trigger pseudo-differential inputs single-ended channels when not using the DT730/DT730-T voltage ranges pulse output NumberOfChannels duty cycle...
  • Page 153 Index number of power programmable user counter/timer retrigger clock specifying a single channel frequency analog input retrigger clock frequency analog output retriggered scan mode digital I/O externally specifying one or more channels soiftware analog input returning boards to the factory analog output rising-edge gate stopping an operation...
  • Page 154 Index SupportsWrapSingle W3 jumper W4 jumper W5 jumper W6 jumper technical support W7 jumper thermocouple support Windows 7, loading the device driver ThermocoupleType Windows Vista, loading the device driver throughput Windows XP, loading the device driver maximum wiring recommendations minimum when using your own screw terminal panel transferring data wiring signals...
