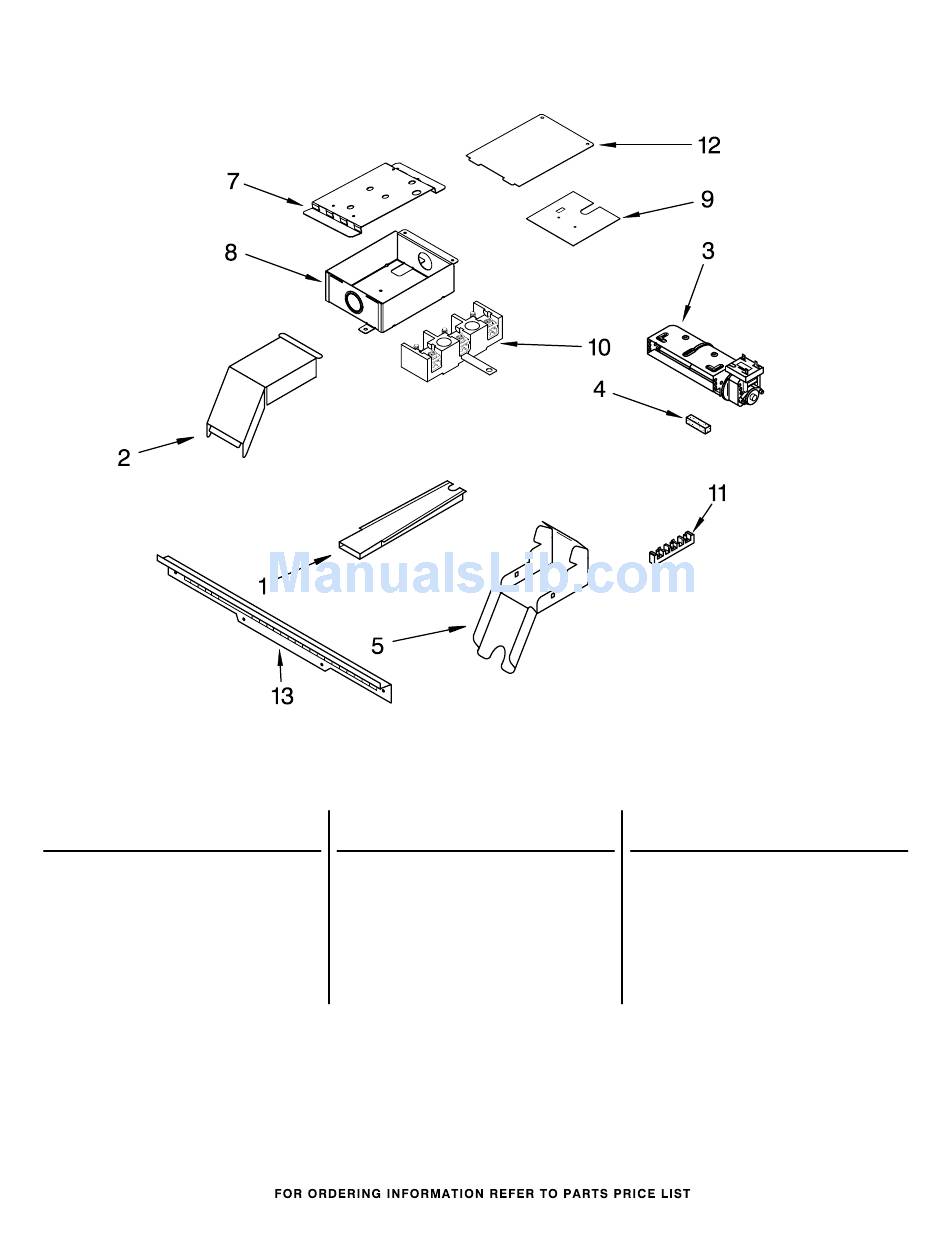

Whirlpool GY398LXPB00 Parts List page 8

For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00
Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
4449040 Screw, 8−18 x 3/8
2 4455178 Elbow, Vent Top
3 8300223 Blower
4455352 Bracket
4449809 Screw (4)
TOP VENTING PARTS
(Black) (White)
Illus. Part
No. No. DESCRIPTION
4 4451758 Block, Foam
5 4455177 Elbow, Vent Bottom
7 9759749 Bracket, Term.Box
4449809 Screw (2)
8 9757404 Box, Terminal
4449809 Screw (3)
9 9759721 Insulator,Term Box
8
(Biscuit) (S.Steel)
Illus. Part
No. No.
10 9757136 Block, Terminal
11 4449868 Block, Terminal
3400080 Screw
12 9757405 Cover, Term Box
3196160 Screw (2)
13 9757118BL Vent,
4450038 Screw
DESCRIPTION
(Control Panel)
8186215
