Whirlpool GY396LXPB02 Parts List

For Models: GY396LXPB02, GY396LXPQ02, GY396LXPT02, GY396LXPS02
8−06 Litho in U.S.A. (cre)

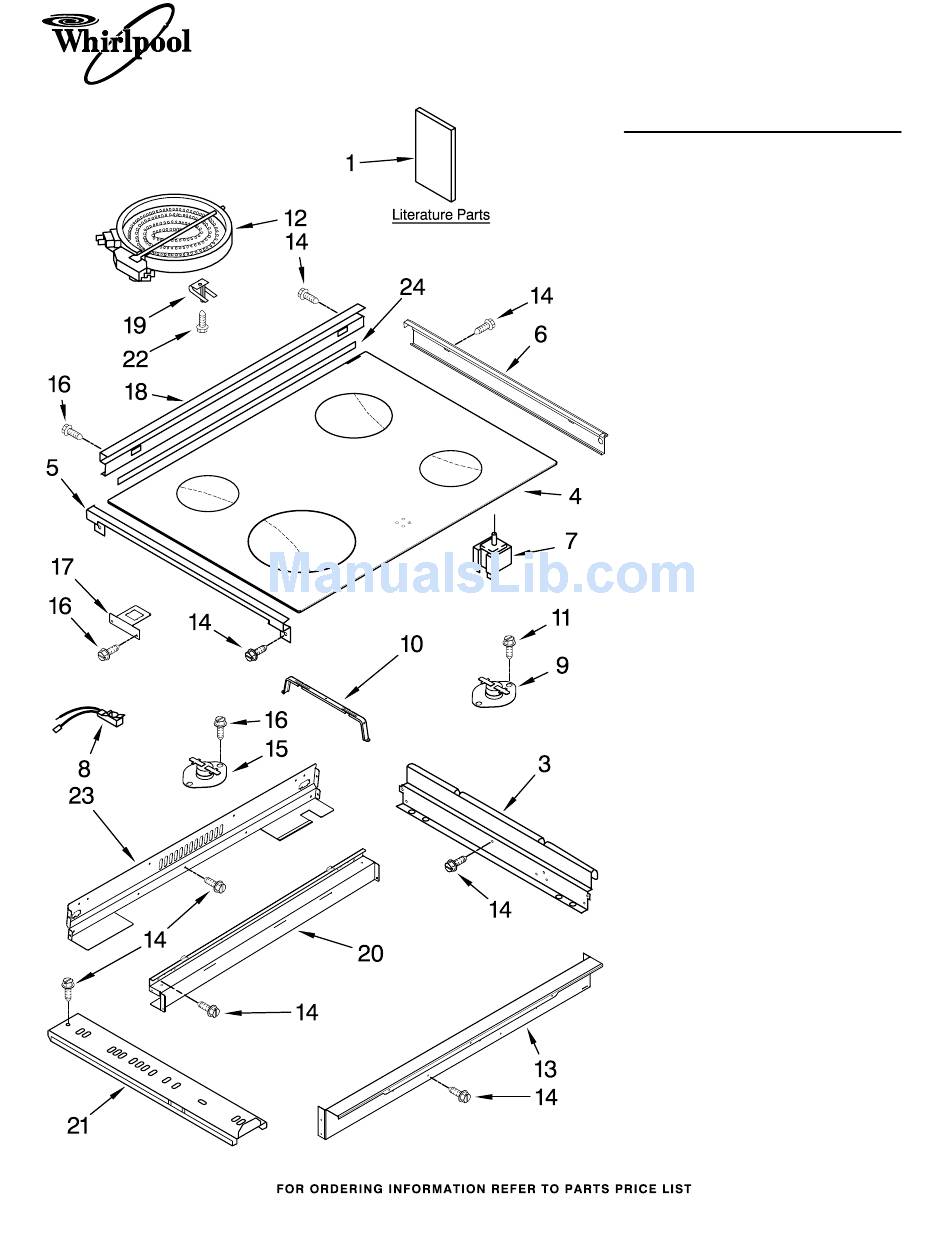

COOKTOP PARTS
(Black) (White)
1
(Biscuit) (S.Steel)
Illus. Part
No. No.
1
9762035 Installation
9762257 Use & Care Guide
9761388 Tech Sheet
9757680 Anti−Tip Instruct.
3191638 Safe Cooking Tips
9759133 Safe Cooking Tips
3 4454023 Bracket, Mounting
4
9756788BT Biscuit
9756788WH White
9762069BL Black
5 4453764 Clip, Ceran (2)
6
9759531WH White LH
9759531BT Biscuit LH
9759531BL Black LH
9759531SS S.Steel LH
9759530WH White RH
9759530BT Biscuit RH
9759530BL Black RH
9759530SS S.Steel RH
7
9750638 LR, RF
9750639 RR
9750641 LF
8 8523739 Light, Indicator
9 9759243 Thermostat (120c)
10 9756821 Support, Wiring
11 4449809 Screw (2)
12
8523698 1200W LR,RF
8523696 1800W RR
8523692 2500W LF
13 9757800 Bracket, Front
14 3196537 Screw
15 9759944 Thermostat (60c)
16 3196160 Screw (2)
17 9758799 Bracket, Ind. Lamp
18
9760520WH White
9760520BT Biscuit
9760520BL Black
9760520SS S.Steel
19 9759094 Spring, Locator
20 9759963 Bracket, Rear Sprt
21 8285962 Rail, Element (2)
22 246119 Screw
23 9759628 Cover, Cktp Rear
24 9756450 Gasket
30" Slide−In
ELECTRIC OVEN
SELF CLEAN
DESCRIPTION
Literaturre Parts
Instructiions
Cooktop
Trim−CkTop, SI
Switch, Infinite
Element, Surface
Support
Trim, Extension
Part No. 8186751
