W W alk k To Fit T Tread d mill
Item #
#3050
V1.0-05
52014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3050 and is the answer not in the manual?

Questions and answers

Dana Klibert
May 19, 2025

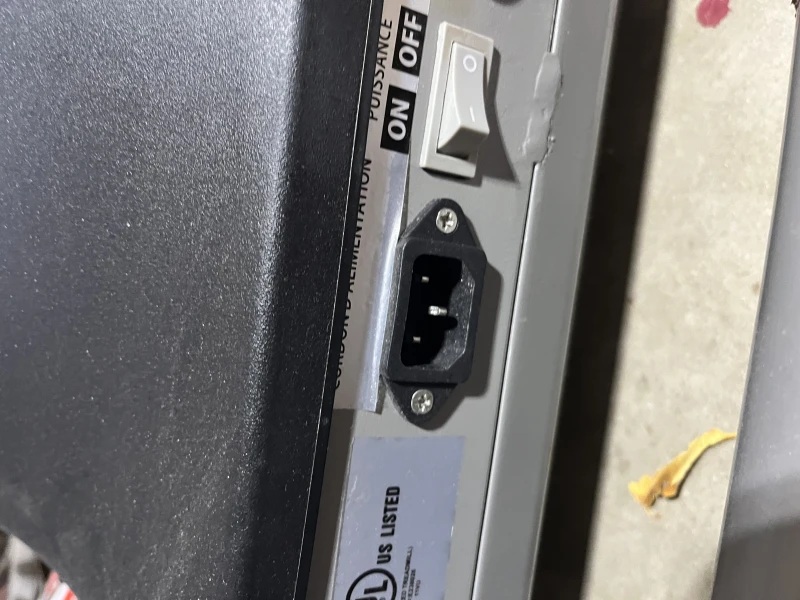

I need a power cord for the progear treadmill model 3050, where can I buy one?

User image 682b508f13740
0

Related Manuals for ProGear 3050

Summary of Contents for ProGear 3050

  • Page 1 W W alk k To Fit T Tread d mill Item # #3050 V1.0-05 52014...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SERVICE ------------------------------------------------------------------------- 2 IMPORTANT LABELS -------------------------------------------------------- 3 PRODUCT SAFETY ----------------------------------------------------------- 4 PARTS DRAWING ------------------------------------------------------------- 8 PART LIST ----------------------------------------------------------------------- 9 TOOLS ----------------------------------------- ---------------------------------11 ASSEMBLY ---------------------------------------------------------------------- 12 COMPUTER --------------------------------------------------------------------- 15 STORAGE ----------------------------------------------------------------------- 17 ADJUSTMENT ------------------------------------------------------------------ 18 LUBRICATION ------------------------------------------------------------------ 19 MAINTENANCE & TROUBLE SHOOTING ----------------------------- 20 WARM UP ----------------------------------------------------------------------- 23 WARRANTY -------------------------------------------------------------------- 24 FAX FORM ---------------------------------------------------------------------- 25...

  • Page 3: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY To request product service and order replacement parts, please call our customer service department at: 1-844-641-7920 Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time, service@paradigmhw.com or email us at: Please visit our website at www.paradigmhw.com. Please have the following information ready when requesting for service: Your name Phone number...

  • Page 4: Important Labels

    IMPORTANT LABELS 1 1 4 0 8 3 3 0 5 0 0 0 0 0 1 Serial number/ Numéro de série MADE IN CHINA/FABRIQUE EN CHINE...

  • Page 5: Product Safety

    PRODUCT SAFETY Basic precautions should always be followed, including the following safety instructions when using this treadmill: Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, please read the following:  Always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing.
  • Page 6 PRODUCT SAFETY  Do not operate the treadmill near a blanket. Excessive heating can occur and cause fire, electrical shock, or injury to user.  Keep electrical cord away from heated surfaces.  Never insert any object into any opening.  Keep the treadmill on a solid, level surface with the minimum safety area clearance of 2000mm x 1000mm of the treadmill.
  • Page 7 PROD DUCT SA AFETY WARN ING: Connect t the trea dmill to a a properly y grounde ed outlet only y. See gr rounding instructio ons. AVE T THES SE IN STRU UCTIO ROUN NDING INSTR RUCTI IONS  This prod duct must b be grounde ed.
  • Page 8 PRODUCT SAFETY  This unit must be plugged into a nominal 120 volt, which has a grounding.  Keep hands clear of all moving parts. Never place hands, feet under the treadmill.  Do not use the treadmill on a carpet that is greater than 1/2 inch in height. ...

  • Page 9: Parts Drawing

    PART DRAWING...

  • Page 10: Part List

    PART LIST Part Description Qty Part # Description 001 Main Frame 1 031 Stabilizer Tube (Ø50.8x300) 002 Bolt (M6x60mm) 2 032 Stabilizer Knob (M8xØ40xØ10.5x15.5mm) 003 Right Rear Cap 1 033 Handlebar Knob (M10xØ50x108) 004 Left Rear Cap 1 034 Bolt (M5x8mm) 005 Cover (Ø38xØ48x28) 2 035 Power Cord (1.8M-1.0/3C)
  • Page 11 PART LIST Part # Description Qty Part # Description Short Knob (Ø8xØ20x36) 1 075 Washer (Ø21xØ8.5x1.8t) Speed Button with Wire 1 076 Earth Lead (120mm) (950MM 3P) Mode/On Off Button with Wire 1 077 Wire (400mm) (950MM 3P) Nylon Washer (M10) 4 078 M8 Nut Cap Bolt (M10x100mm)

  • Page 12: Tools

    TOOLS Ring Spanner 1 pcs Screw Head Allen Wrench 5mm 1pcs...

  • Page 13: Assembly

    ASSEMBLY Step 1 Place the treadmill in the upright position and then place one hand on the rear end of Main Frame (1) and use your other hand to pull out the Spring Knob (23). Lower the Main Frame (1) down from the rear of treadmill until the Spring Knob (23) "pops" down into the locked position.
  • Page 14 ASSEMBLY Step 2 Pull the Short Knob (61) and then lift the Handlebar (68) all the way up. Tighten the Handlebar (68) to the Stabilizer (57) with two Handlebar Knobs (33) and two M10 Washers (74). Step 3 Attach the Computer (70) onto the Handlebar (68) with two Square Neck Screw (69).
  • Page 15 SSEMBL ere are five e Adjustabl e Pads (28 8) on the b bottom of b both Stabiliz zer Tubes (31) d Stabilizer r (57). Tu rn the Adju ustable Pa d (28) as n needed to level the trea admill.
  • Page 16 OMPUT ick Start Flip p the Maste er Power S Switch that is located at the fron t of the tre eadmill to th he ON sition. The t treadmill w will self-test t for 2 seco onds on st artup and then the s peed...

  • Page 17: Computer

    COMPUTER Computer Functions: TIME: Displays your elapsed workout time in minutes and seconds. Press the START button to start exercise. To set TIME press the MODE button ONCE until you see the TIME begin blinking. Press the FAST or SLOW button to change the time, each time you press the FAST button TIME should increase 1 minute and SLOW button TIME should decrease 1 minute.

  • Page 18: Storage

    STORAGE Handlebar Knob Spring Knob Handlebar Short Knob FOLDING THE TREADMILL For your convenience, the treadmill can be folded up and placed in a storage area. To fold the treadmill place one hand on the rear end of main frame and use your other hand to pull out the Spring Knob, then lift the main frame up until the Spring Knob "pops"...

  • Page 19: Adjustment

    ADJUSTMENT Belt Adjustment: The belt is adjusted at the factory; it may come loose during transportation and/or from use. After prolong use of the treadmill, the belt will stretch out. If the belt is shifting to the left, turn on the main power switch of treadmill and let the belt run at the speed of 1-1.5 MPH.

  • Page 20: Lubrication

    LUBRICATION   The treadmill has already been coated with "Silicone Oil" in advance. Silicone oil is a non-volatile oil and by the time you receive should have permeated through the belt. There will be no need to re-apply the oil under normal circumstances. To maintain the belt, "Silicone Oil"...

  • Page 21: Maintenance & Trouble Shooting

    MAINTENANCE & TROUBLE SHOOTING  WARNING: To prevent electrical shock, please turn off and unplugg(ed) the treadmill before cleaning or performing routine maintenance. CLEANING The treadmill can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents. Be careful not get excessive moisture on the display panel as this might cause an electrical hazard or electronics to fail.
  • Page 22 MAINTENANCE & TROUBLE SHOOTING  Problem Potential Causes Corrections Er 1 (Computer did Bad communication for Check the cables are in good not receive any upper and lower connection. signal for 30 controller. seconds.) The communicate signal Turn off the Master Power from upper or lower Switch to the OFF position, controller is bad by wait 30 seconds, then turn on...
  • Page 23 MAINTENANCE & TROUBLE SHOOTING  Problem Potential Causes Corrections Er 5 (Excessive Check your machine to make Turn off the Master Power Switch sure the running belt is drive motor to the OFF position, wait 30 without any abnormal current.) seconds, then turn on the Master interference.

  • Page 24: Warm Up

    WARM U adriceps S Stretch With h one hand d against a a wall for b balance, re ach behind u and pull y your right fo oot up. B Bring your h heel as clo to y your buttoc cks as poss sible.

  • Page 25: Warranty

    WARRANTY Paradigm Health & Wellness, Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in according to Paradigm Health & Wellness, Inc.’s Owner’s Manual. Paradigm Health &...

  • Page 26: Fax Form

    FAX FORM Paradigm Health & Wellness, Inc. PARTS REQUEST FAX FORM Please fax this form to (1-626-810-2166) OR YOU CAN EMAIL CUSTOMER SERVICE REQUESTS TO service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ (Email Address) ____________________________________ SERIAL#: __________________________________________ MODEL#: __________________________________________...
