Keystone WT05 Quick Start Manual

Getting started

Congratulations on your purchase of this powerful WIFI Panic Button .Once the Panic Button is pressed, it will send an alarm signal to your
smart phone via your home/business WIFI connection. Such signal is selectable as an Alarm Sound + Notification, Notification Sound +
Notification or just a silent Notification. This product works together with your smart phone and internet via WIFI. Please check that your
smart phone is either an Android or IOS (iPhone) and that the latest firmware has been installed. Please also check that your WIFI router is
working properly and that its operating manual confirms that it operates on 2.4 GHz with WPA/WPA2 encryption.

Installing the APP

1
install
1. Before powering up the Button, please install our free 'NEXUSHOME ' APP onto your phone. The APP is available in an IOS version on the
Apple App Store and an Android version on the Google Play Store. Ensure your phone is connected to WIFI to complete account setup.
2. Once downloaded, click and open the APP. The following message will appear. Please click OK.
3. Now complete your User Profile by inputting your email address and a 6 digit or longer Password, click the REGISTER button, check your
email and click the link in the email from "Netify" to complete registration.

Setting up your DEVICE

1
connect WiFi
1. Go to all the locations in the Building where you eventually want to use the Button either as a portable device or as a fixed panic button.
Look at your smart phone and ensure you have a good and steady WIFI connection there. Now, exit the APP, open SETTINGS on your
smart phone and click "Wi-Fi". Check what is showing. If you just have a main Router, it should be showing its reference name (or SSID).
Each Router or Extender has its own unique reference name or SSID. However, if you have a network with one or more extenders, it may
also be showing, underneath, under "Choose a Network", the SSID of an overlapping Extender, as in the picture 1 above. In this case,
check whether you are closest to the main Router or to an Extender and manually select, if necessary, the alternative closest/strongest
SSID. THIS IS VERY IMPORTANT. The Button will only communicate Alarm signals to the WIFI Router or Extender that you are about to
"pair" it to so it is essential that you pair it to the closest/strongest Wi-Fi signal. It also means that if you are using the Button as a Portable
Device, you will need to have Wi-Fi coverage in that area of the particular Router or Extender that you pair it to.
2. Re-Open the APP and click
"ADD DEVICE/WIFI SETTING".
3. Please select "Wireless" at the bottom right hand side of the Page.

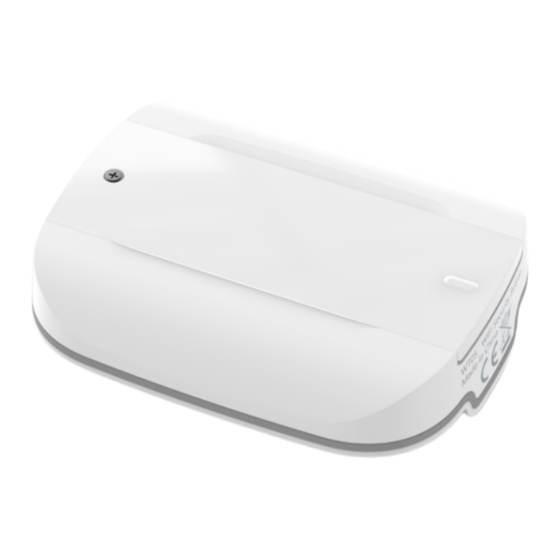

WT05
WIFI Panic Button

Product Specification

•
•
•
•
•
•
•
•
•
•
2
click OK
2
click "Add Device/WiFi Setting"
PROFILE at the bottom of the opening HOME page. This will take you to the APP's SETTINGS Page. Click
Built-in WIFI module that sends all alerts to your Smartphone
Super low power consumption, typically only 2 x AAA batteries/year
Separate low battery and loss of signal notifications
Optional Neck cord included
Powerful APP for your Smartphone and Life-time cloud service provided
free of charge
User can create floorplans in the APP showing device location
APP records last 30 activations time and date stamped
3M double sided tape for permanent fixing and neck rope included
Blue LED for status indication
Schedule up to 4 periods per day when unit is automatically turned off
3
register
1
3
choose Wireless Pairing
