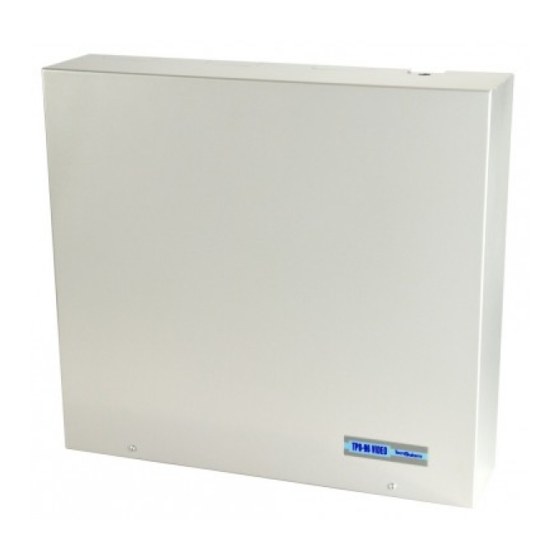

Tecnoalarm TP8-96 VIDEO Installer Manual

8 to 96 zones expandible control panel with integrated ethernet switch
Hide thumbs Also See for TP8-96 VIDEO:

Advertisement

Quick Links

Download this manual
TP8-96 VIDEO
8 TO 96 ZONES EXPANDIBLE
CONTROL PANEL
WITH INTEGRATED
ETHERNET SWITCH
864 ZONES
CONTROL PANEL
INSTALLER
MANUAL
Release:
Update:
Language:
FW version:
EN 60950
EN 50130-4
EN 50081-1
1.1
October 2012
English
0.7.05

Advertisement

loading
Need help?

Need help?

Do you have a question about the TP8-96 VIDEO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tecnoalarm TP8-96 VIDEO

Summary of Contents for Tecnoalarm TP8-96 VIDEO

  • Page 1 TP8-96 VIDEO 8 TO 96 ZONES EXPANDIBLE CONTROL PANEL WITH INTEGRATED ETHERNET SWITCH 864 ZONES CONTROL PANEL EN 60950 EN 50130-4 EN 50081-1 INSTALLER MANUAL Release: Update: October 2012 Language: English FW version: 0.7.05...
  • Page 2 The product features can be subject to change without notice. Unauthorized reproduction or distribution of this manual, or any portion of it, on any device and in any form, is prohibited. The contents of this manual may be subject to change without notice Installer Manual - TP8-96 VIDEO...
  • Page 3 CONFORMITY Hereby, Tecnoalarm srl declares that the present equipment is in compliance with the essential requirements and other relevant provisions of the R&TTE 1999/05/EC directive. The declaration of conformity is available on the website: www.tecnoalarm.com. TP8-96 VIDEO - Installer Manual...
  • Page 4 Installer Manual - TP8-96 VIDEO...
  • Page 5 PROGRAMMING OF THE KEYS PROGRAMMING OF THE WIRELESS KEYS EXPLANATORY NOTES WIRELESS DEVICE CONFIGURATION PROGRAMMING OF THE WIRELESS SIRENS PROGRAMMING OF THE WIRELESS CONSOLES HARDWARE CONFIGURATION HARDWARE CONFIGURATION WITH AUTOMATIC WIRING HARDWARE CONFIGURATION WITHOUT AUTOMATIC WIRING TP8-96 VIDEO - Installer Manual Index...
  • Page 6 DELETION OF THE ENTIRE SYSTEM CONFIGURATION (RESET OF DEFAULT SETTINGS) BACKUP-RESTORE OF THE WIRELESS CONFIGURATION LOCAL FIRMWARE UPGRADE ADDITIONAL PAGES Electronic board A-11 Terminals A-12 System A-13 Camera connection A-14 Supply by terminals A-15 Supply by cables + splitter A-16 Index Installer Manual - TP8-96 VIDEO...
  • Page 7 Bus sirens: Association of the sirens to the programs - After blinking - Volume setting - Siren mode - Sound type - Functioning mode - Enabling/disabling of the antifoam and antidrilling protection Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 8 Ethernet: Configuration of the integrated 8 ports Ethernet switch - IP address - Subnet mask - Gateway - Programming of the communication port for the Local Server Tecnoalarm, Remote Server Tecnoalarm, Tecnoserver Tecnoalarm, Tecno_Out Report codes: Association of the events to the channels - Programming of the...
  • Page 9 • By whom? User 1 • Which program? Program 2 • How? By telephone Operations: Creation/modification/deletionof an operation Telephone directory: Programming of the telephone numbers associated to one or several operations Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 10 Warning: In order to use this function, it is necessary to disabled automatic wiring it into the “Ver.” Menu. This menu allows to create and to manage the floor plans associated to the system. This menu is only enabled if you have the corresponding Tecnoalarm license and the automatic wiring option is disabled.
  • Page 11 Send (restore): Transmission to the control panel of the programming data regarding the wireless devices previoulsy saved on the PC (Restore of the data) Last backup: Date and time of the last backup Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 12 This function is available only if you are connected to the control panel. Introduction to the TP8-96 VIDEO system Installer manual - TP8-96 VIDEO...
  • Page 13 Input expansions - 4 zone inputs - 1 programmable output CONSOLE - MAX. 15 LCD300/S LCD display with 2 lines of 16 characters - 32 signaling LED - 16 keys - Integrated speaker for voice synthesis Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 14 3 RS485 loops - 6 lines. The device has no address. SAEL 2000PRO BUSL Self-powered outdoor siren with RSC technology. Max. 8 sirens can be connected to the Siren Bus. Introduction to the TP8-96 VIDEO system Installer manual - TP8-96 VIDEO...
  • Page 15 OUTPUT EXTENSIONS - MAX. 16 Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 16 Introduction to the TP8-96 VIDEO system Installer manual - TP8-96 VIDEO 1-10...
  • Page 17 Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual 1-11...
  • Page 18 N.B.: The free (i.e. undefined) outputs/signaling are available for advanced programming. Introduction to the TP8-96 VIDEO system Installer manual - TP8-96 VIDEO 1-12...
  • Page 19 ASSOCIATION OF THE LOGIC ZONE TO THE PHYSICAL ZONE The TP8-96 VIDEO can control max. 96 zones. The zones can be associated to the zone inputs of the installed hardware. The system configuration may provide more inputs than the control panel can control. It is for this raison, that you have to choose the inputs to be controlled from those provided by the modules and draw up a zone list.
  • Page 20 Hard-wired zones with standard wiring - Contact type: NC, NO, EOL resistor, DEOL resistor (traditional movement detectors and detectors with RDV technology) Group 2 Wireless zones - Contact type: Wireless (Tecnoalarm detectors only) Group 3 Hard-wired zones with zone bus wiring - Contact type: ZONE BUS (WINBEAM/S and DOORBEAM/S...
  • Page 21 The functioning mode of the key zone can be programmed as on/off or pulse (see also the option window). • Tamper zone The zone is direct and always enabled (even if the control panel is disarmed). It is equivalent to the ZT input and releases zone tamper alarms. TP8-96 VIDEO - Installer Manual Zone configuration...
  • Page 22 Movement detectors with RDV technology Type Select the detector type from the Tecnoalarm devices listed for each technology. The items Technology and Type are editable. It is possible to enter the desired description and name in the corresponding items. In this case, the unit of measurement of the filter is not automatically filled in, it is necessary to select it manually (see Filter).
  • Page 23 It is sufficient to modify the desired parameters (e.g. the description). Repeat the procedure for every zone to be configured (max. 96), then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Zone configuration...
  • Page 24 Tamper disabling Enabling/disabling of the tamper function. Check the item to enable the function. Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving Zone configuration Installer Manual - TP8-96 VIDEO...
  • Page 25 The alarm is released if three adjacent beams in the lower part of the barrier or two adjacent beams are interrupted for the response time programmed. • 1 for T The alarm is released if any beam is interrupted for the response time programmed. TP8-96 VIDEO - Installer Manual Zone configuration...
  • Page 26 Consider the distance between transmitter and receiver as well as the environmental conditions Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving Zone configuration Installer Manual - TP8-96 VIDEO...
  • Page 27 Permits programming of the sensivity of the antimasking function (little or highly sensitive). Antimasking IR Enabling/disabling of the antimasking function of the infrared section. Antimasking MW Enabling/disabling of the antimasking function of the microwave section. TP8-96 VIDEO - Installer Manual Zone configuration...
  • Page 28 Warning: It is recommended to use the detector active function with program armed. Tamper Enabling/disabling of the anti-tamper protection. Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving Zone configuration Installer Manual - TP8-96 VIDEO 2-10...
  • Page 29 Defines whether the antimasking function is always active or only active if the program is armed. Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Zone configuration 2-11...
  • Page 30 The alarm is activated if one of the lower beams (beam 1 or 2) is interrupted for the defined time (Ta) multiplied by a numerical coefficient Antimasking filter (MASK) Enabling/disabling of the antimasking function and programming of the time necessary to release the antimasking signal (disabled, 3, 30 or 120 seconds). Zone configuration Installer Manual - TP8-96 VIDEO 2-12...
  • Page 31 Defines the kind of power supply (AC or external DC) independently for TX and RX. Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Zone configuration 2-13...
  • Page 32 Select the function by clicking on the function key, then check the zones to be associated. The zones may be identified either by the zone number or the description assigned during configuration. Press: to confirm Abandon to quit without saving Zone configuration Installer Manual - TP8-96 VIDEO 2-14...
  • Page 33 Remember that the display of the console views max. 16 digits. All further characters will be cut off. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Zone configuration 2-15...
  • Page 34 Enables the console for the control of all of the system’s programs, even those not associated to the LED. Status of the programs of which is not shown by the LED, will be viewed on the display. Zone configuration Installer Manual - TP8-96 VIDEO 2-16...
  • Page 35 The displayed message may only be cancelled by the programmed code: None Privileged user code Master code Installer code Press: to confirm and close the zone configuration tables Abandon to undo the configuration of the consoles TP8-96 VIDEO - Installer Manual Zone configuration 2-17...
  • Page 36 To associate a LED to a determined program, click on the arrow next to the program number and select the program (1 to 8) to be associated. Press: to confirm and quit Abandon to quit without saving Zone configuration Installer Manual - TP8-96 VIDEO 2-18...
  • Page 37 The buzzer is active during the programmed alarm time. End of by-pass warning The buzzer is active while the end-of-by-pass warning is displayed. Automatique arming warning The buzzer is active while the automatic arming warning is displayed (arming timer). TP8-96 VIDEO - Installer Manual Zone configuration 2-19...
  • Page 38 To select the logic siren click on the arrow next to the inscription Siren 1 and scroll the siren list (1 to 8). Programmable logic output PGM To associate the output to the programs check the item beneath the program number. Zone configuration Installer Manual - TP8-96 VIDEO 2-20...
  • Page 39 Permits setting of the antimasking control of the zones: Always active Alarm if program armed Alarm and signaling if program armed Check the corresponding item to enable the option, then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Zone configuration 2-21...
  • Page 40 Indicates the name of the physical output of the module. B Programmable item Select the function from the drop-down menu. C Programmable item Select the functioning logic of the output from the drop-down menu Zone configuration Installer Manual - TP8-96 VIDEO 2-22...
  • Page 41 SIR INT OUT1 OUT2 Modules SPEED ALM8 PLUS SPEED 8 PLUS SPEED 4 PLUS SPEED ALM8 SPEED 8 SPEED 4 SPEED 8 STD Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Zone configuration 2-23...
  • Page 42 The siren is not activated • Sounding Only the sounding is activated • Flashing light Only the flashing light is activated • Sounding+flashing light The sounding and the flashing light are activated Zone configuration Installer Manual - TP8-96 VIDEO 2-24...
  • Page 43 Permits enabling/disabling of the antifoam optical protection. Enabling antidrilling Permits enabling/disabling of the antidrilling protection. Check the corresponding item to enable the option, then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Zone configuration 2-25...
  • Page 44 Zone configuration Installer Manual - TP8-96 VIDEO 2-26...
  • Page 45 The control panel is able to transmit alarm signaling or other data using either digital protocols or pre-recorded vocal messages (composed of words of the vocabulary). It can transmit and receive alarm signaling using the digital Tecnoalarm protocol or the most frequently used digital protocols.
  • Page 46 The second number (max. 17 digits) is only called if the first call is unsuccessful (line busy or no answer). Format (protocol) Call-back communication protocol. The protocol for call-back communications is unchangeable, i.e. digital Tecnoalarm format (000 Tecnoalarm). Disable redirection The redirection of call-back permits the deviation of the call-back to a telephone number different from those entered in the telephone configuration table.
  • Page 47 The telephone section of the control panel can be set so as to block the specified channels upon reception of the blocking command (* on the telephone dial). According to programming, the communicator block affects either the vocal, digital or Tecnoalarm channels or all three and this either singularly or altogether: Vocal The communicator block affects only those channels transmitting voice messages.
  • Page 48 Permits enabling of the airtime request by sending an SMS message to the service provider as an alternative to telephone call. Check the item to enable this function. Provider No. for airtime request The telephone number the service provider has reserved for receiving the SMS with the remaining airtime request. Telephone section configuration Installer Manual - TP8-96 VIDEO...
  • Page 49 Enabling Permits enabling/disabling functioning of the GRPS channel of the integrated GSM interface. Port Enable the Tecnoalarm service. By default 10001. Access point Defines the access point to the network. The GPRS connection is not a telephone connection, but it is rather similar to the Ethernet connection. The connection is made by means of the Internet network.
  • Page 50 SMS (max. 80 characters) to the programmed emergency number. Check the item to enable the emergency SMS and enter the message to be transmitted. The text of the message to be transmitted is programmed by default but can be modified. Telephone section configuration Installer Manual - TP8-96 VIDEO...
  • Page 51 Enabling of guided menu (terminal S) The TP8-96 VIDEO control panel composes the voice messages itself with the help of the onboard vocabulary and communicates it together with the recipient’s telephone number via the S-wire (speaker terminal on the CPU board) to the GSM telephone communicator.
  • Page 52 LOCAL SERVER TECNOALARM Check the item to enable/disable the function. Port TCP/IP communication port of the local Tecnoalarm server channel. Communication port for local programming by PC. Local connection between PC and control panel. White list List of 3 acceptable communication addresses. If the white list contains addresses, the communication is accepted from these addresses.
  • Page 53 If no address has been programmed (i.e. all 3 addresses are 0-0-0-0), the communication is accepted from any other address. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Telephone section configuration...
  • Page 54 The report codes configuration table permits both the association of the events to the channels and programming of the report codes. The report codes identify the type of alarm or event transmitted in digital calls towards non-Tecnoalarm devices, such as monitoring stations of other manufacturers.
  • Page 55 Permits recording of the opening message using either a microphone and the sound card of the PC and the Tecnoalarm software, or sound management software installed on the PC, or by telephone during a voice call. It is possible to use any of the three recording methods.
  • Page 56 Select the file Msg_cnf.tcn. The control panel uses the standard vocabulary if the item next to the vocabulary button is empty. Press: to confirm and quit Abandon to quit without saving Telephone section configuration Installer Manual - TP8-96 VIDEO 3-12...
  • Page 57 Command = < commutation > • Command = < stand-by > Repeat the operations for every remote control to be configured (max. 8), then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Telephone section configuration 3-13...
  • Page 58 The last item can be finished with the letter G. • The first 4 items correspond to the Tecnoalarm monitoring station with which the system must communicate. • The fifth item indicates the access port (it is not compulsory to fill in this item).
  • Page 59 Ethernet switch of the control panel Protocol tables The protocols are divided into three categories (digital, Tecnoalarm, vocal). For each protocol the number code, the description, the type (primary, backup, secondary, Ethernet) and the transmission mode are indicated.
  • Page 60 Telephone section configuration Installer Manual - TP8-96 VIDEO 3-16...
  • Page 61 The communicator block distinguishes: vocal, digital and Tecnoalarm protocols. It can be selective for each category of protocols, i.e. it can be set so as to act on the single or on all of the channels which use a determine category of protocols and are associated to the same event.
  • Page 62 Call-back The monitoring station calls the control panel which recognizes that the call comes from a Tecnoalarm monitoring station and answers the call. During the communication, the ID code and the type of control panel are checked. The control panel closes the communication and calls the monitoring station according to the programmed parameters.
  • Page 63 It is possible to initiate a call-back locally through the LCD300/S console. Select the menus Telephone, then Call-back from the installer menu (access with installer code). The control panel immediately calls the monitoring station according to the programmed parameters. TP8-96 VIDEO - Installer Manual Telephone section configuration 3-19...
  • Page 64 Ethernet Warning:The following programming must be transcribed into the user archive: IP address of the control panel and the communication port of the Local Server Tecnoalarm. Communication port of the Remote Server Tecnoalarm. The IP address should only be filled if a static IP address is available, otherwise leave the item blank.
  • Page 65 If either the password or the telephone number are incorrect, there will be no answer. If the remote control number or its name are incorrect, the control panel returns an error message. TP8-96 VIDEO - Installer Manual Telephone section configuration...
  • Page 66 Telephone section configuration Installer Manual - TP8-96 VIDEO 3-22...
  • Page 67 The exit time is the interval between arming of the control panel and the effective detection of active alarms. Programming valid for delayed zones 1 and 2 only. From 0 to 59 minutes and 59 seconds TP8-96 VIDEO - Installer Manual Time parameter configuration...
  • Page 68 The supervision alarm is released if one of the wireless devices managed by the control panel does not communicate with the control panel for a time superior to the programmed supervision interval. From 2 to 23 hours and 59 minutes Press: to confirm and quit Abandon to quit without saving Time parameter configuration Installer Manual - TP8-96 VIDEO...
  • Page 69 However, if it is associated to the remote controls, the available functions are: remote activation and remote deactivation. All the other functions concern the programs. TP8-96 VIDEO - Installer Manual Time parameter configuration...
  • Page 70 (i.e. minutes, hours or days) as indicated in the beside figure. Channel Select the channel (A...H) which will execute the test. Make sure that the channel in question uses the TCP/IP Tecnoalarm data protocol (number code 192). Store in the event log Enables/disables the storage of the test call server in the event memory of the control panel.
  • Page 71 (access programming). The description can also be modified or programmed in this menu by typing directly in the description item. TP8-96 VIDEO - Installer Manual Time parameter configuration...
  • Page 72 The number of the access period will be viewed as a confirmation of the association. To cancel the association, click again on the same item. See § 4.5 for explanatory notes. Press: to confirm and quit Abandon to quit without saving Time parameter configuration Installer Manual - TP8-96 VIDEO...
  • Page 73 A sun will be shown next to the date. Warning: The change from winter to summer time and back happens automatically and always in the night at respectively 2 and 3 o'clock. TP8-96 VIDEO - Installer Manual Time parameter configuration...
  • Page 74 1 will be viewed on the console). Clicking the 4th time, the selected message will be remove. Repeat the procedure for the second year (Customization 2nd year). Press: to confirm and quit Abandon to quit without saving Time parameter configuration Installer Manual - TP8-96 VIDEO...
  • Page 75 EXPLANATORY NOTES The following schemes evidence the steps of configuration of the timers, test call, test call server and access periods. Timers Test call TP8-96 VIDEO - Installer Manual Time parameter configuration...
  • Page 76 Test call server Access periods Time parameter configuration Installer Manual - TP8-96 VIDEO 4-10...
  • Page 77 Programming of the attributes of the codes SELECTION OF THE CODE Select the code to be programmed from the drop-down menu. The Master code is the first displayed followed by the 200 standards user code. TP8-96 VIDEO - Installer Manual Access configuration...
  • Page 78 If the function is enabled, the user will not be entitled to arm or disarm the associated programs from a distance by telephone. If the item is checked, the remote access by telephone is disabled. Access configuration Installer Manual - TP8-96 VIDEO...
  • Page 79 If the item is checked, the access by remote control is disabled. Repeat the procedure for all the user codes (1 to 200). See § 5.4 for explanatory notes. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Access configuration...
  • Page 80 In addition to the key-program association it is indispensable to associate the programs to the key reader, otherwise the introduction of the key will be ineffective. Access configuration Installer Manual - TP8-96 VIDEO...
  • Page 81 If the item is checked, the device has been learnt. Repeat the procedure for all the user codes (1 to 100). See § 5.4 for explanatory notes. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Access configuration...
  • Page 82 Warning: If the by-pass function is enabled, the functions “Disarming”, “Arming program” and “Disarming program” are not available: • Arming program becomes By-pass program • Disarming program becomes End of by-pass program • Disarming Access configuration Installer Manual - TP8-96 VIDEO...
  • Page 83 (1 pulse). Repeat the procedure for all the wireless keys (1 to 100). See § 5.4 for explanatory notes. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Access configuration...
  • Page 84 Disarming in case of alarm with automatic communicator block The example refers to the function Automatic communicator block (see programming of the attributes) • By code page 5-2 • By key/transponder/RFID card page 5-5 • By wireless key page 5-7 Access configuration Installer Manual - TP8-96 VIDEO...
  • Page 85 The example refers to the function Multiple and direct arming (see programming of the attributes) page 5-3 Direct disarming The example refers to the function Direct disarming (see programming of the attributes) page 5-3 TP8-96 VIDEO - Installer Manual Access configuration...
  • Page 86 The examples refers to the function Arming with exclusion of the open zones (see programming of the attributes) • By code page 5-3 • By key/transponder/RFID card page 5-5 • By wireless key page 5-7 Access configuration Installer Manual - TP8-96 VIDEO 5-10...
  • Page 87 (see programming of the attributes). • By key/transponder/RFID card page 5-5 • By wireless key page 5-7 TP8-96 VIDEO - Installer Manual Access configuration 5-11...
  • Page 88 Access configuration Installer Manual - TP8-96 VIDEO 5-12...
  • Page 89 From 0 to 1 min. and 59 sec. Flashing time (mm:ss) Defines the blinking time in case of alarm or technical alarm. From 0 to 15 min. TP8-96 VIDEO - Installer Manual Wireless device configuration...
  • Page 90 Only the sounding is activated Flashing light Only the flashing light is activated Sounding+flashing light The sounding and the flashing light are activated Press: to confirm and quit Abandon to quit without saving Wireless device configuration Installer Manual - TP8-96 VIDEO...
  • Page 91 1 to 8 of the keypad. To associate the programs to the keys, select the program corresponding to the number of the key (1 TO 8). Repeat the same procedure for all the other programs. TP8-96 VIDEO - Installer Manual Wireless device configuration...
  • Page 92 Disables the supervision and the test transmission of the console. If the item is checked, the supervision is disabled. Repeat the operations for all the wireless consoles (1 to 4). Press: to confirm and quit Abandon to quit without saving Wireless device configuration Installer Manual - TP8-96 VIDEO...
  • Page 93 The Hardware configuration menu permits the addition or deletion of hardware modules to/of the viewed configuration. The hardware configuration of the system can be edited even if you are not connected to the control panel. TP8-96 VIDEO - Installer Manual Hardware configuration...
  • Page 94 N.B. It is possible to add or delete devices at any time during programming. The new module is added to the system configuration viewed. Next to the module the dipswitch address is shown. Hardware configuration Installer Manual - TP8-96 VIDEO...
  • Page 95 Select Delete to cancel a device from the system configuration Click on the device to be deleted On the screen is viewed the image beside: Commands available to confirm the deletion to undo the deletion TP8-96 VIDEO - Installer Manual Hardware configuration...
  • Page 96 If you enlarge the software window, the worktop maintains the disposition of the devices (of the reduced window). To rearrange the devices, enter and exit any menu. Hardware configuration Installer Manual - TP8-96 VIDEO...
  • Page 97 Permits the moving of the devices on the worktop Draw power supply wiring Permits drawing of the red lines representing the power supply Draw RS485 bus Permits drawing of the blue lines representing the RS485 serial bus TP8-96 VIDEO - Installer Manual Hardware configuration...
  • Page 98 Select Delete Click on the trace to be deleted SAVE OF THE CONFIGURATION Once configuration has been finished, press: To save the hardware configuration and quit Abort To undo the changes made and quit Hardware configuration Installer Manual - TP8-96 VIDEO...
  • Page 99 Therefore signaling is green. However, the device with address 2 is not present on the installation, therefore the number of errors is equal to the number of communications. Consequently, signaling is red. TP8-96 VIDEO - Installer Manual Bus analysis...
  • Page 100 The Clear key resets all the counters once the installation has been completed. It is recommended to reset the counters when the installation procedure has been completed. Then press: Exit to quit the RS485 serial bus table Bus analysis Installer Manual - TP8-96 VIDEO...
  • Page 101 TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO APPENDIX A APPENDIX A APPENDIX A APPENDIX A APPENDIX A SPECIAL PR SPECIAL PROCEDURES SPECIAL PR OCEDURES OCEDURES OCEDURES SPECIAL PR SPECIAL PR OCEDURES TP8-96 VIDEO - Installer Manual Special procedures...
  • Page 102 Special procedures Installer Manual - TP8-96 VIDEO...
  • Page 103 Warning: On reset of the codes all of the system’s codes return to the default Work. 10:45 setting. This is the same for the length codes: Default installer code 54321 Default master code 12345 Default standard user codes 00000 (unvalid code) Default code length 5 digits TP8-96 VIDEO - Installer Manual Special procedures...
  • Page 104 Default installer code 54321 Default master code 12345 Default standard user codes 00000 (unvalid code) Default code length 5 digits Special procedures Installer Manual - TP8-96 VIDEO...
  • Page 105 PC. Warning: You must be connected locally or remotely to the control panel through the Tecnoalarm software On the screen is viewed: LAST BACKUP Viewing of the date and time of the last backup.
  • Page 106 The date and the time of the last backup are updated once the process has been completed. SERIAL NUMBER OF THE CONTROL PANELl All the Tecnoalarm control panels are identified by their own 10 digits serial number. The serial number is assigned by the manufacturer and it is written on the memory of the control panel and on a label on the CPU board.
  • Page 107 LED are blinking (view the opposite schema) Connect the PC to the control panel using the PROG USB programming interface and check if the red LED is blinking (view the opposite schema) TP8-96 VIDEO - Installer Manual Special procedures...
  • Page 108 Launch the programming software and enter the local programming environment Enter the user archive and select the corresponding system from the user list On the screen is viewed: Click on the opposite icon on the menu bar Special procedures Installer Manual - TP8-96 VIDEO...
  • Page 109 On the screen is viewed: On the screen is viewed the send firmware window. The procedure of firmware upgrade is started and the various phases are displayed. The blue bar indicates that the data transmission is ongoing. TP8-96 VIDEO - Installer Manual Special procedures...
  • Page 110 On the display of the console is viewed the (c) Tecnoalarm new firmware version. Ver 0.7.05 ENG Click on the Exit button in the Firmware window on PC to quit the menu. The process has been completed. Special procedures Installer Manual - TP8-96 VIDEO A-10...
  • Page 111 ELECTRONIC BOARD TP8-96 VIDEO - Installer Manual Special procedures A-11...
  • Page 112 RS485 serial bus Output RS485 serial bus * Default setting. NC (0 Ohm) - NO (superior to 2K Ohm) - BIL (2K Ohm … 4K Ohm) - B24 (2K Ohm … 4K Ohm) Special procedures Installer Manual - TP8-96 VIDEO A-12...
  • Page 113 SYSTEM TP8-96 VIDEO - Installer Manual Special procedures A-13...
  • Page 114 CAMERA CONNECTION Special procedures Installer Manual - TP8-96 VIDEO A-14...
  • Page 115 SUPPLY BY TERMINALS TP8-96 VIDEO - Installer Manual Special procedures A-15...
  • Page 116 SUPPLY BY CABLES + SPLITTER Special procedures Installer Manual - TP8-96 VIDEO A-16...
  • Page 117 TP8-96 VIDEO - Installer Manual Special procedures A-17...
  • Page 118 TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO INST INST ALLER MANU ALLER MANU INST ALLER MANU ALLER MANU AL INST INST ALLER MANU Special procedures Installer Manual - TP8-96 VIDEO A-18...
