Tecnoalarm TP8-96 Installer Manual

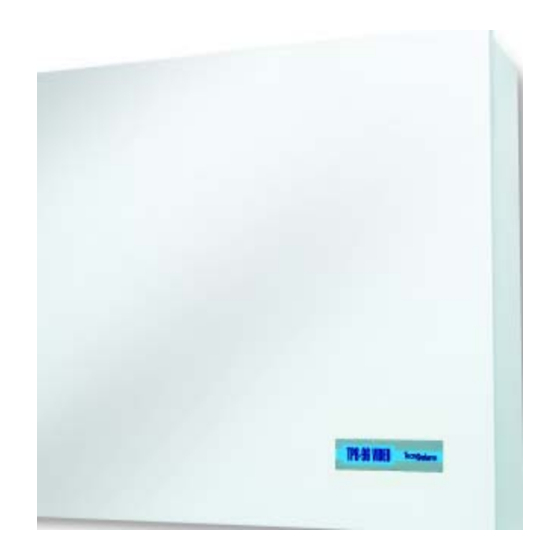

8 to 96 zones expandible control panel with integrated ethernet switch
Hide thumbs Also See for TP8-96:
Table of Contents

Advertisement

Quick Links

See also: User Manual
TP8-96 VIDEO
8 TO 96 ZONES EXPANDIBLE
CONTROL PANEL
WITH INTEGRATED
ETHERNET SWITCH
864 ZONES
CONTROL PANEL
INSTALLER
MANUAL
Release:
Update:
Language:
FW version:
EN 60950
EN 50130-4
EN 50081-1
1.0
July 2011
English
0.7.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP8-96 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tecnoalarm TP8-96

Summary of Contents for Tecnoalarm TP8-96

  • Page 1 TP8-96 VIDEO 8 TO 96 ZONES EXPANDIBLE CONTROL PANEL WITH INTEGRATED ETHERNET SWITCH 864 ZONES CONTROL PANEL EN 60950 EN 50130-4 EN 50081-1 INSTALLER MANUAL Release: Update: July 2011 Language: English FW version: 0.7.05...
  • Page 2 The product features can be subject to change without notice. Unauthorized reproduction or distribution of this manual, or any portion of it, on any device and in any form, is prohibited. The contents of this manual may be subject to change without notice Installer Manual - TP8-96 VIDEO...
  • Page 3 CONFORMITY Hereby, Tecnoalarm srl declares that the present equipment is in compliance with the essential requirements and other relevant provisions of the R&TTE 1999/05/EC directive. The declaration of conformity is available on the website: www.tecnoalarm.com. TP8-96 VIDEO - Installer Manual...
  • Page 4 Installer Manual - TP8-96 VIDEO...

  • Page 5: Table Of Contents

    INDEX INTRODUCTION TO THE TP8-96 VIDEO SYSTEM PROGRAMMING MENU HARDWARE CONFIGURATION - AVAILABLE MODULES PROGRAMMING OF ZONES AND PROGRAMS ZONE CONFIGURATION 2.1.1 Creation of list and parameters 2.1.2 Zone-function association 2-11 2.1.3 Zone-program association 2-13 2.1.4 Consoles 2-14 2.1.5 Keypoints 2-16 2.1.6...
  • Page 6 COMPLETE DELETION OF SYSTEM CONFIGURATION (RESET OF DEFAULT SETTINGS) BACKUP/RESTORE OF THE CONFIGURATION OF THE WIRELESS SECTION FIRMWARE UPGRADE Electronic board A-11 Terminals A-12 System A-13 Camera connection A-14 Supply by terminals A-15 Supply by cables + splitter A-16 Index Installer Manual - TP8-96 VIDEO...

  • Page 7: Programming Menu

    Outputs: Output configuration, polarity programming Bus sirens: Association of the sirens to the programs, after sound blinking, volume setting, siren mode, sound type, functioning mode, enabling/disabling of the antifoam and antidrilling protection Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 8 Ethernet: Configuration of the integrated 8 ports Ethernet switch, IP address, subnet mask, gateway, programming of the communication port for the Local Server Tecnoalarm, Remote Server Tecnoalarm, Tecnoserver Tecnoalarm, Tecno_Out Report codes: Programming of the report codes of all 8 channels for the event...
  • Page 9 • Which program? Program 2 • How? By telephone Operations: Creation of a new operation, operation modification, operation deleted Telephone directory: Association of specific telephone numbers to the operations Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 10 FLOOR PLAN CONFIGURATION This menu allows to create and to manage the floor plans associated to the system. This menu is only enabled if you have the corresponding Tecnoalarm license and the automatic wiring option is disabled. Menu which permits the selection of the useful elements to create the floor plan.
  • Page 11 Send (restore): Transmission of the data relating to the wireless devices which have been saved before in the PC to the control panel. Restore (recover the data) Last backup: Date and time of the last backup Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...

  • Page 12: Serial Bus Analysis

    This function is available only if the control panel is connected. Introduction to the TP8-96 VIDEO system Installer manual - TP8-96 VIDEO...

  • Page 13: Hardware Configuration - Available Modules

    SPEED 4: Input expansions, 4 zone inputs, 1 programmable output 1.1.2 CONSOLE - MAX. 15 LCD300/S Console: LCD display with 2 lines of 16 characters, 32 signaling LED, 16 keys, integrated speaker for voice synthesis Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 14 STAR RS485: Serial bus extension, permits star-shaped connections, 3 RS485 loops, 6 lines. The device has no address. SAEL 2000PRO BUSL: Self-powered outdoor siren with RSC technology. Max. 8 sirens can be connected to the Siren Bus. Introduction to the TP8-96 VIDEO system Installer manual - TP8-96 VIDEO...
  • Page 15 1.1.6 OUTPUT EXTENSIONS - MAX. 16 Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual...
  • Page 16 Introduction to the TP8-96 VIDEO system Installer manual - TP8-96 VIDEO 1-10...
  • Page 17 Introduction to the TP8-96 VIDEO system TP8-96 VIDEO - Installer manual 1-11...
  • Page 18 N.B.: The free (i.e. undefined) outputs are available for advanced programming. Introduction to the TP8-96 VIDEO system Installer manual - TP8-96 VIDEO 1-12...

  • Page 19: Zone Configuration

    CREATION OF ZONE LIST AND PARAMETERS The TP8-96 VIDEO can control max. 96 zones. The zones can be associated to the zone inputs of the installed hardware. The system configuration may provide more inputs than the control panel can control. It is for this raison, that you have to choose the inputs to be controlled from those provided by the modules and draw up a zone list.
  • Page 20 (association of logic zone to physical input of the module) and click on paste. The paste key shows a number which corresponds to the number of the copied zone. It is sufficient to modify the desired parameters (e.g. the description). Programming of zones and programs Installer Manual - TP8-96 VIDEO...
  • Page 21 Program the alarm cycles by clicking on the corresponding item and choose the number of alarm cycles. It is possible to program 1, 4, 8, 15 or infinite alarm cycles prior to self-exclusion. TP8-96 VIDEO - Installer Manual Programming of zones and programs...
  • Page 22 Determines the kind of detector or contact: dual technology, microwave, PIR, contact, inertia, pulse count, barrier, 24H and RDV Type Select the type from the Tecnoalarm devices listed among the specified technology. CONFIGURATION Filter Determines the response time (ms, pulses, inertia, RDV) or sensitivity (from low to high) according to the kind of the detector or contact selected.
  • Page 23 Permits enabling and disabling of the anti-tamper protection. Check the item to enable the function. Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of zones and programs...
  • Page 24 Permits programming of the beam power at four levels (off, low, medium, high). Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving Programming of zones and programs Installer Manual - TP8-96 VIDEO...
  • Page 25 Programming of the LED: • Always off the LED are never lit. • Enabled the LED are lit if the program is armed and the detector has detected an intrusion. TP8-96 VIDEO - Installer Manual Programming of zones and programs...
  • Page 26 Defines if the detector is always active or only active if the system is armed. Tamper Enabling/disabling of the anti-tamper protection. Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving Programming of zones and programs Installer Manual - TP8-96 VIDEO...
  • Page 27 Permits programming of the antimasking (always active or only active if the program is armed). Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of zones and programs...
  • Page 28 Defines the kind of power supply (AC or external DC) independently for TX and RX. Repeat the procedure for every zone to be configured, then press: to confirm and quit Abandon to quit without saving Programming of zones and programs Installer Manual - TP8-96 VIDEO 2-10...

  • Page 29: Zone-Function Association

    The checked zones form a group of common zones, i.e. they are included in several programs. As a consequence, they are enabled for the detection of alarms only if all the programs they are included in are armed. TP8-96 VIDEO - Installer Manual Programming of zones and programs...
  • Page 30 Select the function by clicking on the function key, then check the zones to be associated. The zones may be identified either by the zone number or the description assigned during configuration. Press: to confirm Abandon to quit without saving Programming of zones and programs Installer Manual - TP8-96 VIDEO 2-12...

  • Page 31: Zone-Program Association

    Remember that the display of the console views max. 16 digits. All further characters will be cut off. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of zones and programs 2-13...

  • Page 32: Consoles

    Enables the console for the control of all the programs of the system, even those not associated to the LED. The processes concerning the programs the status of which is not shown by the LED, will be viewed on the display. Programming of zones and programs Installer Manual - TP8-96 VIDEO 2-14...
  • Page 33 The code for deactivation are: None Privileged user code Master code Installer code Press: to confirm and close the zone configuration tables Abandon to undo the configuration of the consoles TP8-96 VIDEO - Installer Manual Programming of zones and programs 2-15...

  • Page 34: Keypoints

    TP SKN pilots only 3 LED. By default the LED are always associated to the first programs of the system. To associate a LED to a determined program, click on the arrow next to the program number and select the program (1 to 8) to be associated. Programming of zones and programs Installer Manual - TP8-96 VIDEO 2-16...

  • Page 35: Options

    The buzzer is active during the time automatic arming is displayed (arming timer). Sound report Permits enabling/disabling of the voice report by the consoles. If enabled, the above operating conditions are accompagnied by a voice message. TP8-96 VIDEO - Installer Manual Programming of zones and programs 2-17...
  • Page 36 Siren 1 and scroll the siren list (1 to 8). Programmable logic output PGM To associate the output to the programs check the item beneath the program number. Programming of zones and programs Installer Manual - TP8-96 VIDEO 2-18...
  • Page 37 Alarm and signaling if program armed Check the corresponding item to enable the option, then press: to confirm and close the zone configuration tables Abandon to undo the system option settings TP8-96 VIDEO - Installer Manual Programming of zones and programs 2-19...

  • Page 38: Outputs

    To select the device click on the arrow next to Control panel [CPU] and scroll the list (control panel and module 1 to 15). The device number corresponds to the address programmed on serial bus. Programming of zones and programs Installer Manual - TP8-96 VIDEO 2-20...
  • Page 39 Modules SPEED ALM8 PLUS SPEED 8 PLUS SPEED 4 PLUS SPEED ALM8 SPEED 8 SPEED 4 SPEED 8 STD Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of zones and programs 2-21...

  • Page 40: Bus Sirens

    The siren is activated if minimum one of the associated programs is in prealarm. The sound type is fixed. Signaling The siren is activated if the associated programs are armed/disarmed. The sound type is fixed. Programming of zones and programs Installer Manual - TP8-96 VIDEO 2-22...
  • Page 41 • Sounding+ Flashing light Sound and et flashing light are activated Check the corresponding item to enable the option, then press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of zones and programs 2-23...
  • Page 42 Programming of zones and programs Installer Manual - TP8-96 VIDEO 2-24...

  • Page 43: Telephone Parameter Configuration

    The control panel is able to transmit alarm signaling or other data using either digital protocols or pre-recorded vocal messages (composed of words of the vocabulary). It can transmit and receive alarm signaling using the digital Tecnoalarm protocol or the most frequently used digital protocols. Programming upload and download is possible using the Tecnoalarm protocol only.
  • Page 44 The telephone section of the control panel can be set so as to block the specified channels upon reception of the blocking command (* on the telephone dial). According to programming, the communicator block affects either the vocal, digital or Tecnoalarm channels or all three and this either singularly or altogether:...
  • Page 45 • All channels Upon reception of the blocking command the active call is interrupted and the alarm call cycles of the active digital channel as well as all the other digital non-Tecnoalarm channels programmed for the event are blocked. WARNING The digital non-Tecnoalarm protocols are to devide in single type and multiple type protocols.

  • Page 46: Gsm Module

    The SMS sent by the control panel are automatically composed by the system. To distinguish the origin of the messages (sender), it is possible to program an SMS heading (max. 40 digits without accents). Programming of telephone section Installer Manual - TP8-96 VIDEO...
  • Page 47 Permits enabling/disabling of the GRPS channel functioning of the integrated GSM module. Port Access to the Tecnoalarm Tecnoserver. The default value is 10001. Access point Defines the access point to the network. The GPRS connection is not like a telephone line, but similar to the Ehernet connection.

  • Page 48: Tecnocell

    (3 to 15 rings). The communicator is programmed by default to answer after 3 rings. Emergency SMS WARNING Enabling of the emergency SMS message, disables the voice emergency call. Programming of telephone section Installer Manual - TP8-96 VIDEO...
  • Page 49 Enabling of guided menu (terminal S) The TP8-96 VIDEO control panel composes the voice messages itself with the help of the onboard vocabulary and transmits them to the telephone number of the receiver through the S cable (loudspeaker terminal of the CPU board) to the GSM telephone communicator.

  • Page 50: Ethernet

    LOCAL SERVER TECNOALARM Check the item to enable/disable the function. Port TCP/IP communication port of the local Tecnoalarm server channel. Communication port for local programming by PC. Local connection between PC and control panel. White list List of 3 acceptable communication addresses. If the white list contains addresses, the communication is accepted from these addresses.
  • Page 51 If no address has been programmed (i.e. all 3 addresses are 0-0-0-0), the communication is accepted from any other address. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of telephone section...
  • Page 52 The report code configuration table permits both the events-channel association and programming to the report codes. The report codes identify the alarm type or the event transmitted by a digital call by a non-Tecnoalarm device as a monitoring station of other costumers.

  • Page 53: Opening Message - Vocabulary

    The opening message is a voice message that is reproduced during every outgoing telephone call. It can be recorded by the user in different ways: using the Tecnoalarm programming and monitoring software, a special sound manager resident on your PC, loading from a prerecorded WAV file or by telephone.
  • Page 54 The selection and modification of the voice messages of the system requires a specific software utility, TECNOMSG, and is subject to license. Press the Vocabulary button in the lower part of the window. The English vocabulary can be found in the following directory C:\Program files\Tecnoalarm\Centro\WAV2\ENG Select the file Msg_cnf.tcn. Press:...

  • Page 55: Remote Controls

    The remote controls behave has a toggle if no activaion time has been programmed: <commutation><commutation> Repeat the operations for every remote control to be configured (max. 8). Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of telephone section 3-13...

  • Page 56: Explanatory Notes

    The IP address can be formed by 4 or 5 numerical items. The last item can be finished with the letter G. • The first 4 item indicate the IP address of the Tecnoalarm monitoring station with which communicate. •...

  • Page 57: Protocols

    Ethernet switch of the control panel In the tables, the protocols are divided by categories (digital, Tecnoalarm, vocal) and, for each of them the name, the number code and the classification (primary, backup, secondary, Ethernet) as well as the transmission mode are indicated.
  • Page 58 Programming of telephone section Installer Manual - TP8-96 VIDEO 3-16...

  • Page 59: Communicator Block

    The alarm call cycle can be interrupted. The recipients of the calls, users or automatic alarm reception devices, can block the channel with specific commands. The communicator block distinguishes: vocals, digitals and Tecnoalarm protocols. It is selective for each category of protocols. It can act on the single or on all of the channels associated to the event.

  • Page 60: Call-Back

    Call-back mode Standard call-back The monitoring station calls the control panel which recognizes that the call is arrived from a Tecnoalarm monitoring station and accepts the communication. During the communication the ID code and the control panel model are controled. The control panel closes the communication and calls the monitoring station according to the programmed parameters.
  • Page 61 It is possible to initiate a call-back locally through the LCD300/S console. Select the menus Telephone, then Call- back from the installer menu. The control panel immediatly calls the monitoring station according to the programmed parameters. TP8-96 VIDEO - Installer Manual Programming of telephone section 3-19...

  • Page 62: Ethernet

    IP address of the control panel and the communication port of the Local Server Tecnoalarm. Communication port of the Remote Server Tecnoalarm. The IP address should only be filled i a static IP address is available, otherwise leave the item blank.

  • Page 63: Remote Control Management By Sms

    If either the password or the telephone number are incorrect, there will be no answer. If the remote control number or its name are incorrect, the control panel returns an error message. TP8-96 VIDEO - Installer Manual Programming of telephone section...
  • Page 64 Programming of telephone section Installer Manual - TP8-96 VIDEO 3-22...

  • Page 65: Time Settings

    The tables of the configuration time permit to program the following parameters: Time parameters Timers Access periods Customization of the calendar (biennal) 4.1 TIME SETTINGS SELECTION OF THE PROGRAM To program the time parameters of all the programs, select all programs. TP8-96 VIDEO - Installer Manual Programming of time parameters...
  • Page 66 This parameter indicates the delay of release of supervision alarm, i.e. the period of time during which the communication with the wireless devices must be missing before a supervision alarm is released. Press: to confirm and quit Abandon to quit without saving Programming of time parameters Installer Manual - TP8-96 VIDEO...

  • Page 67: Timers

    Qualified arming (avoid arming in the presence of low battery, power failure, tamper, supervision, fault and antimasking alarm). TP8-96 VIDEO - Installer Manual Programming of time parameters...
  • Page 68 (i.e. minutes, hours or days). Telephone interface Select the channel (A...H). Ensure that the channel in question is prgrammed with the TCP/IP Tecnoalarm data protocol (number code 192). Store in the event log Permits to enable/disable the test call event in the archive of the control panel Check the item to enable the function.

  • Page 69: Access Periods

    Every holiday-eve Every holiday Every sunday Every saturday Deactivation time To program the deactivation time of the access period, select the item next to the frequency and enter the time (hh:mm). TP8-96 VIDEO - Installer Manual Programming of time parameters...
  • Page 70 See § 4.5 for explanatory notes. Press: to confirm and quit Abandon to quit without saving Programming of time parameters Installer Manual - TP8-96 VIDEO...

  • Page 71: Customization Of The Calendar

    A crossed sun will be shown next to the date. Subsequently select Winter time and click once on the day of end of summer time. A sun will be shown next to the date. TP8-96 VIDEO - Installer Manual Programming of time parameters...
  • Page 72 1 will be viewed on the console). Clicking the 4th time, the selected message will be remove. Repeat the procedure for the second year (Customization 2nd year). Press: to confirm and quit Abandon to quit without saving Programming of time parameters Installer Manual - TP8-96 VIDEO...

  • Page 73: Explanatory Notes

    EXPLANATORY NOTES The following schemes evidence the steps of configuration of the timers, test call, test call server and access periods. TIMERS TEST CALL TP8-96 VIDEO - Installer Manual Programming of time parameters...
  • Page 74 TEST CALL SERVER ACCESS PERIODS Programming of time parameters Installer Manual - TP8-96 VIDEO 4-10...

  • Page 75: Programming Of The Codes

    Programming of the attributes of the codes SELECTION OF THE CODE Select the item next to Code and scroll down the list then, click on the name of the code to be programmed. TP8-96 VIDEO - Installer Manual Programming of access codes and keys...
  • Page 76 If checked, the user will not be entitled to arm all the associated programs directly by pressing the hash key (#) but will have to arm them one after the other. Programming of access codes and keys Installer Manual - TP8-96 VIDEO...
  • Page 77 If checked, the user will not be entitled to arm or disarm the associated programs at distance by remote controls. Repeat the procedure for all the user codes (1 to 200). See § 5.4 for explanatory notes. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of access codes and keys...

  • Page 78: Programming Of The Keys

    In addition to the key-program association it is indispensable to associate the programs to the key reader, otherwise the introduction of the key will be ineffective. Programming of access codes and keys Installer Manual - TP8-96 VIDEO...
  • Page 79 If the item is checked, the key has been recognized. Repeat the procedure for all the user codes (1 to 100). See § 5.4 for explanatory notes. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of access codes and keys...

  • Page 80: Programming Of The Wireless Keys

    Programming of access codes and keys Installer Manual - TP8-96 VIDEO...
  • Page 81 (1 impulse). Repeat the procedure for all the wireless keys (1 to 100). See § 5.4 for explanatory notes. Press: to confirm and quit Abandon to quit without saving TP8-96 VIDEO - Installer Manual Programming of access codes and keys...

  • Page 82: Explanatory Notes

    The below example illustrates disarming with manual communicator block (see programming of the attributes page 5-2). DISARMING IN CASE OF ALARM WITH AUTOMATIC COMMUNICATOR BLOCK The below example illustrates disarming with automatic communicator block (see programming of the attributes page 5-2, 5-5 and 5-7). Programming of access codes and keys Installer Manual - TP8-96 VIDEO...
  • Page 83 The below example multiple (see programming of the attributes page 5-3) and direct arming. DIRECT DISARMING The below example illustrates direct disarming (see programming of the attributes page 5-3). TP8-96 VIDEO - Installer Manual Programming of access codes and keys...
  • Page 84 5-2) ARMING WITH EXCLUSION OF OPEN ZONES The below examples illustrate arming with exclusion of the open zones (see programming of the attributes page 5-3, 5-5 and 5-7). Programming of access codes and keys Installer Manual - TP8-96 VIDEO 5-10...
  • Page 85 5-5 and 5-7). If the confirmation of disarming attribute is enabled, disarming by the transponder or wireless key in question must be confirmed by a valid code within a determined period of time, otherwise a silent hold- up alarm is released. TP8-96 VIDEO - Installer Manual Programming of access codes and keys 5-11...
  • Page 86 Programming of access codes and keys Installer Manual - TP8-96 VIDEO 5-12...

  • Page 87: Programming Of The Wireless Sirens

    Siren delay (mm:ss) Determines the interval between the detection of an alarm and the activation of the siren. Flashing time (mm:ss) Determines the blinking time in case of alarm or technical alarm. TP8-96 VIDEO - Installer Manual Programming of wireless devices...
  • Page 88 Flashing light (the flashing light is activated for the time programmed) Sounding + flashing light (both the horn and the flashing light are activated for the time programmed) Press: to confirm and quit Abandon to quit without saving Programming of wireless devices Installer Manual - TP8-96 VIDEO...

  • Page 89: Programming Of The Wireless Consoles

    (#YES)). Quick disarming Permits disarming of the associated programs with quick disarming command (i.e. *(star) key followed by the program number and again the star key (*NO). TP8-96 VIDEO - Installer Manual Programming of wireless devices...
  • Page 90 Enables the quick menu on the console. It permits activation/deactivation of the remote controls without code. Supervision disabled Disables the supervision/test transmission of the console. Repeat the operations for all the wireless consoles (1 to 4). Press: to confirm and quit Abandon to quit without saving Programming of wireless devices Installer Manual - TP8-96 VIDEO...

  • Page 91: Addition Or Deletion Of Modules

    ADDITION OR DELETION OF MODULES Enter hardware configuration by clicking on the opposite icon. ADDITION OF MODULES Select Add in the hardware configuration window and select the module to be connected, e.g. SPEED 8 STD. TP8-96 VIDEO - Installer Manual Hardware configuration...
  • Page 92 Click on OK to confirm and quit hardware configuration. Click on Abort to undo the changes to the hardware configuration viewed. If you confirm the deletion of the module, it is removed from the system configuration viewed. Hardware configuration Installer Manual - TP8-96 VIDEO...
  • Page 93 Horizontal scrollbar Permits to visualize or to hide the horizontal scrollbar. Vertical scrollbar Permits to visualize or to hide the vertical scrollbar. Click on the option to enable or disable it. TP8-96 VIDEO - Installer Manual Hardware configuration...
  • Page 94 Hardware configuration Installer Manual - TP8-96 VIDEO...
  • Page 95 By contrast, the peripheral with the address 01 is not present on the installation so the number of errors is equal to the number of communications. As a result, the signal is red. TP8-96 VIDEO - Installer Manual Bus analysis...
  • Page 96 The counter Clear key causes the reset of all the counters of all the groups. It is recommended to reset the counters when the installation procedure has been completed. Then press: Exit to quit the RS485 serial bus table Bus analysis Installer Manual - TP8-96 VIDEO...
  • Page 97 TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO APPENDIX APPENDIX APPENDIX APPENDIX APPENDIX SPECIAL PR SPECIAL PROCEDURES SPECIAL PR OCEDURES OCEDURES OCEDURES SPECIAL PR SPECIAL PR OCEDURES TP8-96 VIDEO - Installer Manual Special procedures...
  • Page 98 Special procedures Installer Manual - TP8-96 VIDEO...

  • Page 99: A.1 Reset Of The Default Codes

    The reset of the default codes will affect all the codes of the system as well as the code length: Default installer code 54321 Default master code 12345 Default standard user codes 00000 (unvalid code) Default code length 5 digits TP8-96 VIDEO - Installer Manual Special procedures...

  • Page 100: A.2 Complete Deletion Of System Configuration (Reset Of Default Settings)

    (i.e. no telephone number, no zone configuration, no function programmed) and the default codes as well as the default code length: Default installer code 54321 Default master code 12345 Default standard user codes 00000 (unvalid code) Default code length 5 digits Special procedures Installer Manual - TP8-96 VIDEO...

  • Page 101: A.3 Backup/Restore Of The Configuration Of The Wireless Section

    Launch the programming software and enter the local programming environment Enter the user archive and select the corresponding system from the user list On the screen is viewed: Click on the opposite icon on the menu bar TP8-96 VIDEO - Installer Manual Special procedures...
  • Page 102 In case of firmware upgrade or replacement of the CPU board, however, there will be no relevant data to overwrite. Pressing Yes, the process is completed and on the screen is viewed the opposite message. Commands available to confirm and quit Special procedures Installer Manual - TP8-96 VIDEO...

  • Page 103: A.4 Firmware Upgrade

    A.4 FIRMWARE UPGRADE WARNING The procedure of firmware upgrade is to be executed at Tecnoalarm technicians' explicite request. The incorrect execution of the procedure may provoke the FAILURE of the control panel. The firmware upgrade is included in the CD containing the software upgrade supplied by TECNOALARM.
  • Page 104 Launch the programming software and enter the local programming environment Enter the user archive and select the corresponding system from the user list On the screen is viewed: Click on the opposite icon on the menu bar Special procedures Installer Manual - TP8-96 VIDEO...
  • Page 105 The yellow and the green LED start blinking qiuckly. The procedure of firmware upgrade is started and the various phases are displayed. The blue bar indicates that the data transmission is ongoing. TP8-96 VIDEO - Installer Manual Special procedures...
  • Page 106 On the display of the console is viewed the new firmware version. Click on the Exit button in the Firmware window on PC to quit the menu. The process has been completed. Special procedures Installer Manual - TP8-96 VIDEO A-10...

  • Page 107: Electronic Board

    ELECTRONIC BOARD TP8-96 VIDEO - Installer Manual Special procedures A-11...

  • Page 108: Terminals

    Voice signal towards loudspeaker of the LCD300/S consoles Loudspeaker signal Output Siren bus 14,4V DC Power supply RS485 serial bus Output GND (earth) Power supply RS485 serial bus Output RS485 serial bus RS485 serial bus Input Special procedures Installer Manual - TP8-96 VIDEO A-12...

  • Page 109: System

    SYSTEM TP8-96 VIDEO - Installer Manual Special procedures A-13...

  • Page 110: Camera Connection

    CAMERA CONNECTION Special procedures Installer Manual - TP8-96 VIDEO A-14...

  • Page 111: Supply By Terminals

    SUPPLY BY TERMINALS TP8-96 VIDEO - Installer Manual Special procedures A-15...

  • Page 112: Supply By Cables + Splitter

    SUPPLY BY CABLES + SPLITTER Special procedures Installer Manual - TP8-96 VIDEO A-16...
  • Page 113 TP8-96 VIDEO - Installer Manual Special procedures A-17...
  • Page 114 TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO TP8-96 VIDEO INST INST ALLER MANU ALLER MANU INST ALLER MANU ALLER MANU AL INST INST ALLER MANU Special procedures Installer Manual - TP8-96 VIDEO A-18...
