OMAS CX MATIC Installation & Maintenance

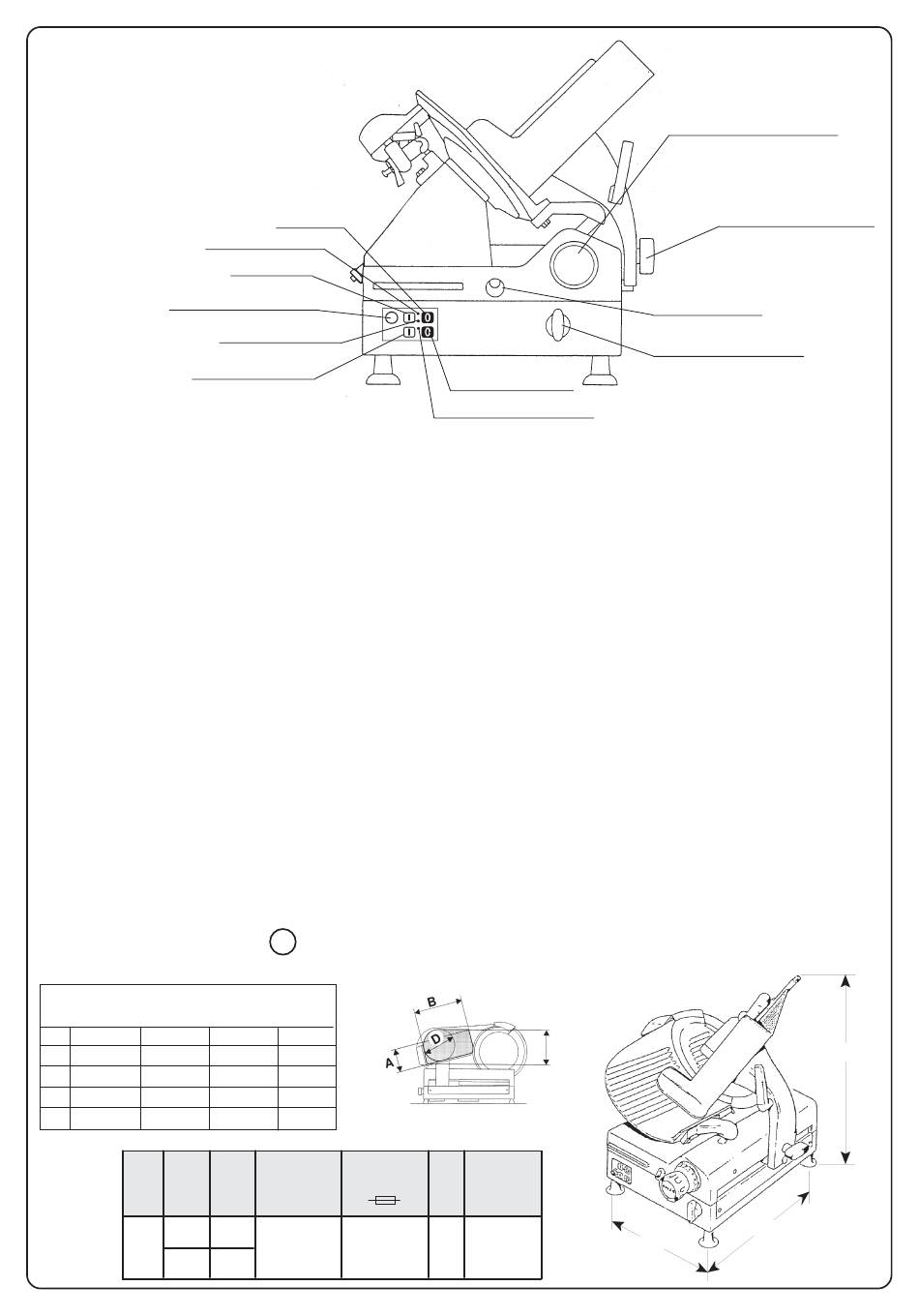

DEFINITIONS
REMARK: Stop the carriage at the
end of the stroke nearest the
oprator and pour the lubricant into
the special oiler
Power Supply (led)
Product holder stroke
adjustement
Start Product holder
MANUAL OPERATION
Rotate the AUTO/MANUAL selector carriage release handle by 180
Push the on switch/blade start pushbutton
Adjust the thickness you want by turning the slice thickness control knob
Actuate the carriage by your hand
Push the off switch/blade stop pushbutton
AUTOMATIC OPERATION
Rotate the AUTO/MANUAL selector carriage release handle by 180
Push the on switch/blade start pushbutton
Adjust the thickness you want by turning the slice thickness control knob
Push the product holder start pushbutton
Adjust the length of the stroke by turning the product holder stroke adjustment
Push the product holder stop pushbutton to end carriage movement
Push the off switch bIade stop pushbutton
LUBRICATION
The rod on which the product holder slides, which is underneath the slicer, should be lubricated
weekly with several drops of oil. Stop the carriage at the end of the stroke nearest the operator position
and pour the Iubricant into the special oiler. DO NOT use vegetable oil. Occasionally, the slice thickness
plate slide rod should be coated Iightly with lubricant. Turn the slice thickness control fully counterclockwise
when Iubricating this slide rod and then turn it fully clockwise when finished. DO NOT lubricate the rod on
which the last slice device slides. It must be kept clean but not lubricated. The motor has sealed
bearings and requires no Iubrication maintenance.
WEAR ADJUSTMENT
After several, years of operation and many sharpenings of the blade it may become necessary to have
the slice thickness plate 14 adjusted closer to the blade.
TECHNICAL DATA
CX Matic
Slicing Capacity mm
Ø 300 Ø 330
A 150 165
B 260 260
C 250 270
D 210 235
Motors
W V
electrical
data
240
550
120
Stop Balde
Start Balde
Start Balde (led)
Ø 350 Ø 370
185 190
260 260
290 305
240 260
Hz Phase N° Service
50
1~ S1
60
Stop Product holder
Start Product holder (led)
0
0
C
A IP
Degree of
Protection
7 33
4/4
Slice thickness control knob
Product holder fixing knob
Carriage bar oiler
Carriage release handle
NB: For the manual funtioning of the carriage
rotate the handle clockwise by 180°
,clockwise
, counterclockwise
580
430
620
