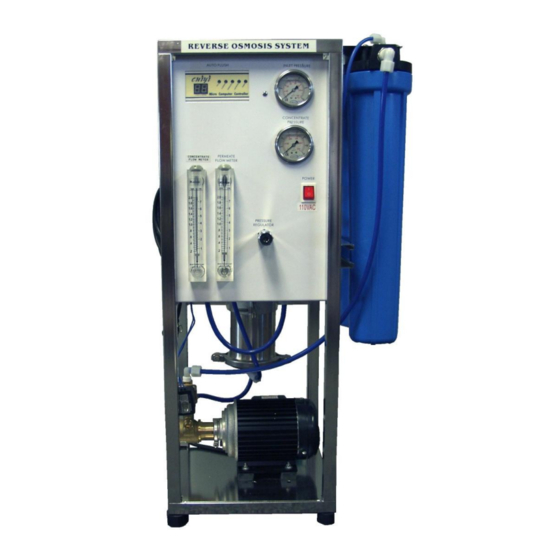

- Page 1 INSTALLATION MANUAL SRO-1000 SRO-2000 SRO-4000 SRO-1000 pictured 12630 US 33 N. Churubusco, IN 46723 Ph. (260)693-1972 Fax (260)693-0602 www.sterlingwatertreatment.com SRO-1000 through SRO-4000 (170203).docx...
- Page 2 PRE-INSTALLATION Thank you for choosing the Sterling SRO Series commercial reverse osmosis system. This reverse osmosis system includes a cartridge type sediment filter and carbon filter. Additional treatment (iron filter, water softener, etc.) may also be required prior to the reverse osmosis system. Please review the recommended water quality limitations.
- Page 3 INSTALLATION (continued) 5. Connect PERMEATE port of RO unit to storage tank (not provided) and desired point-of-use. 6. Connect either pressure switch (pressurized storage) or float switch (atmospheric storage) from storage tank to wiring labeled LEVEL CONTROL LOOPS. CAUTUON: The level control wiring is DRY CONTACT only. DO NOT SEND ELECTRICAL POWER TO THE CONTROLLER THROUGH THIS WIRING.
- Page 4 CONTROLLER Indicator Light Description FULL Light indicates when product water storage tank is full FLUSHING Light indicates the 60 second flushing cycle before every production cycle PRODUCING Light indicates the reverse osmosis unit is producing water Light indicates adequate feed water pressure LOW WATER NO Light indicates low feed water pressure POWER...
- Page 5 Schematic...
- Page 6 REVERSE OSMOSIS WATER SYSTEM LIMITED WARRANTY What Does This Warranty Cover? This warranty covers any defects in materials and workmanship of the R.O. Drinking Water System when installed and operated within recommended parameters, with the exceptions stated below. How Long Does The Coverage Last? The manufacturer will warrant its R.O.
