EN

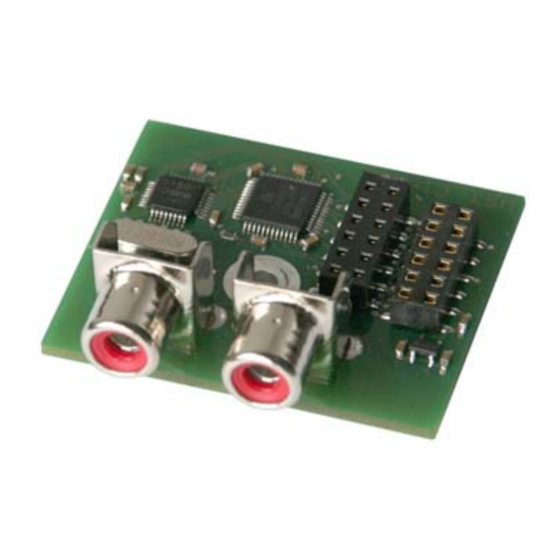

Camera Interface
for WS1 Color and WS1000 Style
from software version 1.492
Technical Specifications and Installation Instructions
Item number 60133
Elsner Elektronik GmbH Control and Automation Engineering
Sohlengrund 16
D - 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de
Germany
Fax
+49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de
Advertisement
Table of Contents
Related Manuals for elsner elektronik 60133
Summary of Contents for elsner elektronik 60133
- Page 1 WS1 Color and WS1000 Style from software version 1.492 Technical Specifications and Installation Instructions Item number 60133 Elsner Elektronik GmbH Control and Automation Engineering Sohlengrund 16 D - 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de Germany...
- Page 2 Description Description The Camera Interface for WS1 Color and WS1000 Style allows video cameras to be connected to the control unit. The camera images are shown on the screen. Functions: • For 2 video cameras • Display of the images on the control unit screen. Camera image can be switched on and off via buttons on the screen or via signal in the multifunctional input (configuration as binary input) 1.1.
- Page 3 Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions.
- Page 4 Installation and Commissioning WS1000 Style: Fig. 2 Camera input 1 and 2 Pins/connector plugs for the camera Fastening screw interface 2.2.2. Installation and connection The Camera Interface is screwed into the screen board of the control unit. First re- move the top nut of the fastening screw. Put the interface on the 2 blocks with the 12 pins and press till firm.
- Page 5 Hinged ferrites must be placed on the camera cables. We recommend ferrite sleeves with plastic housing, e.g. from Würth (type 742 711 12). If you order the cameras with Elsner Elektronik, the right hinged ferrites are included. Two ferrites must be fixed per one camera cable, if possible directly behind the plug used for connecting the camera on the control: Fig.
