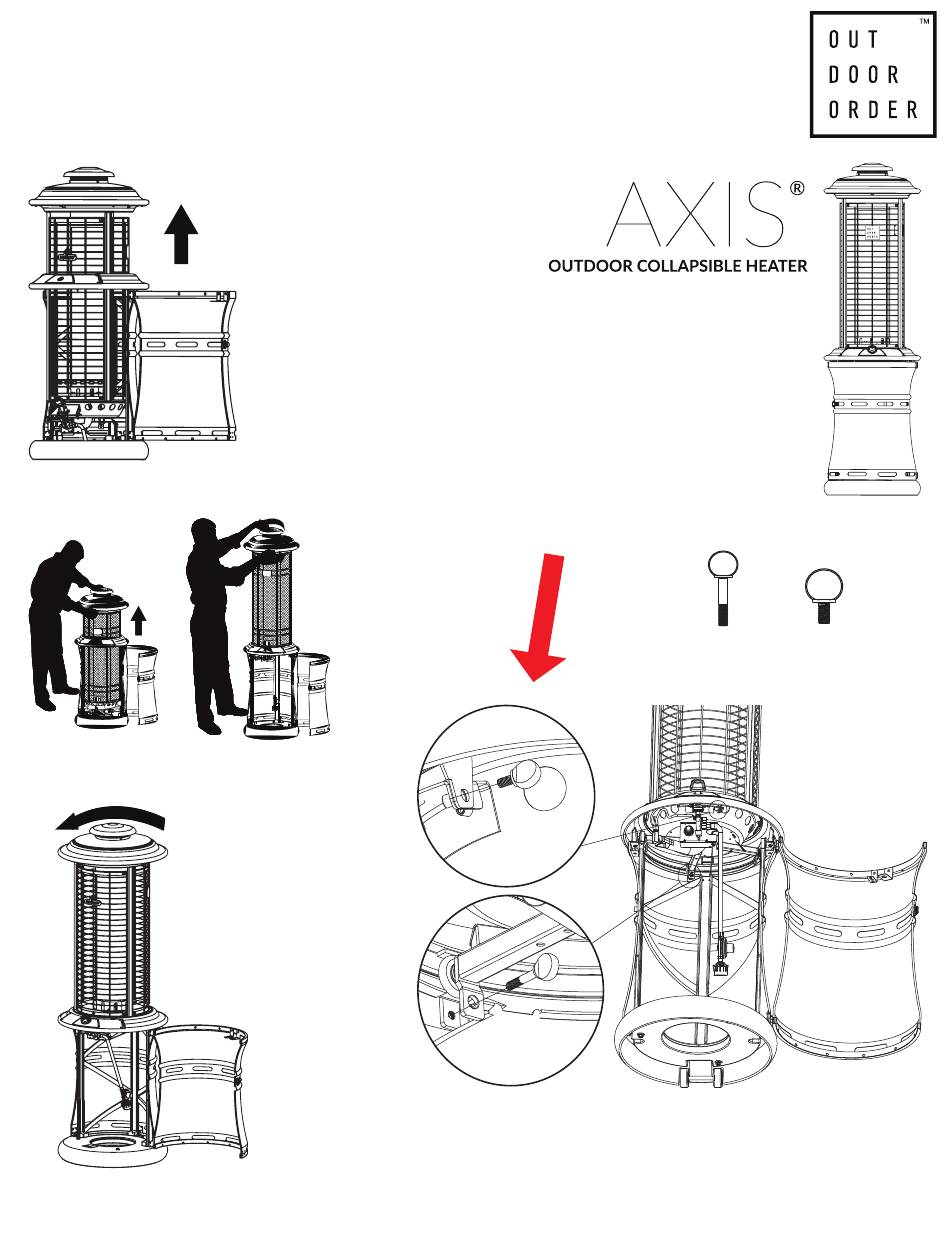

ASSEMBLY TIPS & TRICKS
Step 2
After heat exchange
tube is fully
extended, rotate
counter-clockwise
un�l it stops.
OUTDOOR ORDER™ LLC. "bringing order to the outdoors" | TORRANCE, CA | 888.806.8836 | SALES@OUTDOORORDER.COM | WWW.OUTDOORORDER.COM
Step 1
To assemble
unit par�ally
open gas
chamber door.
Carefully li�
heat reflector
un�l en�re heat
exchange tube
is exposed.
Step 3
Insert M6x35 thumb screw into hole
M6x12thumb screw into hole
Don't Forget
the Thumb
Screws!
B
A
M6x35
M6x12
Thumb
Thumb
Screw
Screw
A
B
. Lock the screws.
, and
Advertisement
Related Manuals for Outdoor Order AXIS
Summary of Contents for Outdoor Order AXIS
- Page 1 Insert M6x35 thumb screw into hole , and M6x12thumb screw into hole . Lock the screws. OUTDOOR ORDER™ LLC. “bringing order to the outdoors” | TORRANCE, CA | 888.806.8836 | SALES@OUTDOORORDER.COM | WWW.OUTDOORORDER.COM...
- Page 2 Remove igniter bu�on by turning counter- clockwise. Install " " size ba�ery with posi�ve terminal up as indicated in diagram. Replace igniter bu�on. OUTDOOR ORDER™ LLC. “bringing order to the outdoors” | TORRANCE, CA | 888.806.8836 | SALES@OUTDOORORDER.COM | WWW.OUTDOORORDER.COM...
- Page 3 IGNITE - TRY CHANGING THE (2) "D" SIZE BATTERIES AND PUSH THE RESET BUTTON! Install/replace (2) 1.5v "D" size ba�eries into compartment. Re-secure compartment. OUTDOOR ORDER™ LLC. “bringing order to the outdoors” | TORRANCE, CA | 888.806.8836 | SALES@OUTDOORORDER.COM | WWW.OUTDOORORDER.COM...
