DATE: 04-05-2016

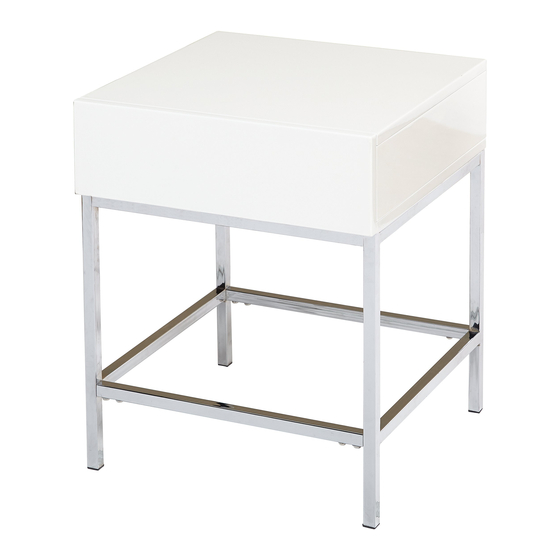

Lewis End Table
ASSEMBLY
REQUIREMENTS
Thank you for purchasing our product!
Please refer and use this assembly instruction to assemble the product.
Contact our customer service department in case there are any missing or damage parts or hardware.
Replacement parts are normally shipped within 2 or 3 days.
Email: replacementparts@buylateral.com
Within 30 days from delivery date
ASSEMBLY PREPARATION
1. Remove all packaging materials, staples and packing straps from the carton.
2. Refer to Parts List and Hardware List and ensure they are complete before you
3. Place all wooden parts on a clean, flat and soft surface (e.g. carpet or rug) to prevent parts from getting scratched.
SAFETY PRECAUTION:
1. KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN.
2. DISPOSE PLASTIC PACKAGING MATERIAL IMMEDIATELY TO AVOID ANY RISK OF SUFFOCATION TO
CHILDREN AND ANIMALS.
TIPS FOR ASSEMBLY:
1. Allow ample room for assembly and in close proximity to where product will be placed.
2. Assemble the product on a surface that does not scratch or damage the exterior gloss and finish of the furniture.
3. Please check all of the parts and quantities are included before assembly. Contact customer service for missing parts.
4. Identify all of the parts, hardware and quantities required for each step.
5. During assembly, do not over-tighten any fittings as this may cause damage.
6. DO NOT USE POWER TOOLS TO ASSEMBLE THIS PRODUCT.
7. Always place the product on a flat surface.
8. Do not sit or stand on the partially assembled product; only use the product for which it is intended.
CARE AND MAINTENANCE
• Use a slightly damp cloth to clean the product. Do not use bleach or abrasive cleaning material.
• Check all the fittings periodically and re-tighten as necessary. Do not use the product if any of the parts is
damaged or broken.
Never allow any kind of liquid to remain on your furniture. Absorption can cause wood to warp or delaminate.
• Do not place hot items (e.g. hot drinks) directly onto the wood surface.
• Do not drag and/or pull the furniture.
This product is for indoor and household-use only - not for commercial use.
1/11
ASSEMBLY INSTRUCTIONS
2 -Person Assembly
2 HOURS
Assembly Time
(Approximate)
ITEM# 72401WHT
Tools Required (Not Provided):
Phillips Screwdriver
Flat Head Screwdriver
We appreciate your business!
start
assembling.
Made In China

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lewis End Table 72401WHT and is the answer not in the manual?

Questions and answers

Summary of Contents for TMS Lewis End Table 72401WHT

  • Page 1 DATE: 04-05-2016 ASSEMBLY INSTRUCTIONS Lewis End Table ITEM# 72401WHT 2 -Person Assembly Tools Required (Not Provided): ASSEMBLY 2 HOURS Assembly Time Phillips Screwdriver REQUIREMENTS (Approximate) Flat Head Screwdriver Thank you for purchasing our product! Please refer and use this assembly instruction to assemble the product. Contact our customer service department in case there are any missing or damage parts or hardware.
  • Page 2: Item Description

    ASSEMBLY INSTRUCTIONS Lewis End Table/End Table ITEM# 72401WHTE Hardware List ITEM PART PART DESCRIPTION ITEM DESCRIPTION Cam-lock 18PCS Allen Wrench � 14*11mm Cam-bolt 18PCS 8PCS Screw � 4*12 mm 5*40 mm Flat Washer � 1 sets Metal Glide 20PCS Allen-Head Bolt 20PCS 4PCS Screw...
  • Page 3 CAM-BOLT and CAM-LOCK INSTRUCTIONS CAM-LOCK Align the arrow on the Cam-lock to the Cam- bolt head and insert the Cam-lock. � - - x @® Use a flat screwdriver to turn the Cam-Lock clockwise one half a turn so it locks onto the head of the Cam-lock.
  • Page 4 Parts & Assembly Overview 4/11...
  • Page 5: Parts List

    Parts List ITEM DESCRIPTION PART QTY ITEM DESCRIPTION PART c:::::J 1 PC Drawer Back Top Panel 1 PC Panel � Left Side Panel 1 PC 1 PC Drawer Front Panel � 1 PC 1 PC Drawer Bottom Panel Back Panel �...
  • Page 6 STEP 1 G � 2sets 1. Distinguish Metal Glide (G) between Part A and Part B. PART A Push Lever downwards to slide out Part A STEP2 4pcs � � 4pcs DO NOT USE POWER TOOLS 1. Attach Cam-bolt (B) to Drawer Front Panel (10). (Refer to page on Cam-bolt and Cam-lock Instructions) 2.
  • Page 7 STEP3 4 pcs 1. Insert Drawer Bottom Panel (11 ) by fitting (11) into the groove on Drawer Front & Side Panels. 2. Attach Dr awer Back Panel (9) to Drawer Side Panel (12 & 13) by using Screw (H). (Check that Bottom Panel (11) fits into the groove on Back Panel before fastening) STEP4 8 pcs...
  • Page 8 STEPS 4 pcs � 2pcs METAL DO NOT USE POWER TOOLS GLIDE PARTS 1. Install Part B of Metal Glide (G) to pilot holes on Left Side Panel (2) and Right Side Panel (4) by using Screw (F) . 2. Screw in Cam-bolt (B) to Left Side Panel (2) and Right Side Panel (4) (Refer to page on Cam-bolt and Cam- lock Instructions.) STEP6 2pcs...
  • Page 9 STEP? � 6pcs � 6pcs DO NOT USE POWER TOOLS Refer to page on Cam-bolt and Cam-lock Instructions. 1. Attach Cam-bolt (B) to all of the pre-drilled holes on Bottom Base (5). 2. Align and fit Panel (2), (3) & (4) from Step 6 to Cam-bolts on Bottom Panel (5) as shown. 3.
  • Page 10 STEP9 16 pcs 16 pcs � DONOTUSEPOWERTOOL �� 1. Place one Leg (6) flat down as shown. Attach Connect Base (7) & Connect Base (8) to (6) by using Allen- Head Bolt (D) and Lock Washer (C). Tighten (D) with Allen Wrench (E). Do not tighten completely until all of the Bolts are in place.
  • Page 11 STEP 11 1. Insert drawers as shown. Assembly of the desk is completed. 11/11...
