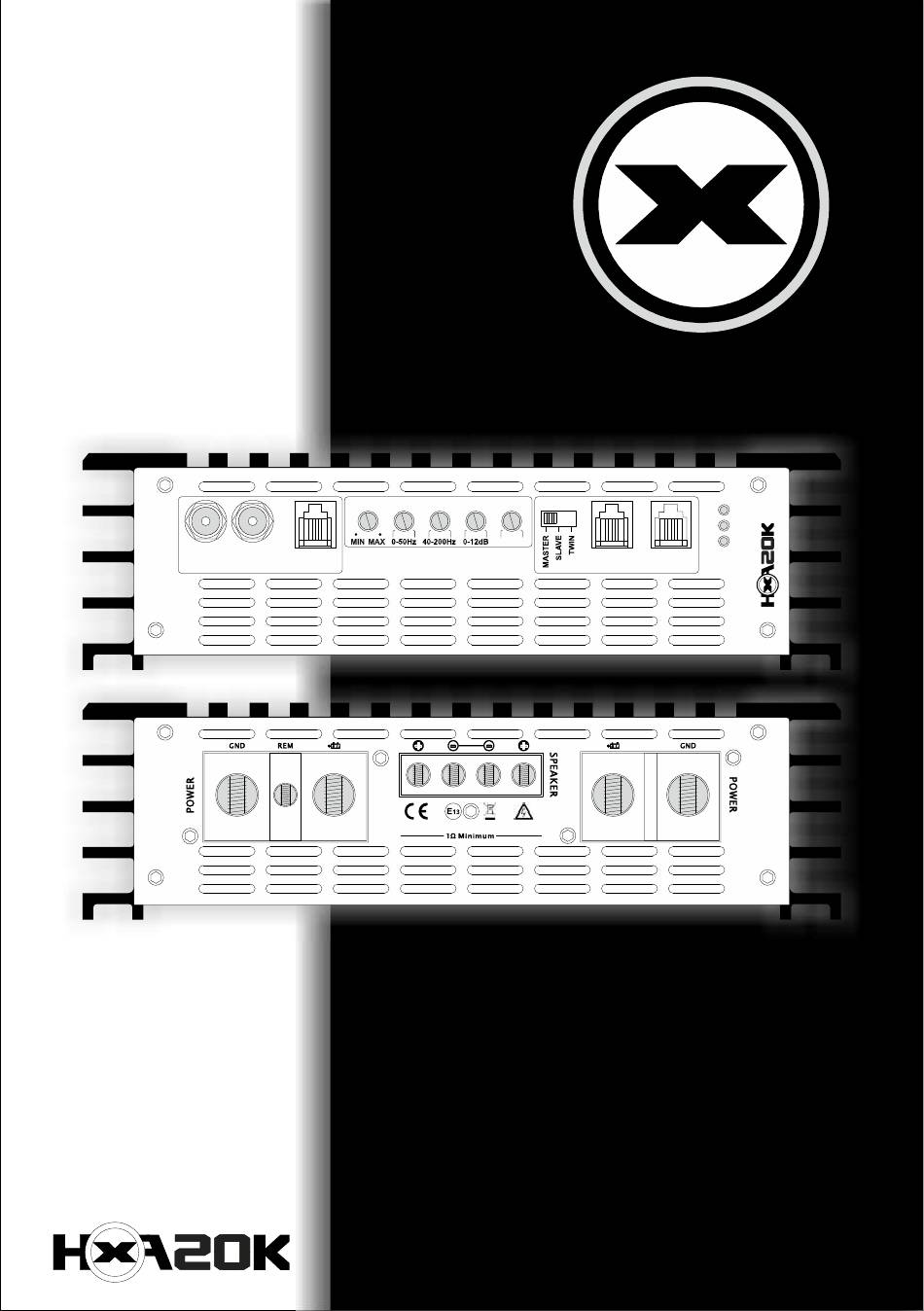

- Page 1 ...is all you need GAIN BOOST PHASE MODE CLIPPING ALARM 0-180° POWER LEFT RIGHT REMOTE MASTER & SLAVE & LOW LEVEL INPUT TWIN OUT TWIN IN 20000 WATT x 1CH COMPETITION AMPLIFIER MONO COMPETITION AMPLIFIER...
- Page 2 EXCURSION CONGRATULATIONS ! CONGRATULATIONS ! You now own an EXCURSION HXA True Mono Compe on Amplifier, the product of an uncompromising design and german engineering philosophy. A product made from Car Audio fana cs who truely believe in the relentless pursuit of perfec on.
- Page 3 HXA MONO SPECIFICATIONS HXA1K HXA2K HXA3K HXA4K HXA5K HXA8K HXA12K HXA20K Model Description 1 Channel 0.5Ohm Load @ 14.4V 3500W* 14000W* 1Ohm Load @ 14.4V 1200W 1800W 2400W 3000W 7000W 10000W 10000W 2Ohm Load @ 14.4V 600W 800W 1200W 1600W...
-
Page 4: Front Panel Layout

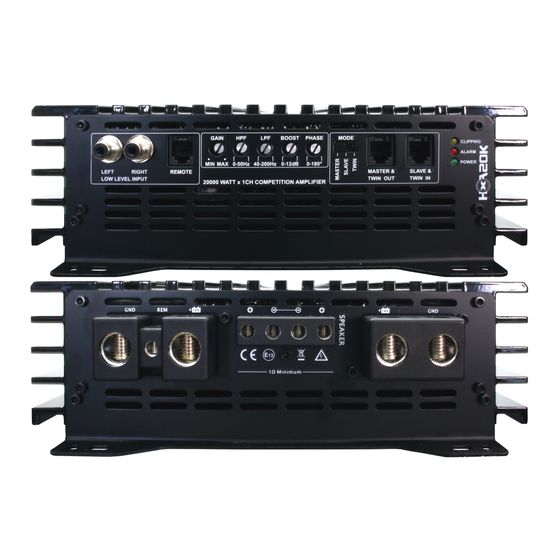

EXCURSION FRONT PANEL LAYOUT GAIN BOOST PHASE MODE CLIPPING ALARM 0-180° POWER LEFT RIGHT REMOTE MASTER & SLAVE & LOW LEVEL INPUT TWIN OUT TWIN IN 20000 WATT x 1CH COMPETITION AMPLIFIER Audio Input These Input jacks connect with your source unit Low Level Outputs. -
Page 5: Rear Panel Layout
WARNING: HXA Amplifiers need external Fuse not less than 12inch (30cm) from Power terminal. Please follow the maximum Fuse recommenda on from Excursion HXA MONO Specifica ons. 15. Speaker Terminals Connect your speaker to these terminals with proper polarity. Minimum speaker cable 10GA, 8GA OFC strongly recommend. -
Page 6: Wiring Diagramm
* Equivalent impedance not less 1Ohm to avoid damages. * We recommend a minimum of 300AH additional 12V AGM * HXA20K provide Double 8 GA +/- Speaker Terminals Battery Storage as close to every HXA20K Amplifier possible. 4Ohm 4Ohm 4Ohm... -
Page 7: Master / Slave Connection
MASTER TWIN Amps using the LINK cable provided in package as shown in the diagram. 4 Connect speaker cable each HXA20K Amplifier in the standard way of an single Amplifier connection. The minimum impedance of each single HXA20K is MASTER & SLAVE configuration the minimum impedance is 2 MASTER &... -
Page 8: Troubleshooting
EXCURSION TROUBLESHOOTING Assure that the Power LED is on, if so please proceed with step # 3, if not, continue with the steps below; Check the in line fuse (s) on the battery’s positive cable, replace if needed. Assure that the Ground is properly attached to the vehichle’s chassis on a clean metal point, tighten or grind the connection point once again. - Page 9 Intl. offers limited warranty on EXCURSION products under normal use on the following terms: EXCURSION Amplifiers are to be free of defects in material and workmanship for a period of one year This warranty applies only to EXCURSION products sold to consumers by Authorizied...
- Page 10 ...is all you need EXCURSION - A Division of CHPW All Rights reserved - Intl. Trademark No: 010 640 597 Friedrich-Ebert-Str. 42 - D-92637 Weiden / Germany EASCA UROPEAN OUND SSOCIATION...
