Summary of Contents for EXCURSION Pro Audio SXA60

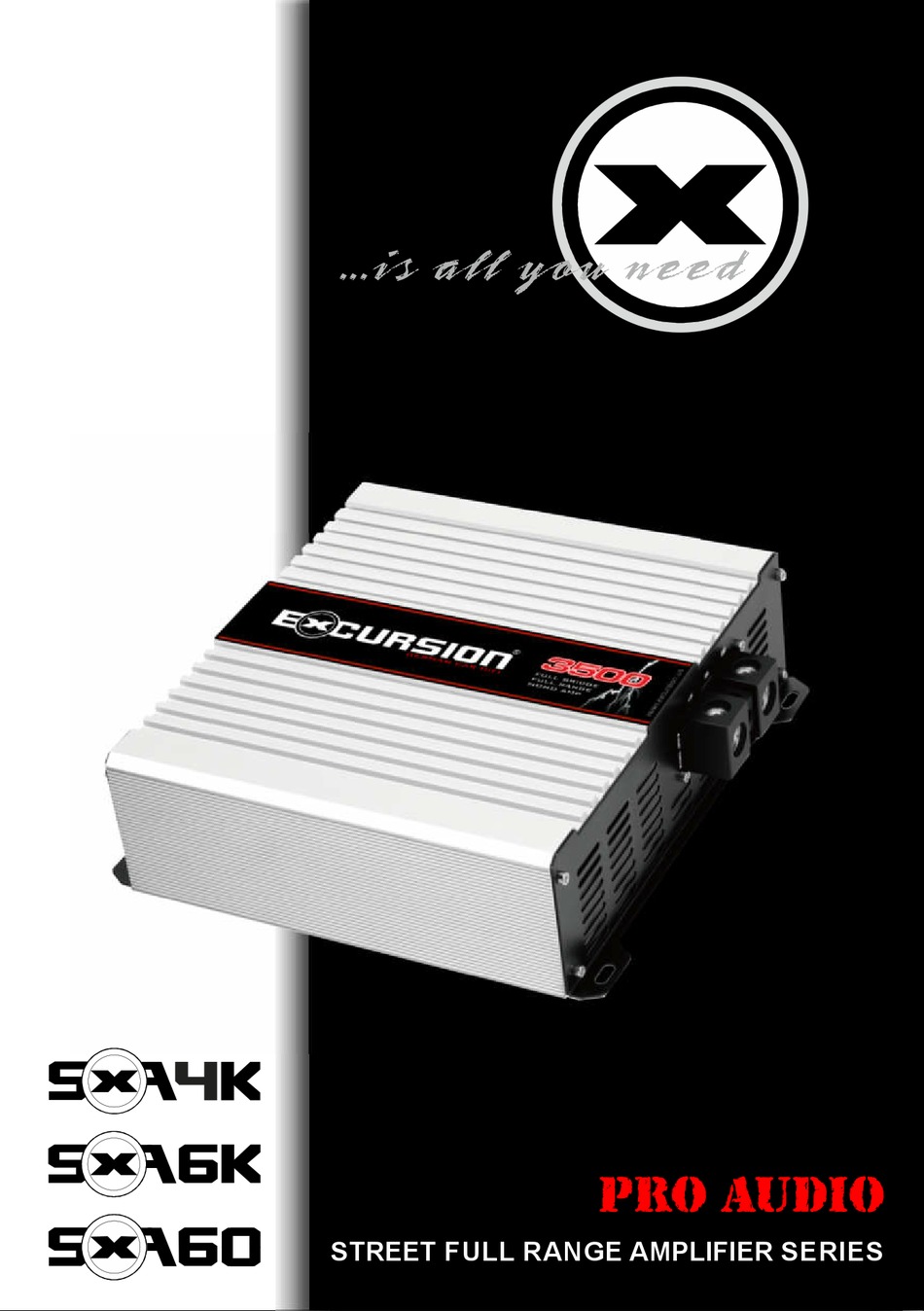

- Page 1 ...is all you need PRO AUDIO TREET FULL RANGE AMPLIFIER SERIES...
- Page 2 CONGRATULATIONS ! CONGRATULATIONS ! You now own an EXCURSION SXA Full Range Amplifier, the product of an uncompromising design and german engineering philosophy. A product made from Car Audio fana cs who truely believe in the relentless pursuit of perfec on.
-
Page 3: Specifications
HXA MONO SPECIFICATIONS FEATURES * Fully 1Ohm stable Full Range Response * So delayed remote Turn On Circuity * Fully microcontrolled Power Supply * Fully adjustable LPF, HPF, BPF Crossover * 12dB fully adjustable Bass Boost Se ng * Military Standard 8GA and 0GA Terminal * External Remote Level Controle included * Overload, Heat, Volt, Short Circuit Protec on * Power / Clip / Alarm LED Status indicators... - Page 4 EXCURSION 1. RCA Audio Input These RCA Input jacks connect with your source unit RCA Low Level Outputs. The use of highquality twisted pair car audio cables is recommended to mind possibility of disturbance the audio signal. 2. GAIN Control The Gain controle will match the amplifiers sensitivity to the provided source unit signal voltage.
-
Page 5: Control Functions
WARNING: SXA Amplifiers need external Fuse not less than 12inch (30cm) from Power terminal. Note: Please follow the maximum Fuse recommendation from Excursion SXA Specifications. Note: We designed 0GA Terminal to fit Hollywood ENERGETIC HPST (MULTE IN) Adapters. 15. Speaker Terminals Connect your speaker or subwoofer to these terminals with proper polarity. -
Page 6: Panel Layout
EXCURSION PANEL LAYOUT INPUT REMOTE SPEAKER BOOST GAIN LEFT 0-12dB 10-1KHz 50-20KHz MIN MAX RIGHT 3500 WATT x 1CH FULL RANGE MONO AMPLIFIER INPUT REMOTE SPEAKER BOOST GAIN FULL 0-12dB 10-1KHz 50-5KHz MIN MAX CLIP 5500 WATT x 1CH FULL RANGE MONO AMPLIFIER... -
Page 7: Wiring Diagramm
WIRING DIAGRAMM * Please verify Performance Status of your Main Battery and replace on demand M A X 30cm GROUND MAIN BATTERY HEAD UNIT Remote Controle (See Front Panel) Remote urn ON/OFF Power RCA IN (See Front Panel) BRIDGE 2 M A X 30cm * Keep Cable Distance between... - Page 8 EXCURSION WIRING DIAGRAMM M A X 30cm GROUND MAIN BATTERY HEAD UNIT * Please verify Performance Status of your Main Battery and replace on demand Remote urn ON/OFF M A X 30cm * Keep Cable Distance between Amplifier and Car Audio AGM Battery as short as possible.
- Page 9 WIRING DIAGRAMM M A X 30cm GROUND MAIN BATTERY HEAD UNIT * Please verify Performance Status of your Main Battery and replace on demand Remote urn ON/OFF M A X 30cm * Keep Cable Distance between Amplifier and Car Audio AGM Battery as short as possible.
-
Page 10: Installation Precautions
EXCURSION INSTALLATION PRECAUTIONS Before you install the amplifier, inves gate your car's layout very carefully. Take special care when you work near the gas tank, fuel lines, hydraulic lines and electrical wiring. Before making or breaking power connec ons in your system, disconnect the vehicle ba ery. Confirm that your head unit or other equipment is turned off... - Page 11 Intl. offers limited warranty on EXCURSION products under normal use on the following terms: EXCURSION Amplifiers are to be free of defects in material and workmanship for a period of one year This warranty applies only to EXCURSION products sold to consumers by Authorizied...
- Page 12 ...is all you need EXCURSION - A Division of CHPW All Rights reserved - Intl. Trademark No: 010 640 597 Friedrich-Ebert-Str. 42 - D-92637 Weiden / Germany EASCA UROPEAN OUND SSOCIATION...
