Data Domain DD620 Storage System

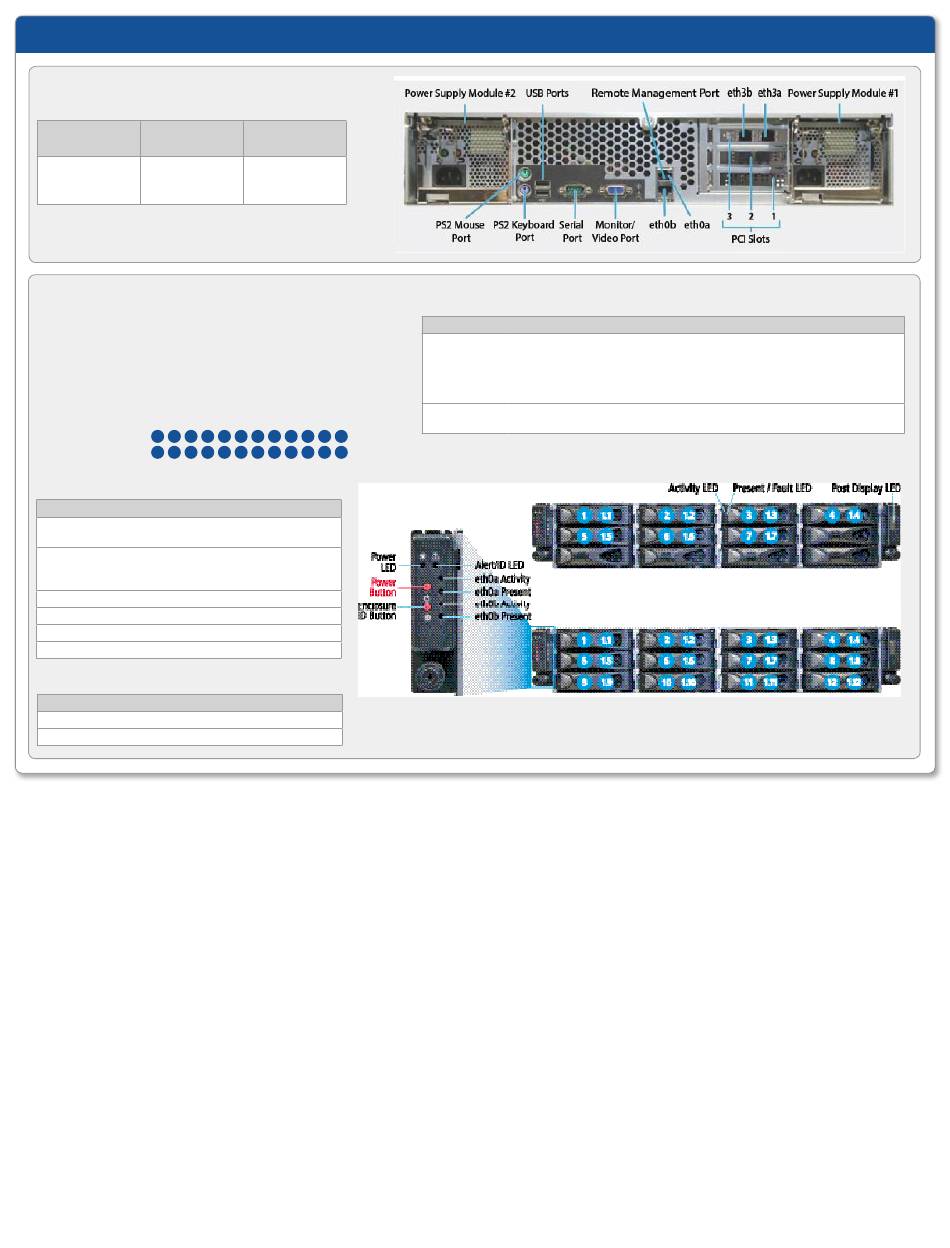

FIGURE 1:
REAR PANEL AND INPUT/OUTPUT CONNECTIVITY
Slot 3 Slot 2
PCI-e x8 (x16 conn) PCI-e x8
1 Gb Ethernet VTL (optional) or
(optional) 1 Gb Ethernet
copper or fiber copper or fiber
FIGURE 2:
FRONT PANEL AND DISK LOCATIONS
The DD620 has either seven or twelve hot-swappable 1 TB disk
drives, depending on configuration. Disk drive carriers are numbered
left to right and top to bottom, as shown in the illustration.
Unused drive slots contain blank carriers.
Hot-swappable disks
Physical location:
1 2 3 4
Logical numbering:
1.1 1.2 1.3 1.4
Front Operator Panel LEDs
LED Status
Power Steady Green: System power is on
Off: System power is off
Alert/ID Steady Blue: No alert
Blinking Amber: Alert
Blinking Blue: ID button has been pressed
eth0a Activity Blinking: Activity
eth0a Present Steady: Present
eth0b Activity Blinking: Activity
eth0b Present Steady: Present
Post Display LEDs
LED Status
Number Error code
LED is unlit Normal
Slot 1
PCI-e x8
NVRAM
5 6 7 8 9 10 11 12
1.5 1.6 1.7 1.8 1.9 1. 1 0 1. 1 1 1. 1 2
Front Operator Panel Buttons
Push Button Definition
Power Press Power button to turn on system power when the Alert/ID LED is blue.
If the blue LED is not lit within one minute after AC power is applied to the power
supplies, please contact Support (see contact information at the end of this
document).
Never shut down the system by pressing the Power button.
Enclosure ID Press the Enclosure ID button to light a blue LED in the front and rear to ID the
chassis in a rack.
DD620 with 7 Disk Drives
DD620 with 12 Disk Drives
